Installation Data
UNIT LIFTING 
Employ lifting specialists.

Local codes and regulations relating to the lifting of this type of equipment should
be observed.

Use the lifting eye bolts/lifting lugs provided.

Attach lifting chains to the 4 lifting eye bolts/lifting lugs provided, each chain and eye
bolt must be capable of lifting the whole chiller.

Use the appropriate spreader bars/lifting slings with the holes/lugs provided.

Lift the unit slowly and evenly.

If the unit is dropped, it should immediately be checked for damage and reported to
Airedale Service.
CAUTION Only use lifting points provided.
The unit should be lifted from the base and where possible, with all packing and
protection in position. If any other type of slinging is used, due care should be taken to
ensure that the slings do not crush the casework or coil.

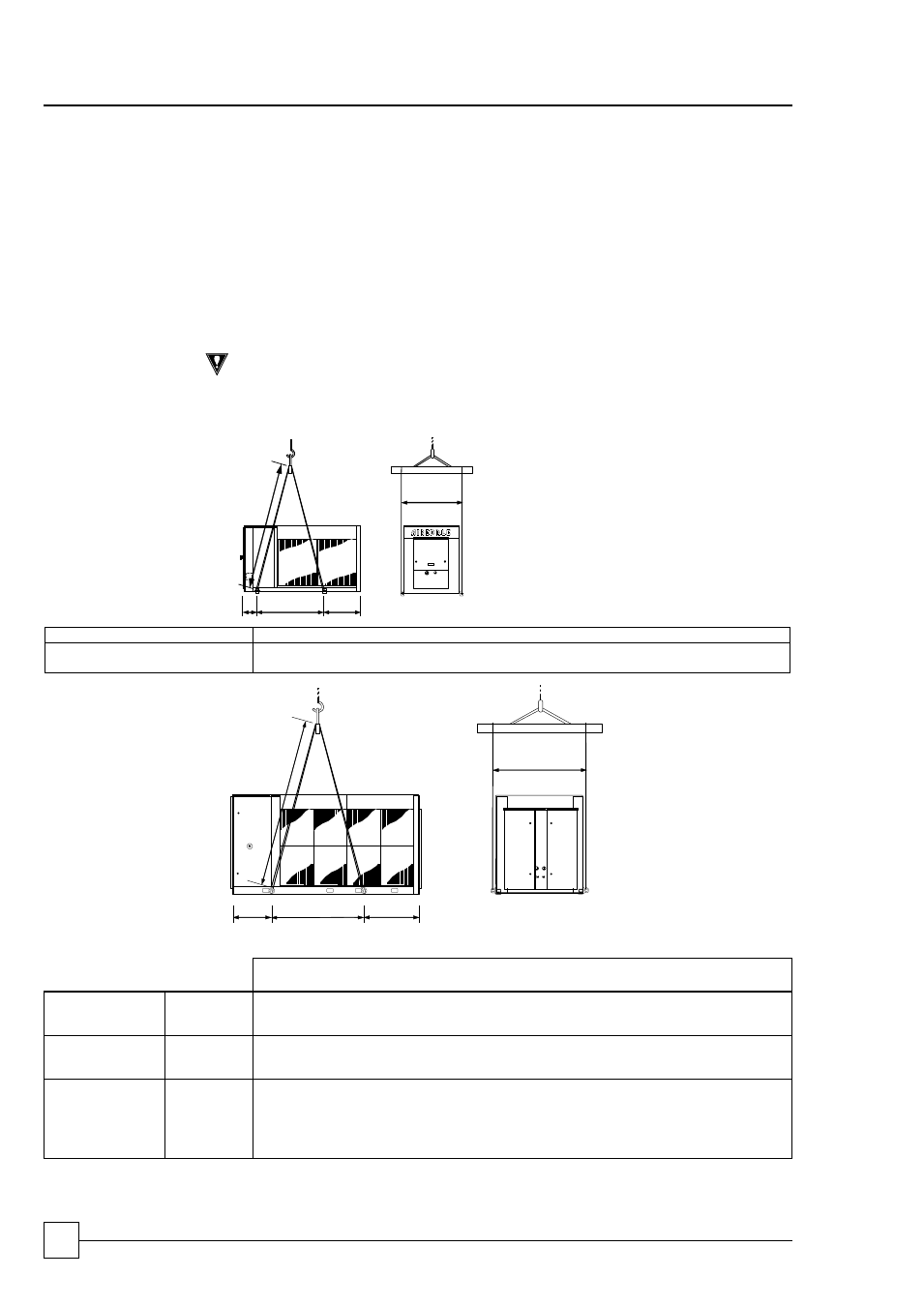

LIFTING DIMENSIONS
A C B
E
D
UCCU30 - 80 (Except UCCU75) A B (1) C (1) D (1) E
1 FAN /1 mm 300 1050 (1450) 300 (300) 1900 (2200) 1270
2 FANS /1 mm 300 1450 750 2200 1270
E
A B C
D
UCCU75 - UCCU450 (Except
UCCU80)
A B C D E
75, 100, 125 & 150
..-2/1 mm 290 1900 585 2500 1450
..-3/1 mm 290 2015 1320 2500 1450
..-4/1 mm 290 2870 1315 3000 1450
110, 130 ,160 ,180,
200, 225 & 250
..-4/2 mm 180 1580 605 2500 2000
..-6/2 mm 595 1650 925 2500 2000
..-8/2 mm 595 2050 1330 2500 2350
275, 300, 330, 360,
400 & 450
..-8/2 mm 465 2560 1625 3000 2350
..-10/2 mm 465 3135 1900 3500 2350
..-12/2 mm 465 3610 2275 3500 2350
..-14/2 mm 465 4385 2350 4000 2350
..-16/2 mm 465 5035 2550 5000 2350
