West Control Solutions KS 800 Operating Instructions User Manual
Page 11
Multi-Temperature-Controller KS 800
4.3
Galvanic isolations

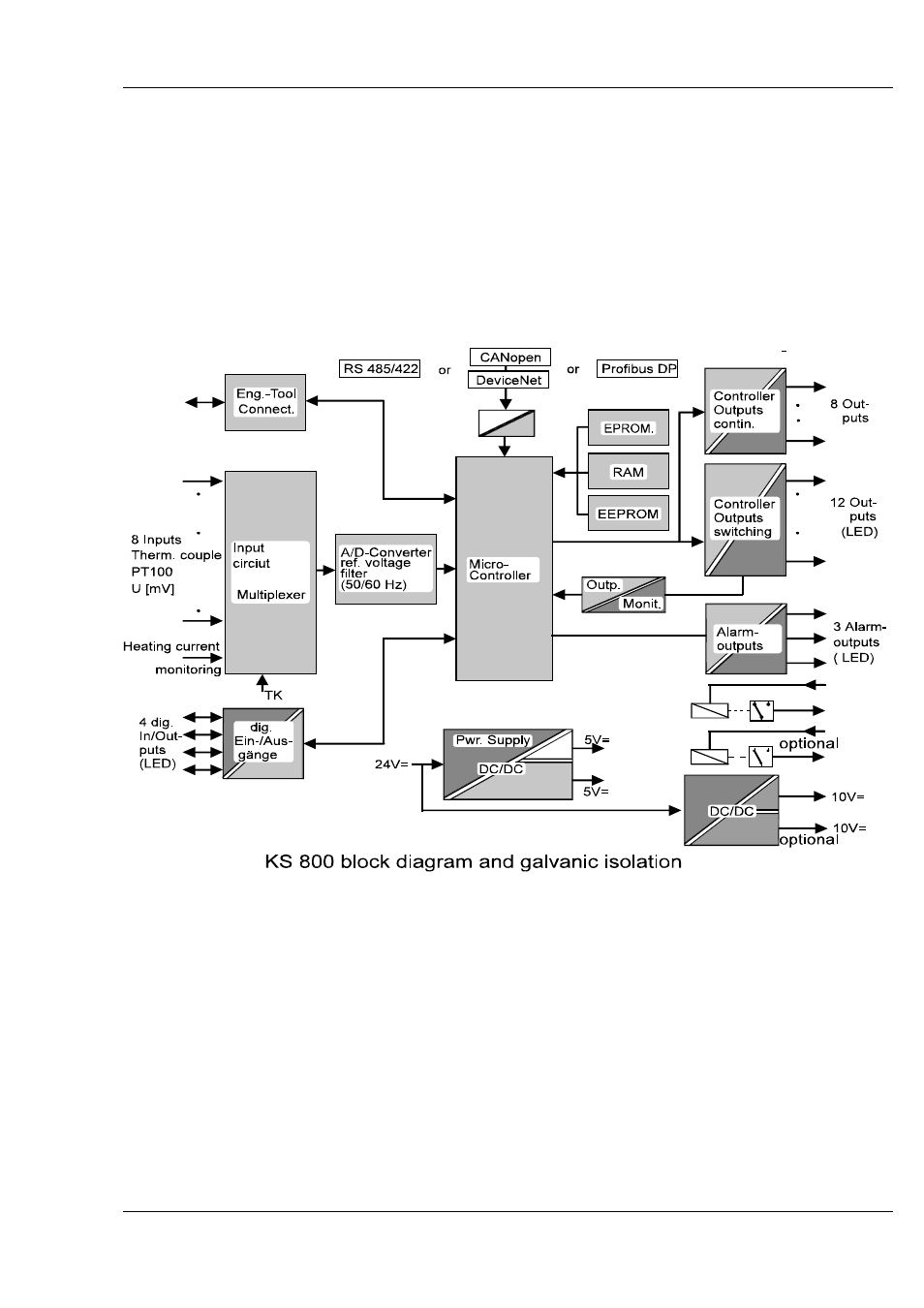

The galvanic isolations of KS 800 are shown in the following diagram.
Identical block shading means that blocks are galvanically connected.
I.e. all outputs are galvanically connected, but isolated from inputs and microcontroller (controller).
All inputs are also galvanically connected.
An exception are the digital inputs/outputs, which are connected with controller outputs (and supply
voltage) independent of their configuration.
9499 040 49111
11
