2.3 The Instrument View Panel (Left Panel)
The Instrument View Panel on the left of the screen displays all connected transmitters
within range, each represented by their unique ID number. A pop-up menu appears
when you click on a transmitter icon (Figure 14).

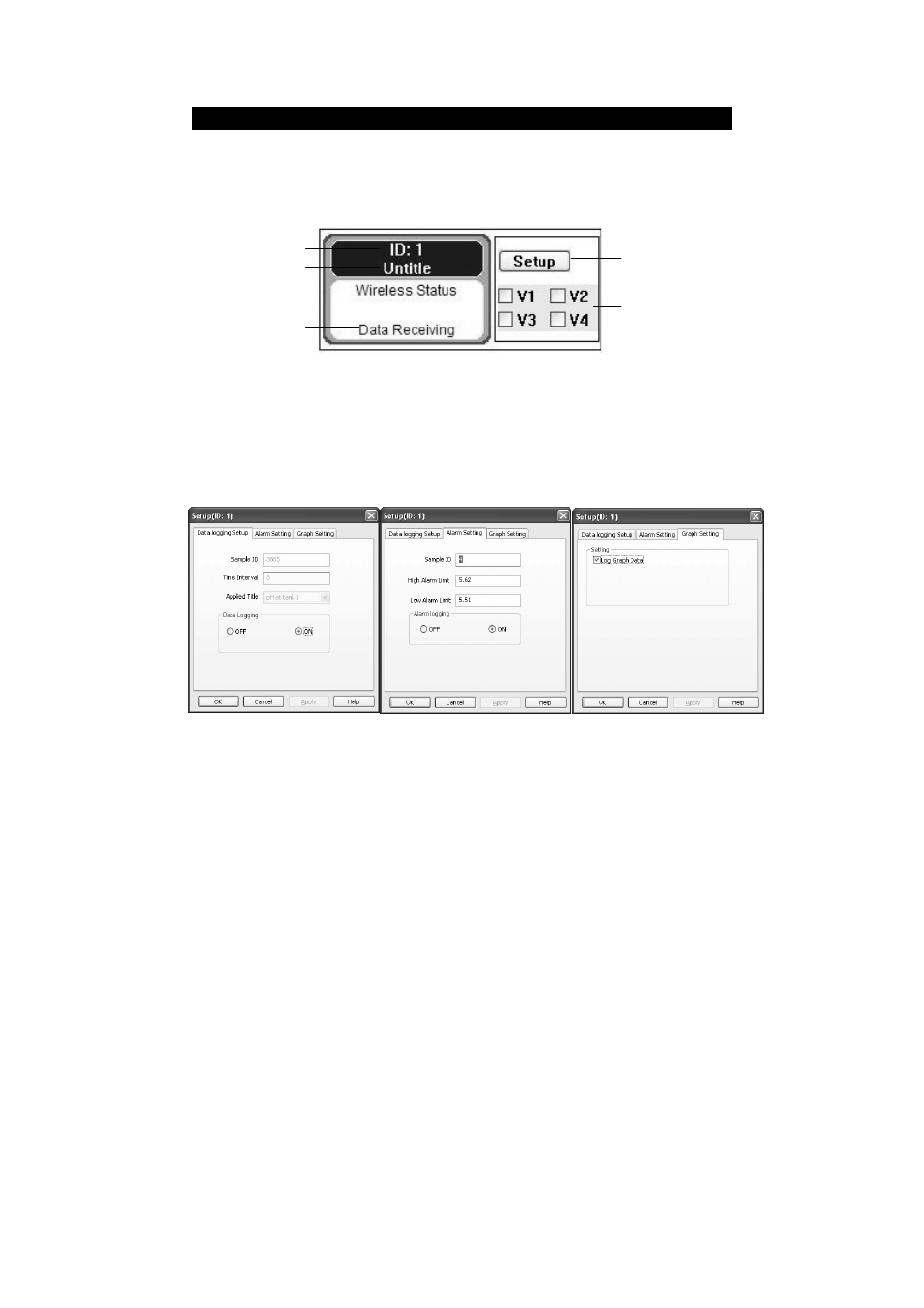

Figure 14 : Transmitter icon in the Instrument View Panel
Setup Button
The set-up button allows you to customise the data logging, high/low limit alarm and
graphical logging set up for each transmitter.
Figure 15 : Set-up Menu
1. Setup Button for
customisation of
transmitter settings
2. To view the data of
a transmitter, simply
click on the Transmitter
icon and check V1, V2,
V3 and/or V4 to display
its data in the Reading
View Panels
3. Unique Instrument ID
4. Caption. This can
only be customised in
the Reading View Panel
(Main Panel)
4. Status of transmission
