Instruction Manual COND 6+, TDS 6+, SALT 6+
-4-

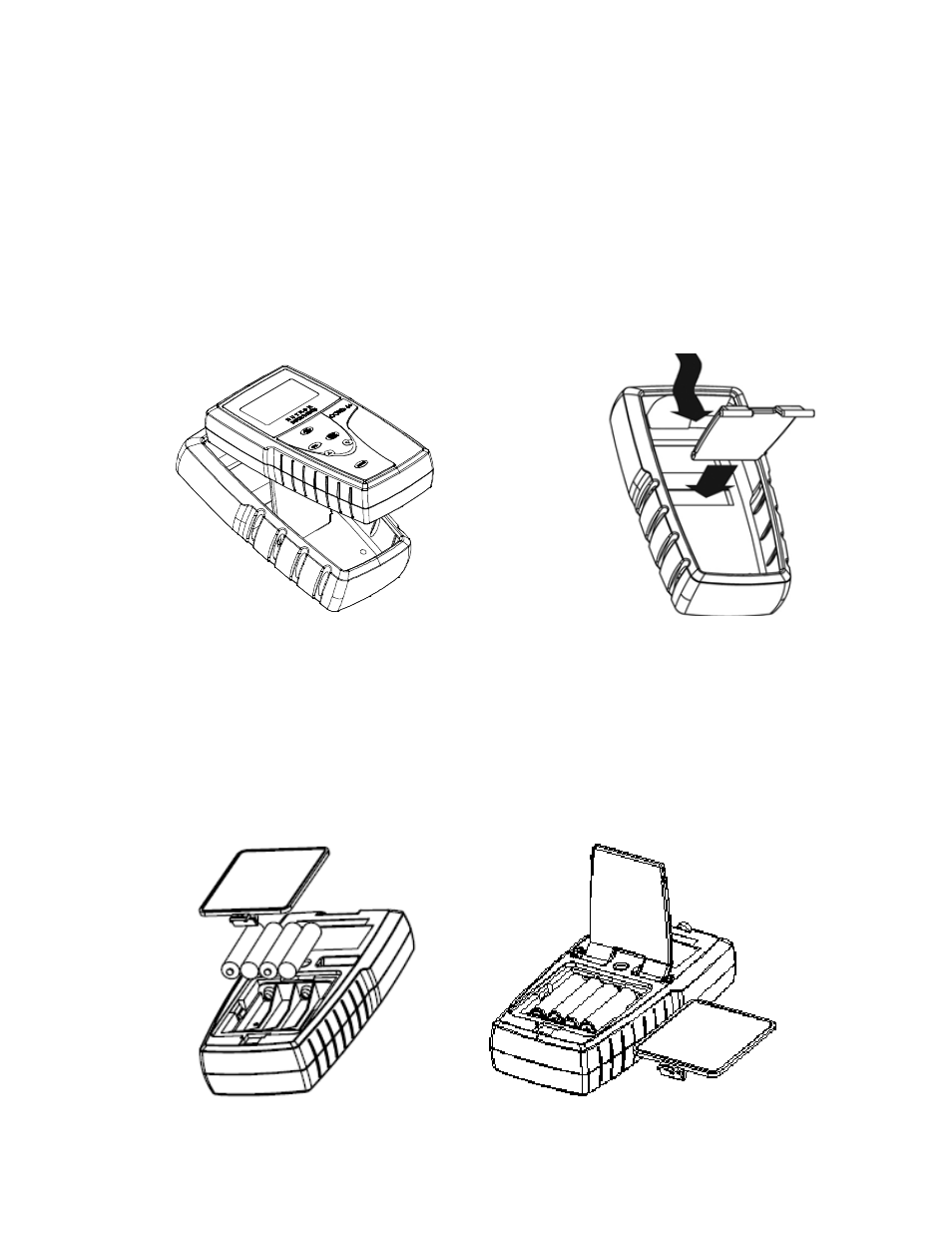

2.3 Inserting & Removing the Rubber Armour / Stand
1. To remove meter from rubber armour, push out from the bottom edges of meter until
it is completely out of boot. Ensure that your electrode cables are not connected.
Figure A.
2. To insert meter into armour, slide in from the top of meter before pushing the bottom
edges of meter down to set it into position. Lift up the stand at the back of meter for
bench top applications if necessary. Figure B.
2.4 Inserting New Batteries
The battery compartment is found at the back of instrument. To open the battery
compartment, push in the direction of arrow and lift up the cover. Note the polarity of
battery before inserting into position. After replacement, place cover back and press
down until it locks.
Figure A Figure B
