Mini (4 x 32mm) tube assembly (FHB41 and FHB43)
The mini tubes must be used in the FHB61 multi-tube holder. Unscrew the end cap of the tube. Place
the filters and the liquids appropriate to the protocol in the tube and replace the end cap. Fix the tube
into a multi-tube holder, using the springs, and ensure that there are four tubes in the holder. The end
caps must be as shown, on alternate ends. The multi-tube holder will not rotate properly if there are
not four mini tubes in it.

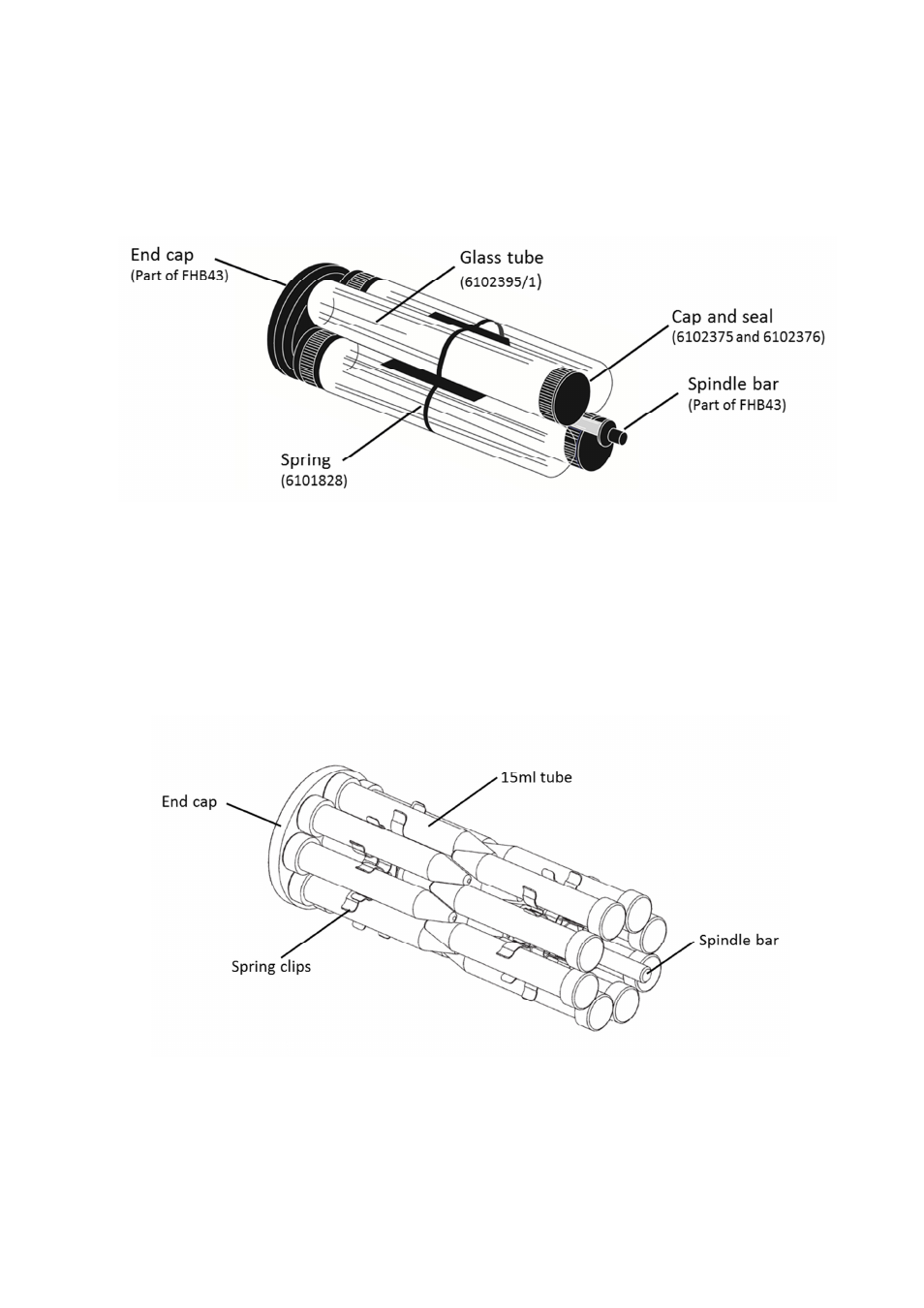

4 x FHB41 and FHB43 assembly
16 x 15ml tube assembly (F15ML1TH) and 8 x 50ml tube assembly (F50ML1TH)
These tube holders are designed to hold 15ml and 50ml Falcon-type tubes. Unscrew the end cap from
the tube. Place the filters and the liquids appropriate to the protocol in the tube and replace the end
cap. Assemble the tubes into the multi-tube holder using the spring clips to hold them in place. The
multi-tube holder will not rotate properly if it is not balanced properly. The multi-tube holder should be
filled completely or at least balanced even if all the tubes are not being used.
F15ML1TH assembly
