- 7 -
In low luminance environment, the accuracy is down of the result.
In very low luminance environment, operation is not be performed.
It is not be performed when moving object is exist.
1) Cam Info : Camera basic information display
Cam ID/Baud rate/Protocol/Firmware Ver./CCD Type/Lens Type
2) General Setup
 System Lock : Configuration Lock.
 When system lock is set to “Lock”, User must to input 4-character password to
enter OSD menu.
Default password is “0000”.
 Change PID : Change the administrator's password
 Move cursor with OSD Key and Press Enter to input the character.
 Comm(RS 485 Communication) : Press the Enter button to access the Comm.
 Cam ID : Select the camera ID (001 - 255).
 Baud Rate : Select serial communication speed (2400/4800/9600/19200).
 Protocol : RS-485 protocol. (COMMAND/FASTRAX/PELCO-D/Pelco-D)
 Title : Edit camera title.

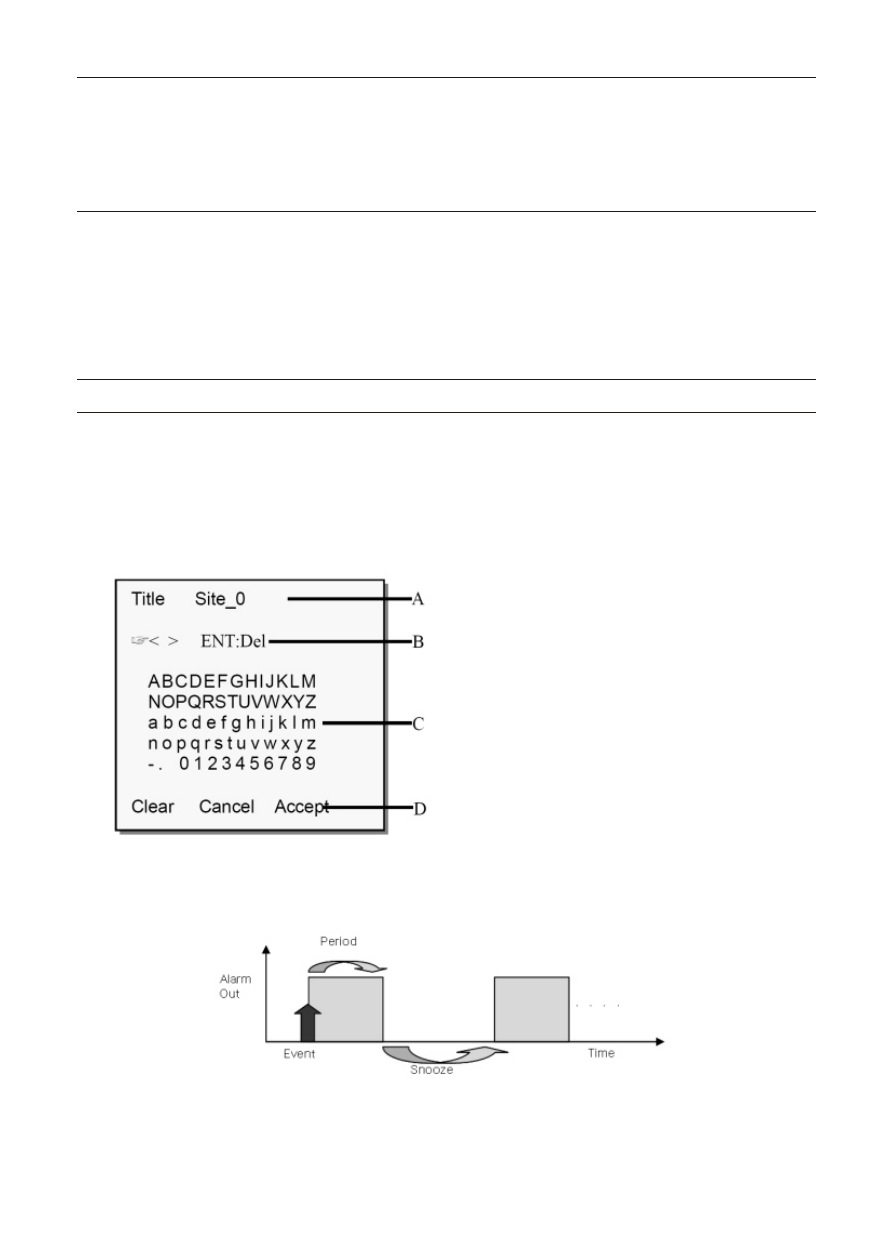

A. Title
B. Delete character
C. Character table
D. Command line
- Clear : Clear Title
- Cancel: Cancel editing
- Accept: Save Title
 Display : Display item select.
 Cam ID : Camera ID display On/Off.
 Title : Title display On/Off.
 Alarm .
 Period : Alarm out period (5sec/10sec/20sec/30sec/1min/5min/Cont.)
 Snooze : Alarm out snooze(Off/5sec/10sec/20sec/30sec/1min/5min)
 Active pol : Alarm output active state configuration. (Low, High)
