- 6 -

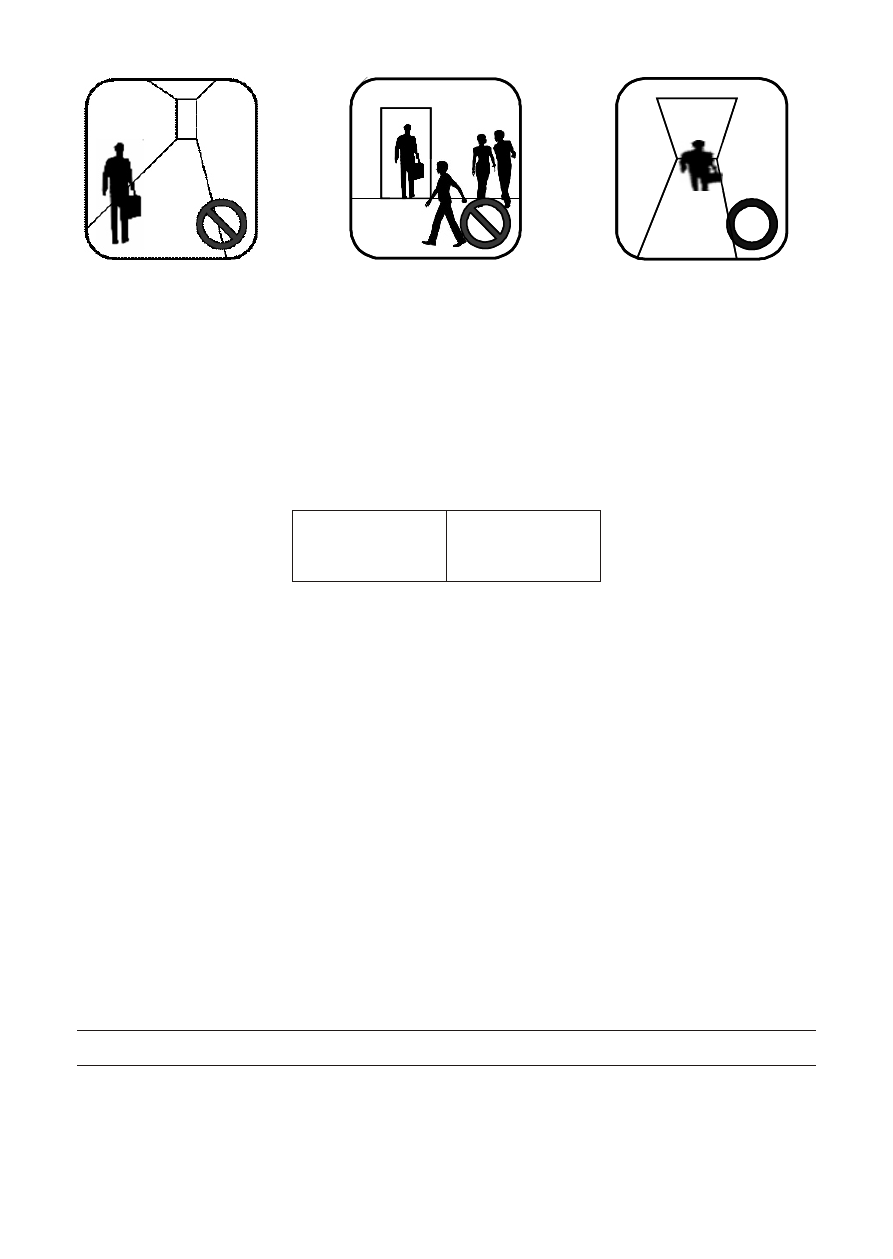

The distance is too long Several Object
Crossing Object
Camera Installed at the ceiling
Crossing object is none
One object is passing.
1) Sharpness : Adjust sharpness of outlines (0~15)
2) Resolution : Select high resolution mode (Low/Mid/High)
3) 2D-NR : Select 2D noise reduction level (0~6)
2D-NR : Noise reduction on a frame
4) 3D-NR : Select 3D noise reduction level (0~31)
3D-NR : Noise reduction through the several frame
5) DNR Demo : Select DNR Demo Display On/Off using the Left and Right Buttons
None DNR Effect
Display
DNR Applied
Display
1) d-Effect(Digital Effect) : Select digital Flip/Rotate state (Off/Rotation/Mirror/V Flip )
2) Nega : Select negative color state(on/off)
3) d-PTZ (Digital Pan, Tilt, Zoom) : Adjust d-PTZ.
 Func : Press the Enter button to turn digital zoom on/off.
 Zoom : Use the Left and Right buttons adjust to digital zoom(0-255).
 Pan&Tilt : Press the Enter button to access the Pan&Tilt.
 Use the Left and Right buttons adjust to digital pan
 Use the Up and Down buttons adjust to digital tilt
 Press the Enter button to exit.
 PT Reset(Pan & Tilt Reset) : Press the Enter button to reset digital pan and tilt.
4) Freeze : Select the still mode on/off
5) Frame Control: Select term of refresh rate for output video. This function is useful to
reduce the recording data storage.
 Func : Select frame control mode to ON/OFF, and Auto.
 Auto mode : When motion is not detected, output video is being refresh in
configured interval. And when the motion is detected, output video is switched
to real time video.
 ON : Always refresh in configured interval.
 OFF : Always real time video.
 Renewal(sec) : Select an interval between two frame.
When object start moving, The output video possible to cut a little time.
6) ScnChg/Unfoc : Select scene change/unfocus detection On/Off .
 Inform that whether scene have been changed or not. Detect breaking or changing in
the watching scene (Spray, Screen Camera, Changing Scene…)
This function is linked with alarm out
