Chapter 2.
Installation and Configuration
2.1 Package Contents
The package contains the following.
PTZ Dome (Dome camera) 1
Instruction manual (This document) 1
RS-485, ALARM IN, POWER IN connector 1
Accessory kit for installing PTZ Dome 1
Template sheet 1
Safety wire 1

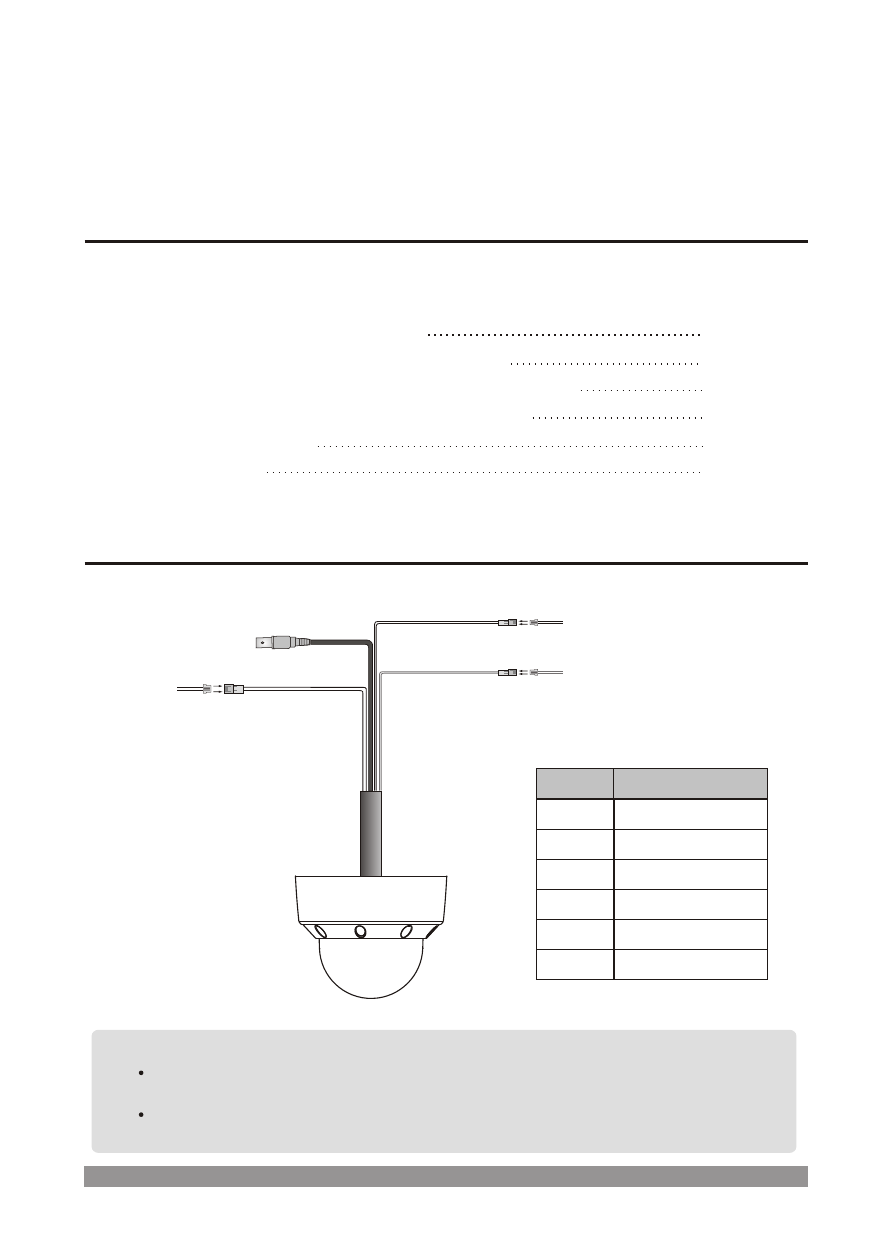

2.2 Base Installation
VIDEO OUT
RS-485 (2P-connector (Black))
To RS-485 connecting unit
To SENSOR
ALARM IN (2P-connector (Blue))
POWER IN (3P-connector (Red))
AC 24V/DC 12V
COMPOSITE CABLE
Note: When wiring, note the following:
For the RS-485, ALARM IN cable, insulate the bare conductor part not to be
exposed after wiring.
For the video cable, keep the BNC connector (metal part) away from any other
metal material.
Connection Cable Description
COLOR
BLACK
BROWN
RED
ORANGE
BLUE
VIOLET
DESCRIPTION
485 (+)
485 ( )
AC24V / DC12V
AC24V / DC12V
ALARM COMMON
ALARM IN
-
3
