2.3 Heater kit Installation (option)
HEATER (IF APPLICABLE)
Use Certified/Listed Class 2 power supply transformer only.
POWER
Power Supply
Power Consumption
Heater ON
Heater OFF
24VAC / 12VDC
20W / 10W (heater on)
o o at 41 F (5 C)
o o at 59 F (15 C)
Heate r
J3 J1
SW1

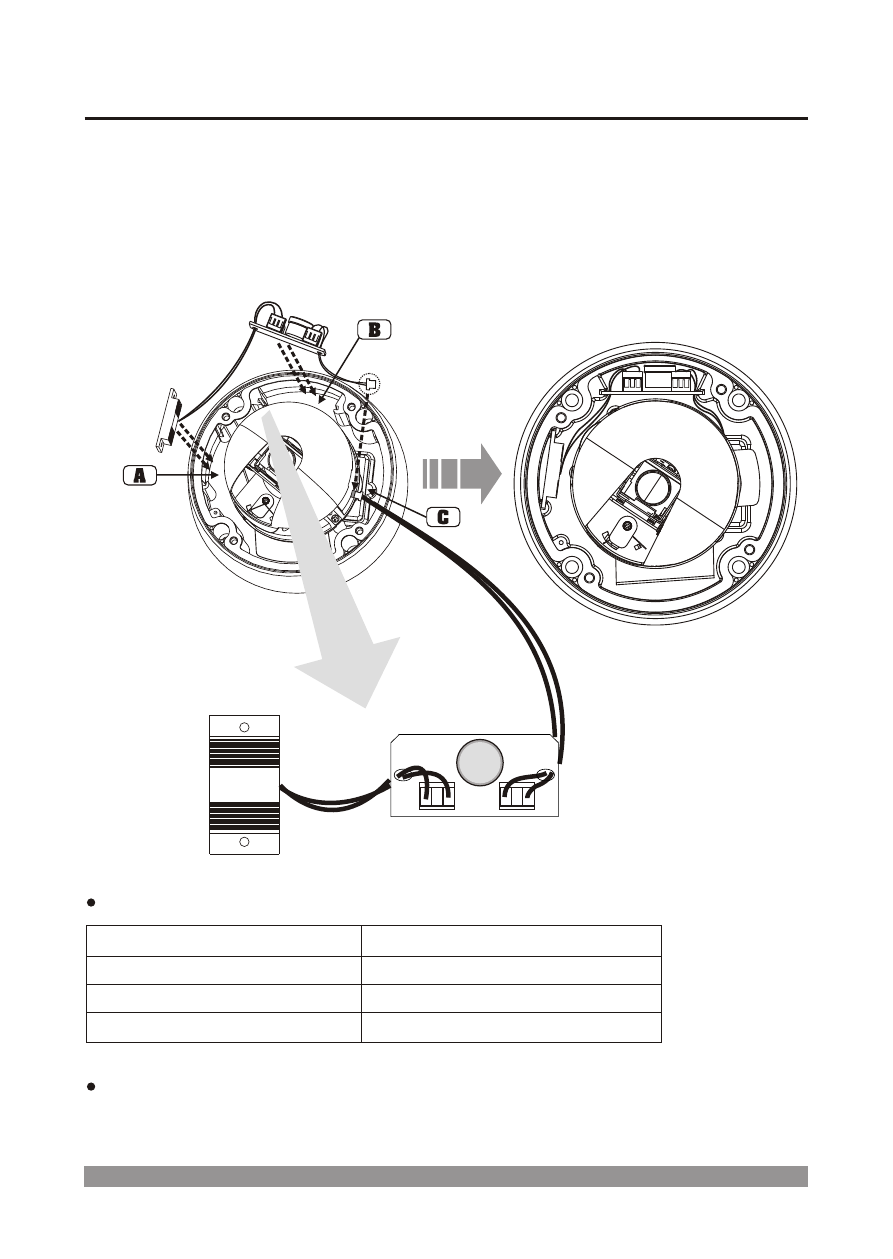

1. Place the Heater element in slot "A". Please ensure that the cables
are facing upwards and the heater is pointing towards the Dome.
2. Place the PCB in slot "B". Please ensure that the PCB is facing away
from the Dome with the connection blocks at the top.
3. Place the plug in the Socket "C" (J701) which is found on the main
PTZ board.
