10-1 MAIN MENU
Figure 20

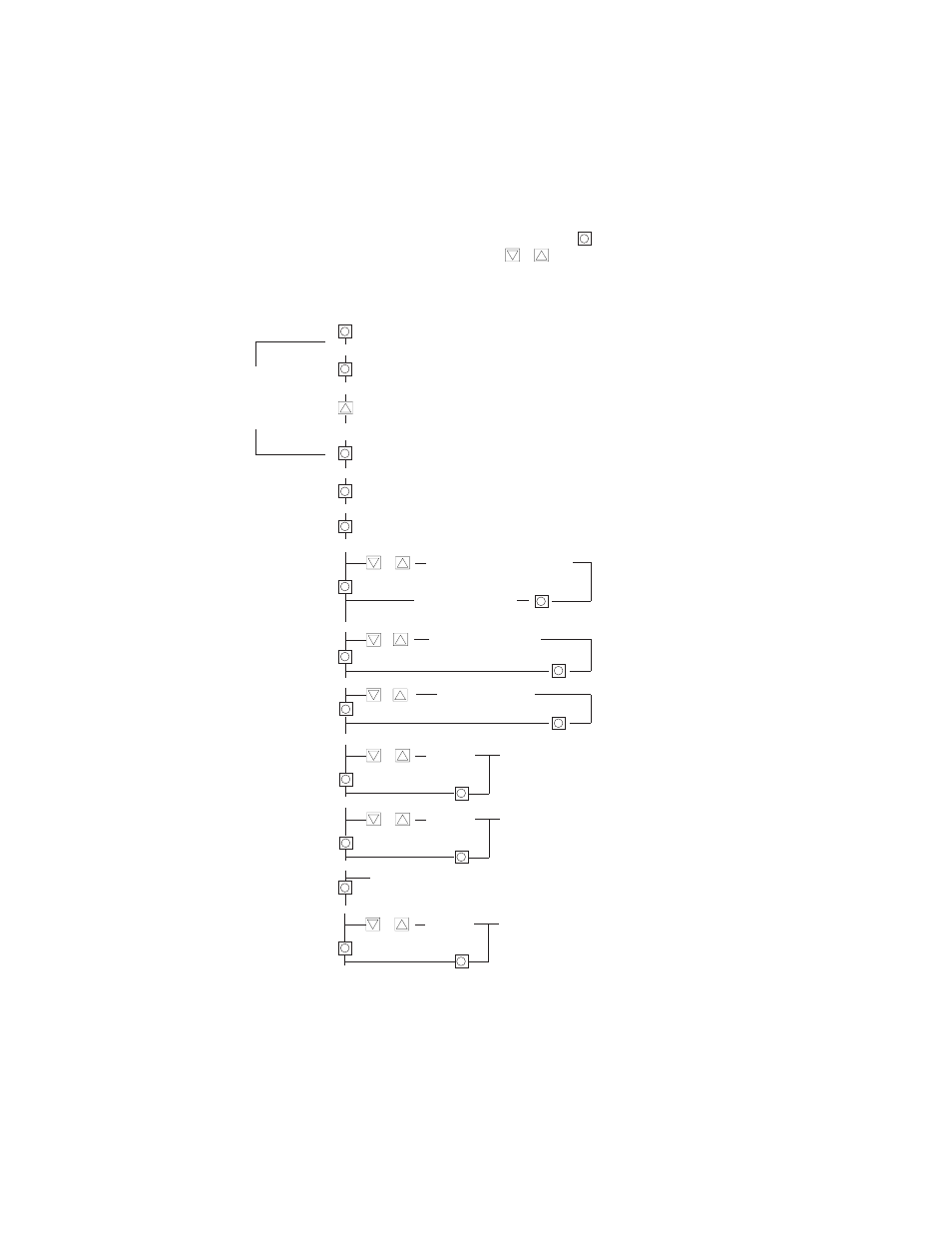

Below is a block diagram showing the basic menu program. Specific menu breakdowns
are described on the following pages. The middle button is used as the enter key.
This will move you through the program. The buttons allow you to view and
change variables to the program. Please note, to eliminate changes made, simply
disconnect power before you come to the PWRD YES/NO prompt.
Page 10
or
or
or
or
or
or
ENTER PSWD
000
028 PASSWORD
TO PASSWORD
DISPLAYED
MENU
SNSR
J K T....PRESENT INPUT TYPE
TO SCROLL THROUGH INPUT
TYPES
DP
TO CHANGE DECIMAL
RETURN WHEN
AT DESIRED INPUT
UNIT
TO CHANGE F / C
RLY 1
YES / NO IF YES, SEE FIGURE 21
IF NO
RLY 2
YES / NO IF YES, SEE FIGURE 21
IF NO
IF CALIBRATING, SEE FIGURE 24
PWRD
YES / NO IF YES, SEE FIGURE 23
IF NO
CAL
WAIT
V3.1
PRESENT
DISPLAY
..
..
This Portion
Not Applicable
If Password Is Off
(028 is Universal Password)
