REMOVING THE
REFLECTORS




The reflectors can be removed from the Model 4069 Heater to make cleaning and
maintenance easier. The following procedure should be used to remove the Model
4069 reflectors:


Note:
Remove all power from the heater BEFORE attempting to install/replace the
heater reflectors.

1. Drain all cooling fluid from the heater and blow out the heater cooling lines

with compressed air.

2.

Remove the heater-cover screws and heater cover.

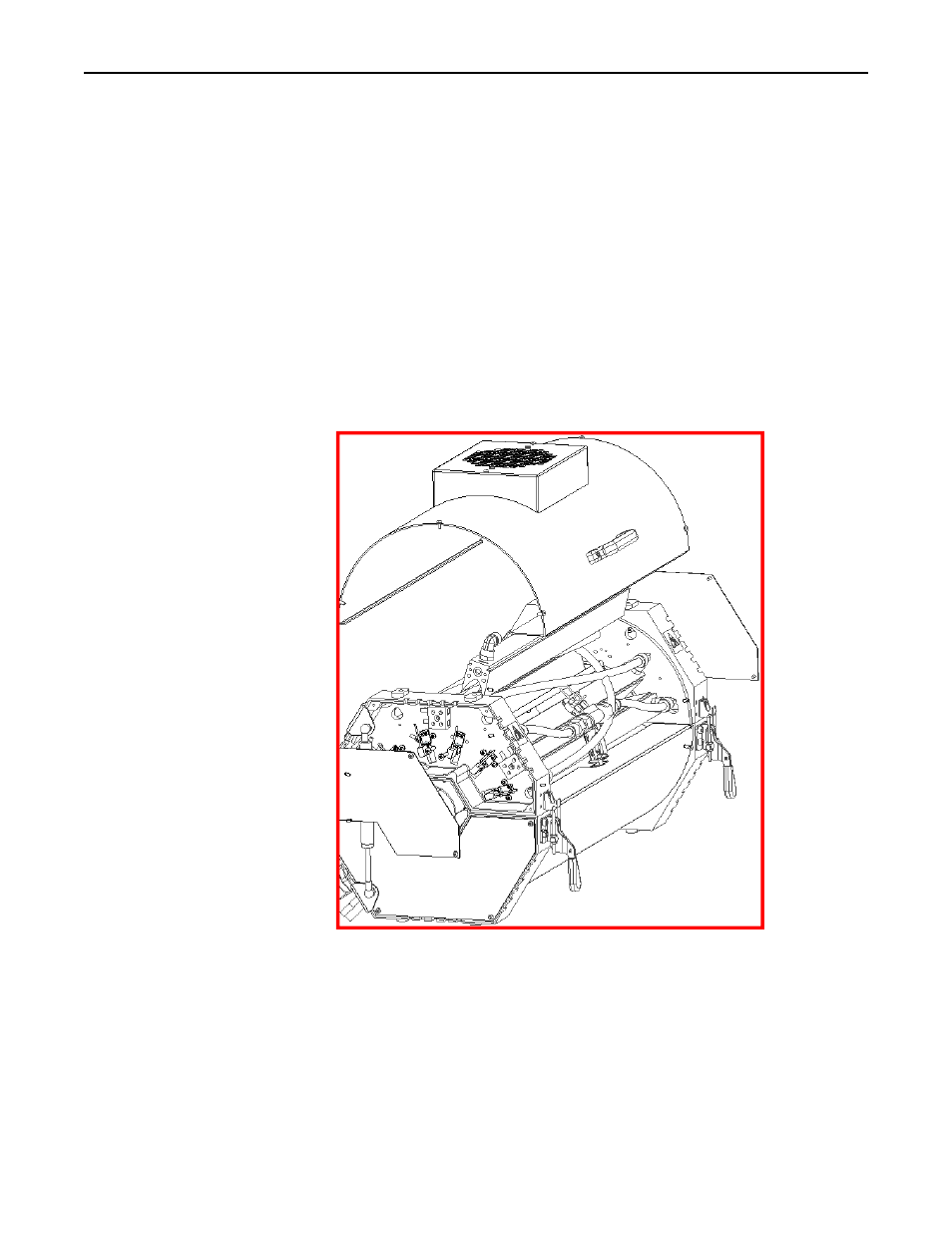

Figure 10
