Model 4069 ProfileIR
TM
User Manual
Operation
Research, Inc.
13
PANELVIEW
TERMINAL

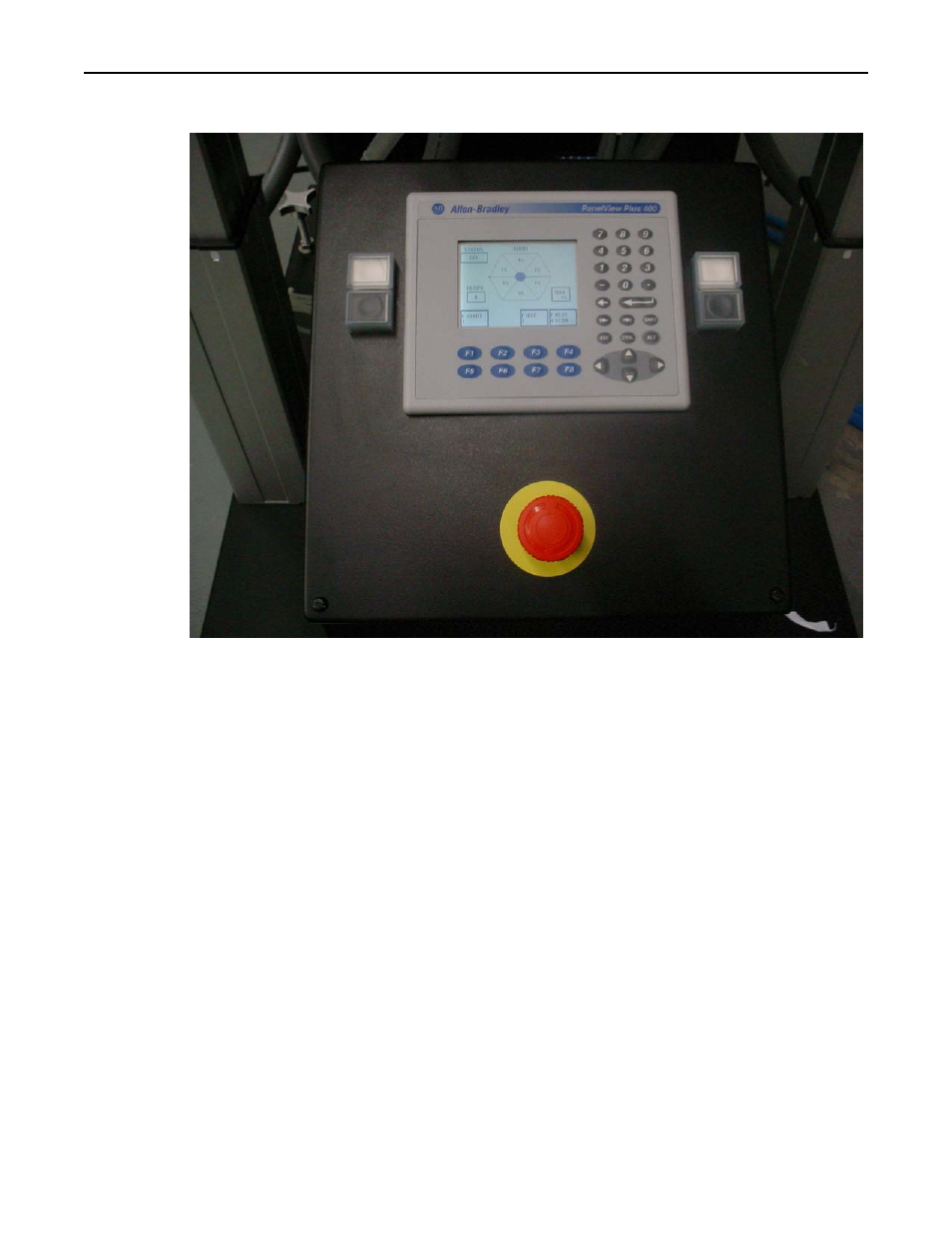

The PanelView terminal consists of a LCD display with keypad. 4
user screens are available: MAIN, RECIPE, ALARM, and OPTION.
The selection of the screens are made with the F4 (NEXT SCREEN)
key and the F5 (Previous Screen) key. The F5 key does not have a
legend displayed on the screen.
Note: The PanelView terminal is not a touchscreen, legends are
displayed to guide the operator. All entries are made from the keypad.
