Model 4069 ProfileIR TM User Manual Operation
Research, Inc. 16

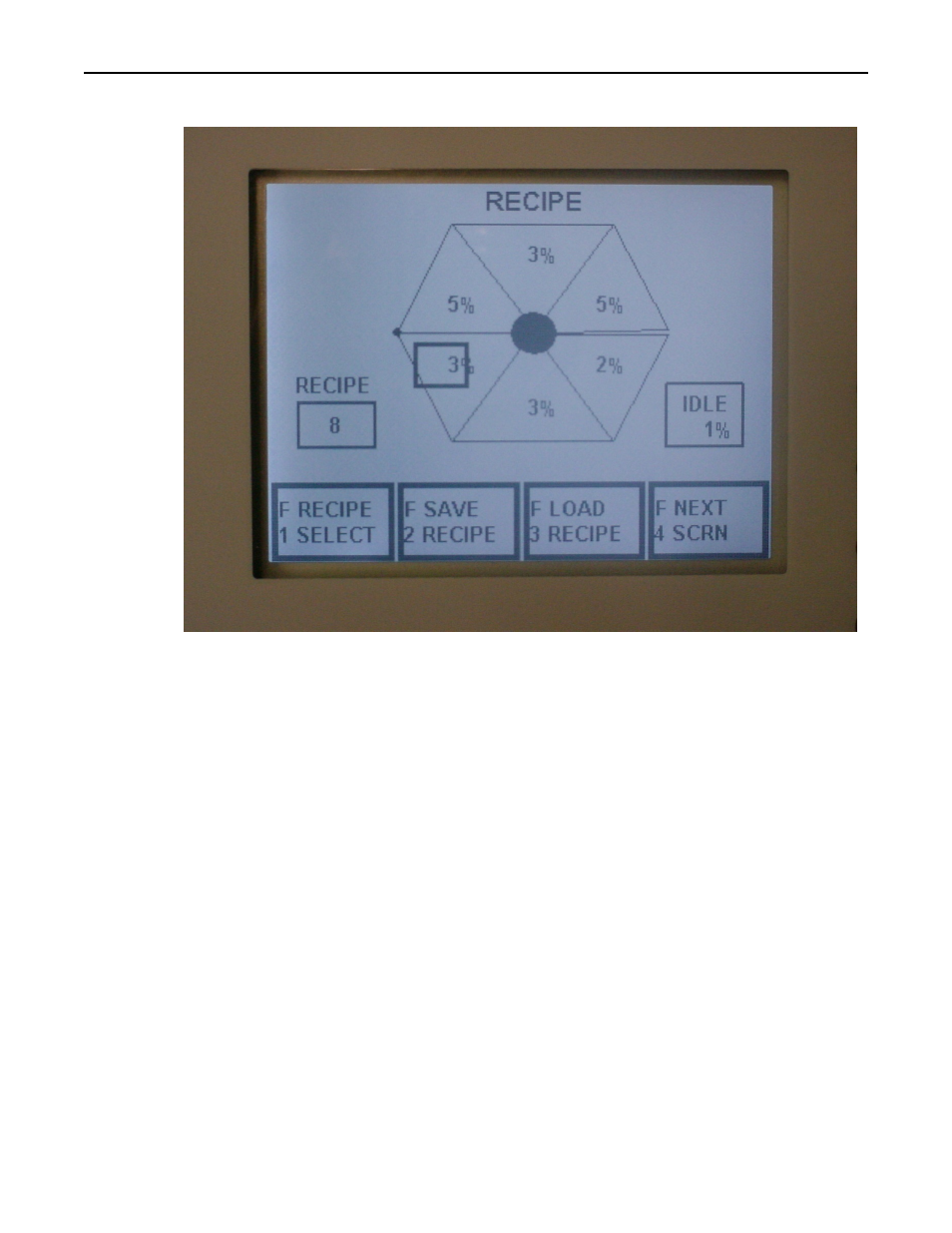

RECIPE SCREEN
The RECIPE screen allows recipe selection, loading, creation or
modification, and saving of up to twenty recipes.
Recipe Selection The F1 key (RECIPE SELECT) will step through
the recipes from 1 to 20 and wrap back to 1. The zone power levels
and idle power level will be displayed as each recipe appears on the
screen. The F5 key is does not have a legend displayed, but it will
select the previous recipe.
Note: The RECIPE SELECT key is not displayed or available while in
the RUNNING mode. Only the current recipe may be modified at this
time.
Recipe Loading The F3 key (LOAD RECIPE) will take the selected
recipe and load it into active memory and change the display to the
MAIN screen, to allow the recipe to be run. Only after a recipe has
been loaded, can it be run.
