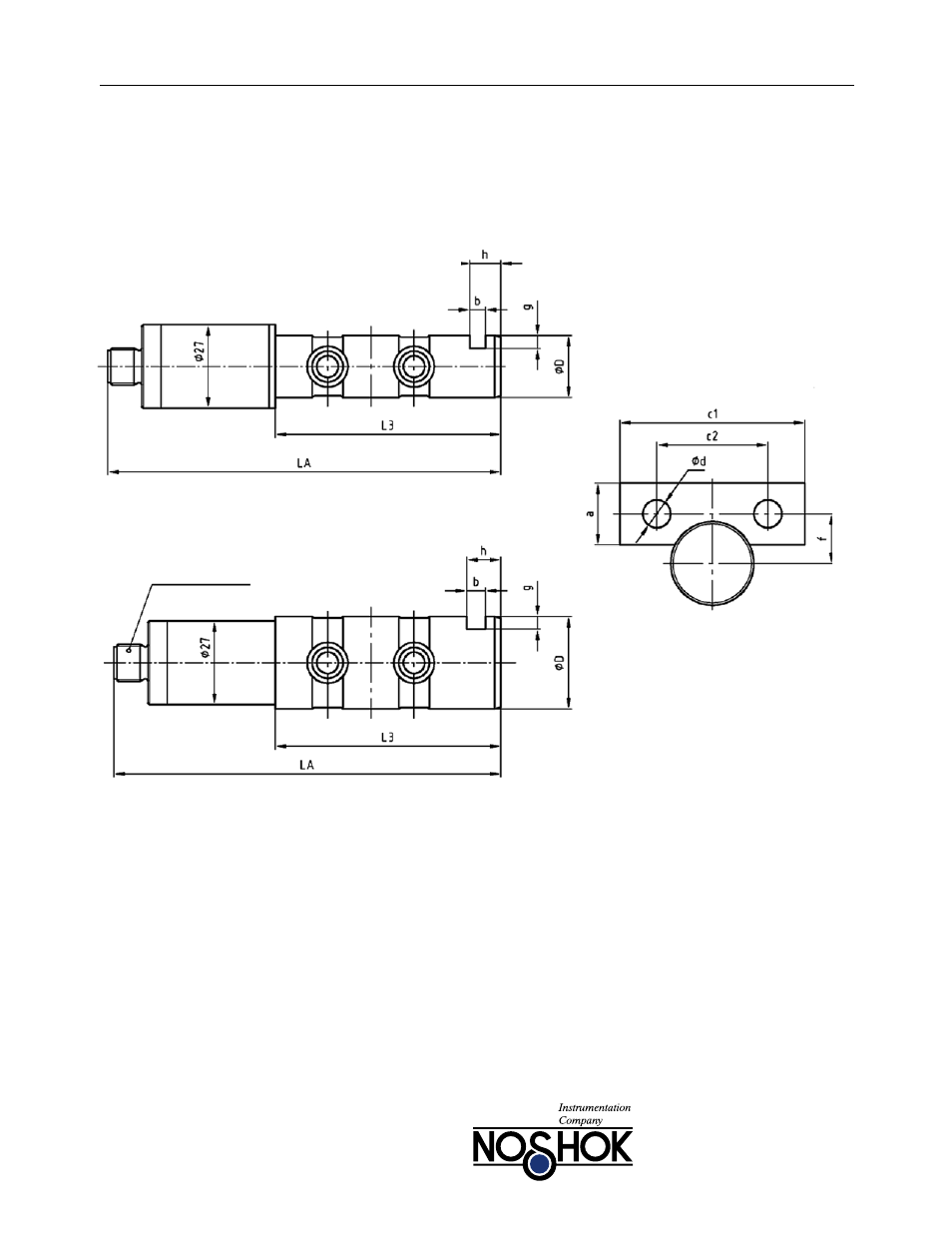

Load pin, dimensions
For two-sided measuring axle mounting the following applies:
Bohrung-/Bolzenpaarung: H9/f9
** Other bolt diameters available on request, drill hole tolerance H9
Axle bracket in acc.with DIN 15 058
(not included in scope of delivery)
Plug M12x1
Version up to 10 kN
Version from 20 kN
