2.3

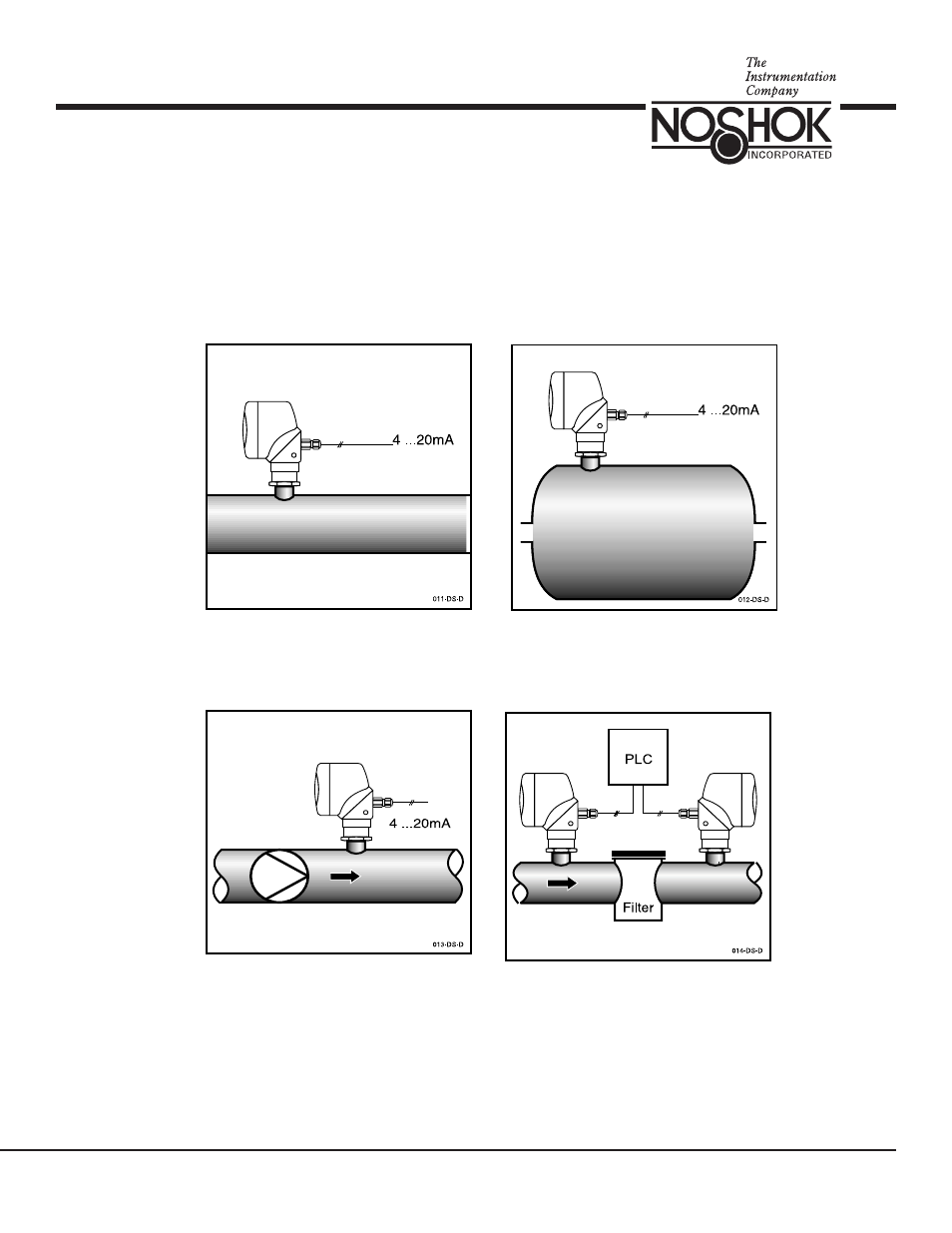

Installation Examples
The Digitrans is primarily used to detect the pressure in pipes, plants and tanks.
The pressure is measured using absolute (against a vacuum) or relative (against
external or air pressure) measurement depending on the type of sensor selected.
The Digitrans is also used for hydrostatic pressure measurement of liquids in tanks.
Process Pressure Measurement:
Process Pressure Measurement:
Used to measure pressure of liquids
Used to measure container pressure.
or gases in pipelines.
Process Pressure Measurement:
Process Pressure Measurement:
Installed behind feed pumps for
Installed in front of and behind the filter.
process control or monitoring pump
Uses the pressure differential for moni-
t
r
i
d
f
o
n
o
i
t
a
l
u
m
u
c
c
a
r
o
n
o
i
t
c
n
u
f
e
h
t
g
n
i
r
o
t
.
s
n
o
i
t
c
n
u
f
in the filter. Both output signals are pro-
cessed by a PLC or signal converter.
