17
5.5 Integration Time (Dampening) Adjustment
The following integration time settings can be used: 0, 1, 5, 20 and 40 s.
The sensor’s measured values can then be averaged using the adjusted integration
time.
5.6 Reset to Default
All default data settings are restored by simultaneously pressing the "zero", "esc" and
the "ok" buttons for 2 seconds (see Para. 6.4).
Calibrated special measurement ranges i. e. 4 bar on a 6 bar transmit-
ter can be adjusted by factory pre-setting. A reset to default will reset
the sensor back to its nominal range (i. e. 6 bar). The factory pre-setting
gets lost.
Calibration Value Calibration Value

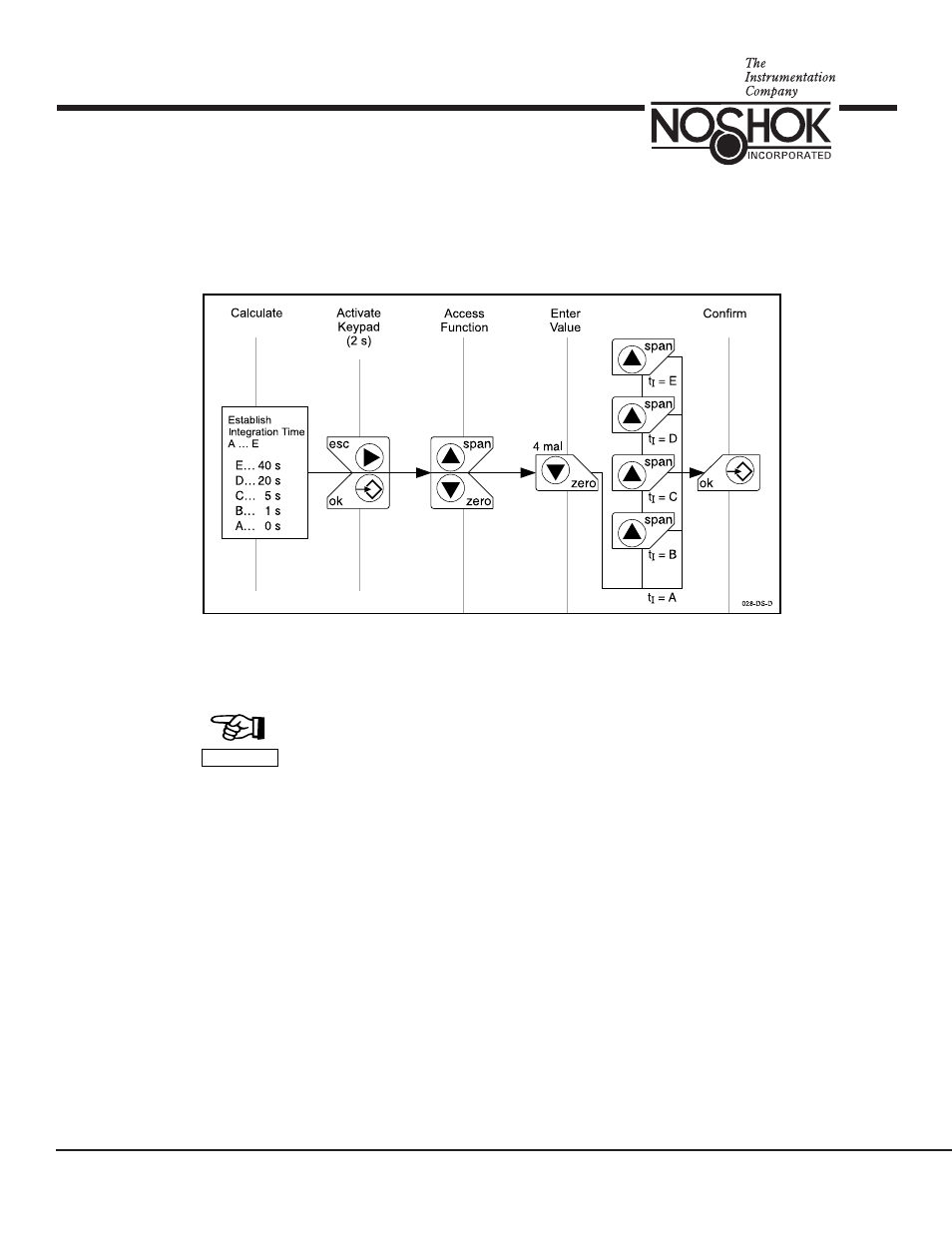

Calibration of the integration time
Important
