９．Optional Accessories
● Multi-Tran MODEL 8008 extends the capability of MODEL 2002PA
or MODEL 2002R, allowing measurement up to 3000A or on a
large bus-bar or conductor.
① Set the function selector switch to " ∼ 400A".

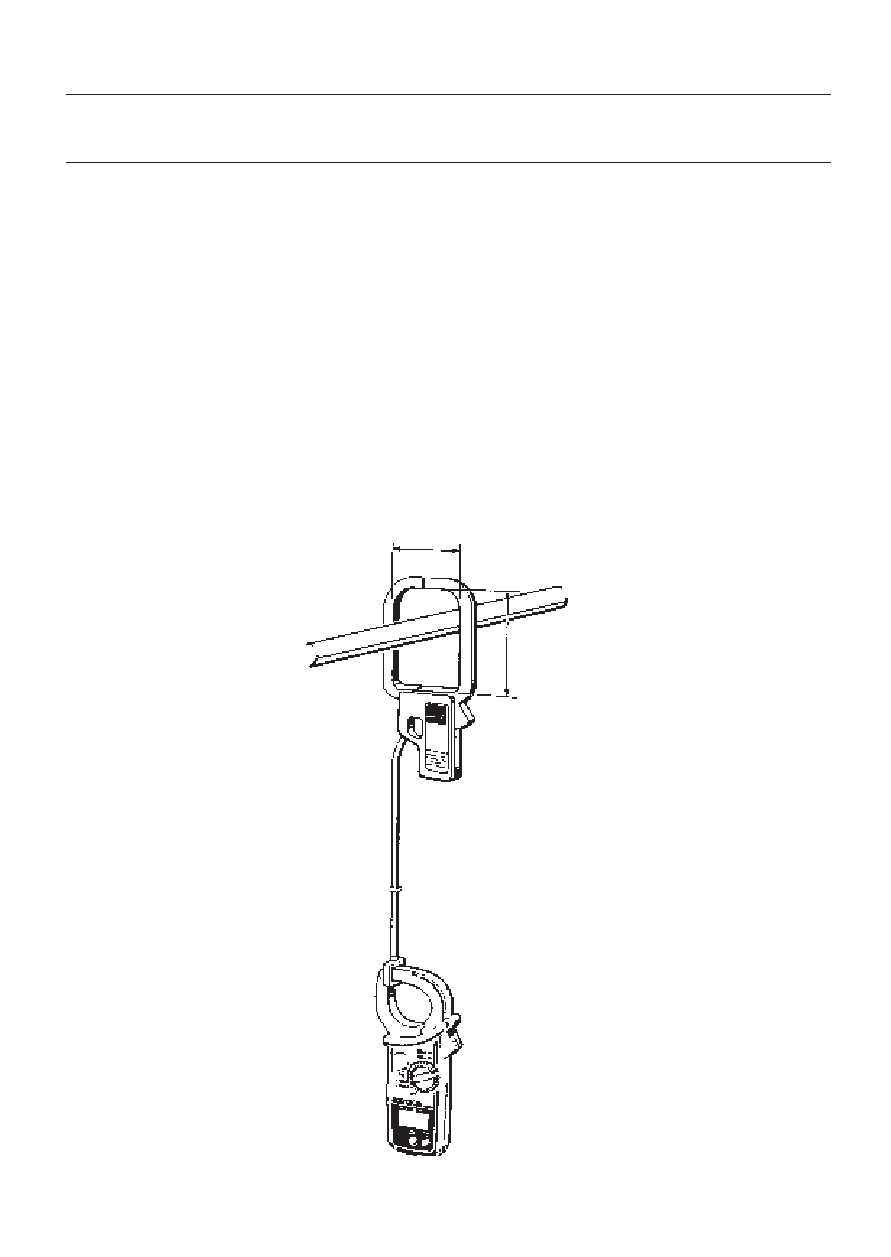

② As shown in the figure below, clamp MODEL 2002PA or MODEL
2002R onto the pickup coil of MODEL 8008.
③ Clamp MODEL 8008 onto the bus-bar or conductor under test.
④ Take the reading on MODEL 2002PA or MODEL 2002R and
multiply it by 10.
ＭＡＸ
150㎜
ＭＡＸ
100㎜
