Warning – KYORITSU 2002R User Manual

Page 16

― 39 ―

６−３ Resistance Measurement

WARNING

●

Before attempting to make measurement, make sure that the

circuit under test is not live. The instrument is protected against a
voltage up to 600V.

●

Do not make measurement with the battery compartment cover
removed.

６−３−１ Resistance Measurement (Normal Mode)

①

Set the function selector switch to the "

" position.

②

Slide the terminal cover to the left. Plug the red test lead into the V/

terminal and the black test lead into the COM terminal.

③

Short the tip of the test leads and check whether the display reads "0".

④

Connect the tip of the test leads to the circuit under test. Take the
reading on the display.

NOTE

●

When shorting the tip of the test leads, the display may read a very
small resistance instead of "0." This is the resistance of the test
leads, not a fault.

●

If one of the test leads is open, the display reads "OL".

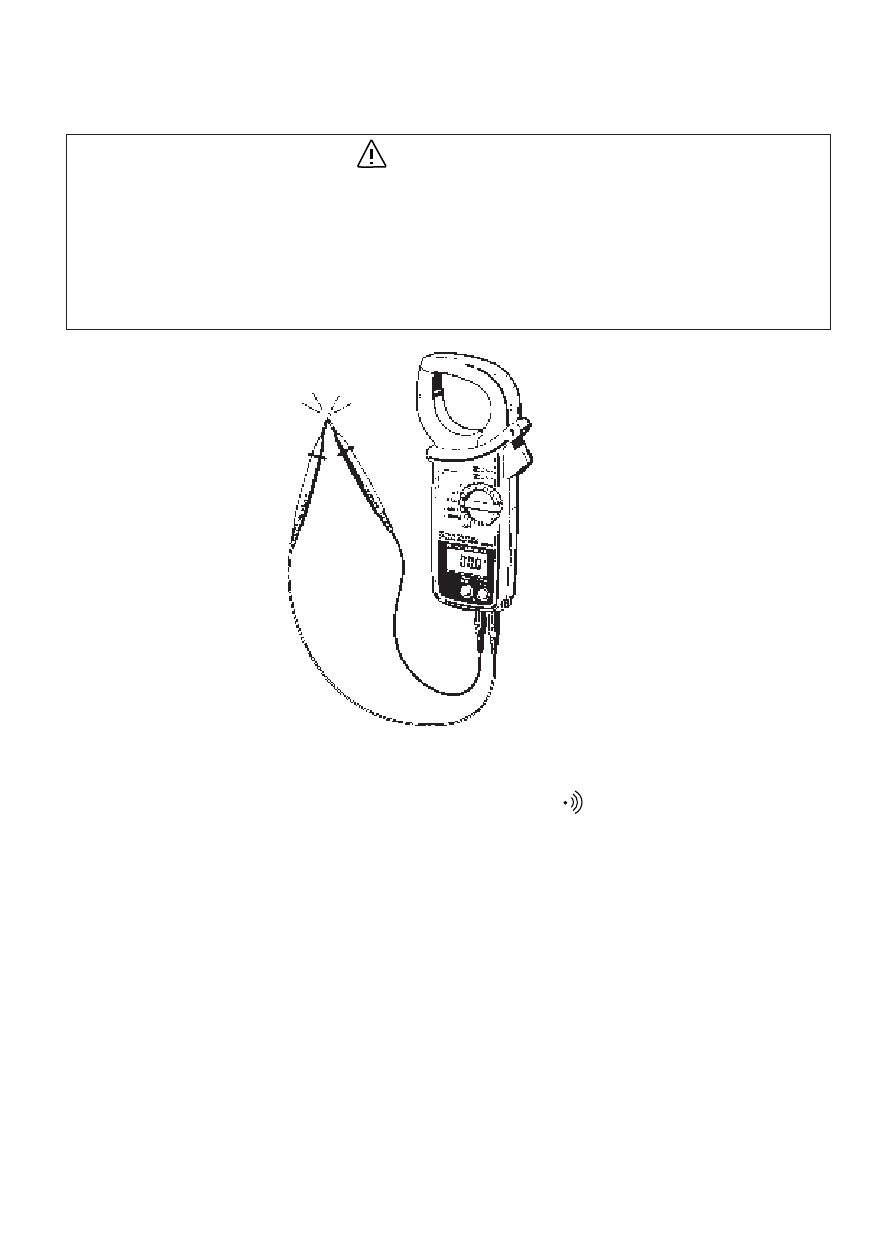

Black

test lead

Red test lead
