3 Product description
3.1 Configuration
The scope of delivery encompasses:
l
OPTISOUND 3040 C ultrasonic sensor
l
Documentation
- this operating instructions manual
- Ex-specific safety instructions (with Ex versions) and, if
necessary, further certificates
- Operating instructions manual "Indicating and adjust-
ment module" - optional
OPTISOUND 3040 C consists of the following components:
l
transducer with process fitting (depending on version
flange, swivelling holder or thread)
l housing with electronics (depending on version remote)
l
Housing cover, optionally available with indicating/adjust-
ment module
The components are available in different versions:
l
Version A: compact in flange version
l
Version B: compact with swivelling holder
l
Version C: separately with swivelling holder
l
Version D: separately with threaded fitting
1
2
3
4

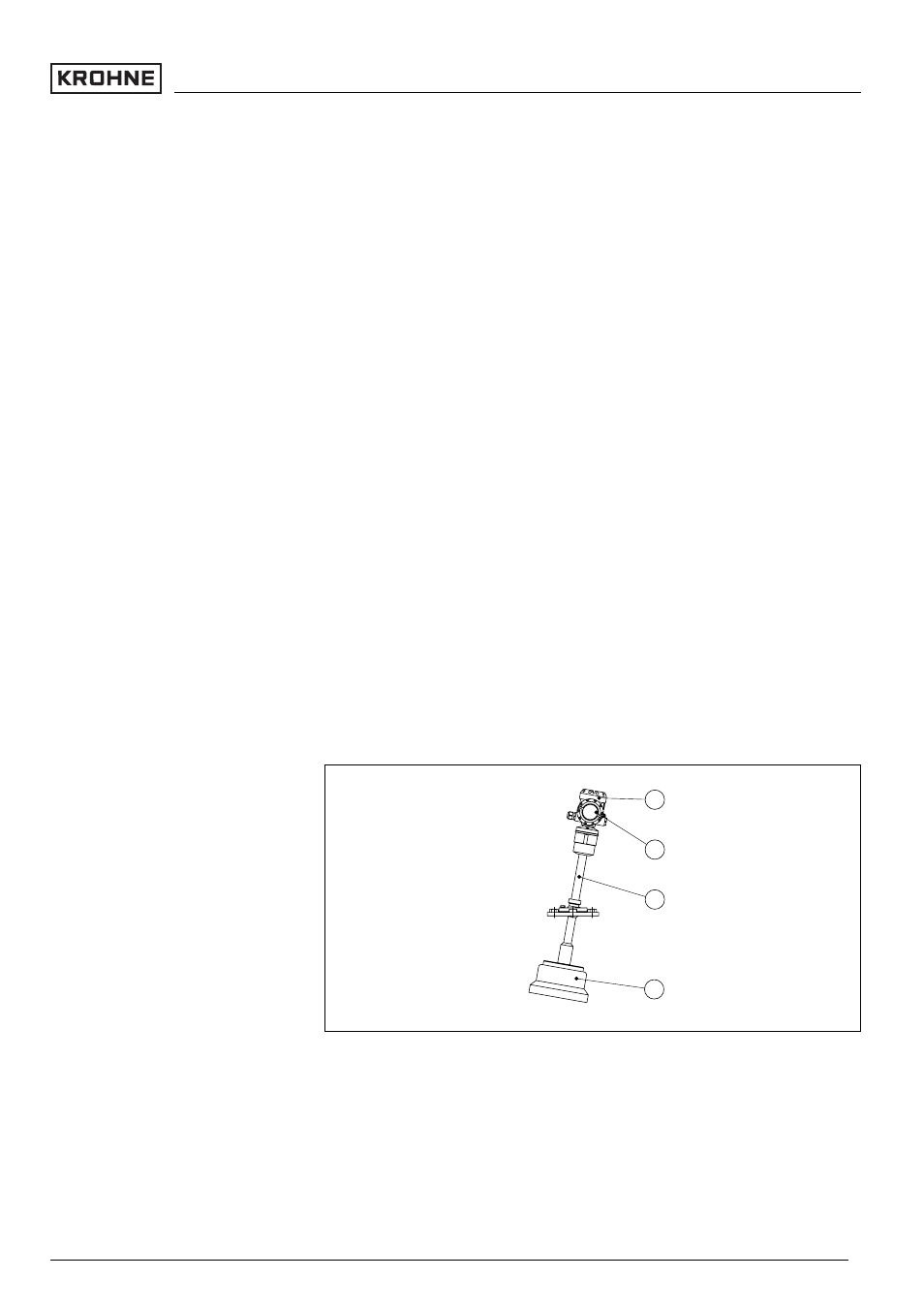

Fig. 1: OPTISOUND 3040 C compact with swivelling holder
1 Housing cover, optionally available with indicating/adjustment module
2 Housing with electronics
3 Swivelling holder with flange
4 Transducer
Scope of delivery
Components
OPTISOUND 3040 C - 4 ... 20 mA/HART - four-wire 7
Product description
