5 Set up
5.1 Adjustment system
1.1
2
3
1

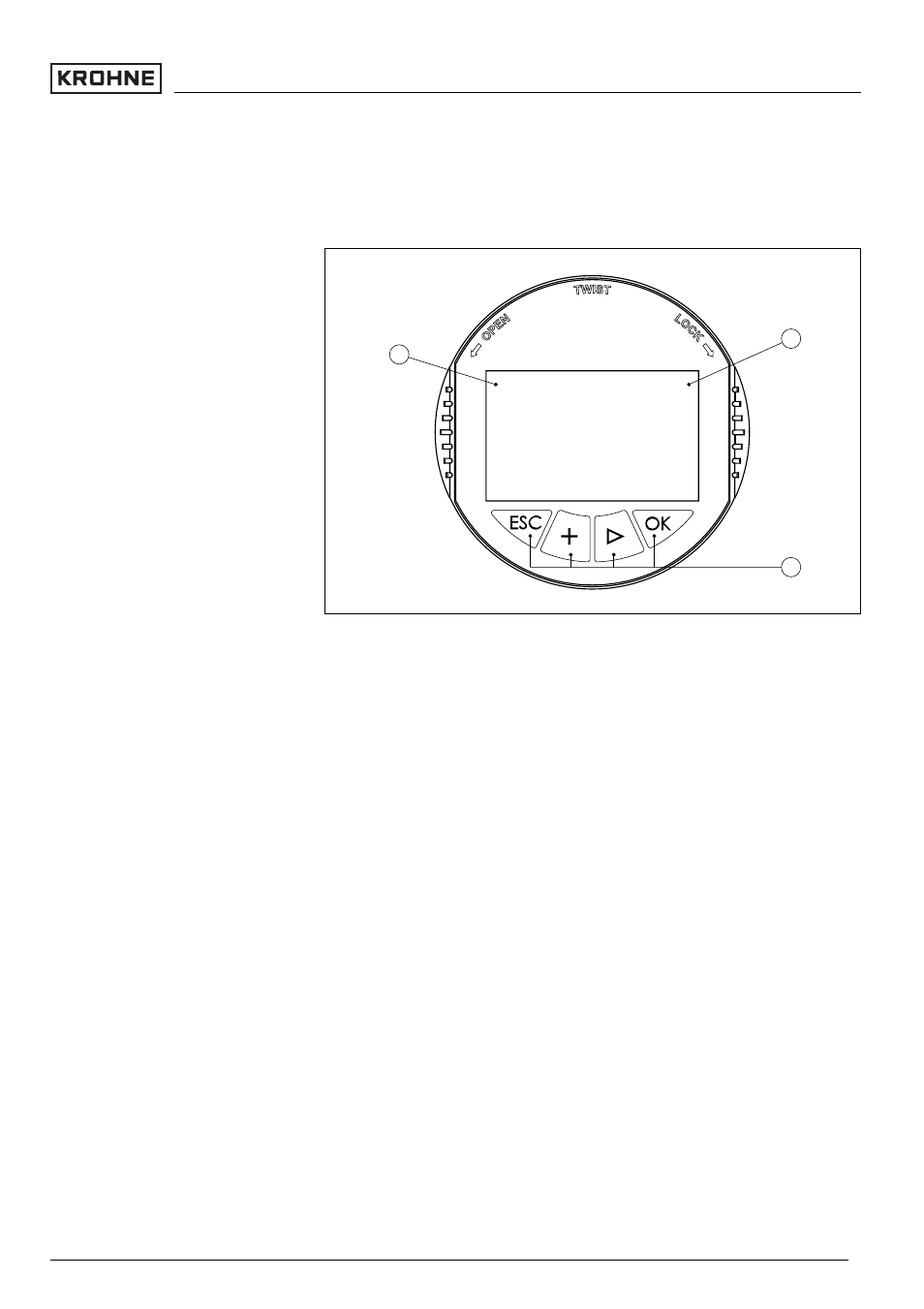

Fig. 4: Indicating and adjustment elements
1 LC display
2 Indication of the menu item number
3 Adjustment keys
l
[OK] key:
- move to the menu overview
- confirm selected menu
- edit parameter
-
save value
l
[–>] key to select:
- menu change
- list entry
-
editing position
l
[+] key:
-
modify value of a parameter
l
[ESC] key:
- interrupt input
-
jump to the next higher menu
The sensor is adjusted via the four keys of the indicating
and adjustment module. The LC display indicates the
individual menu items. The functions of the individual
Key functions
Adjustment system
Indicating/adjustment module for OPTISOUND sensors 13
