INSTALLATION
2
5
OPTIFLEX 1100 C
www.krohne.com 01/2012 - 4001226201 - QS OPTIFLEX 1100 R01 en
• Measure the probe.
i Make sure that you include the length of the counterweight (m) minus the cable insertion
length (n).
• Mark the probe length necessary for your application on the cable.
• Cut the cable.
• Attach the counterweight.
• Attach the lock screws to the counterweight. Tighten with a 3 mm Allen wrench.
i The device is prepared for installation on the tank.
If you decreased the probe length, you must enter the new value in the device configuration
menu (NOTE: the device must have the LCD display option or the HMI service tool). For more
data, refer to
Quick Setup on page 16.
INFORMATION!
The single cable probe measures between the top of the counterweight and the thread stop on
the process connection.
Attach the counterweight

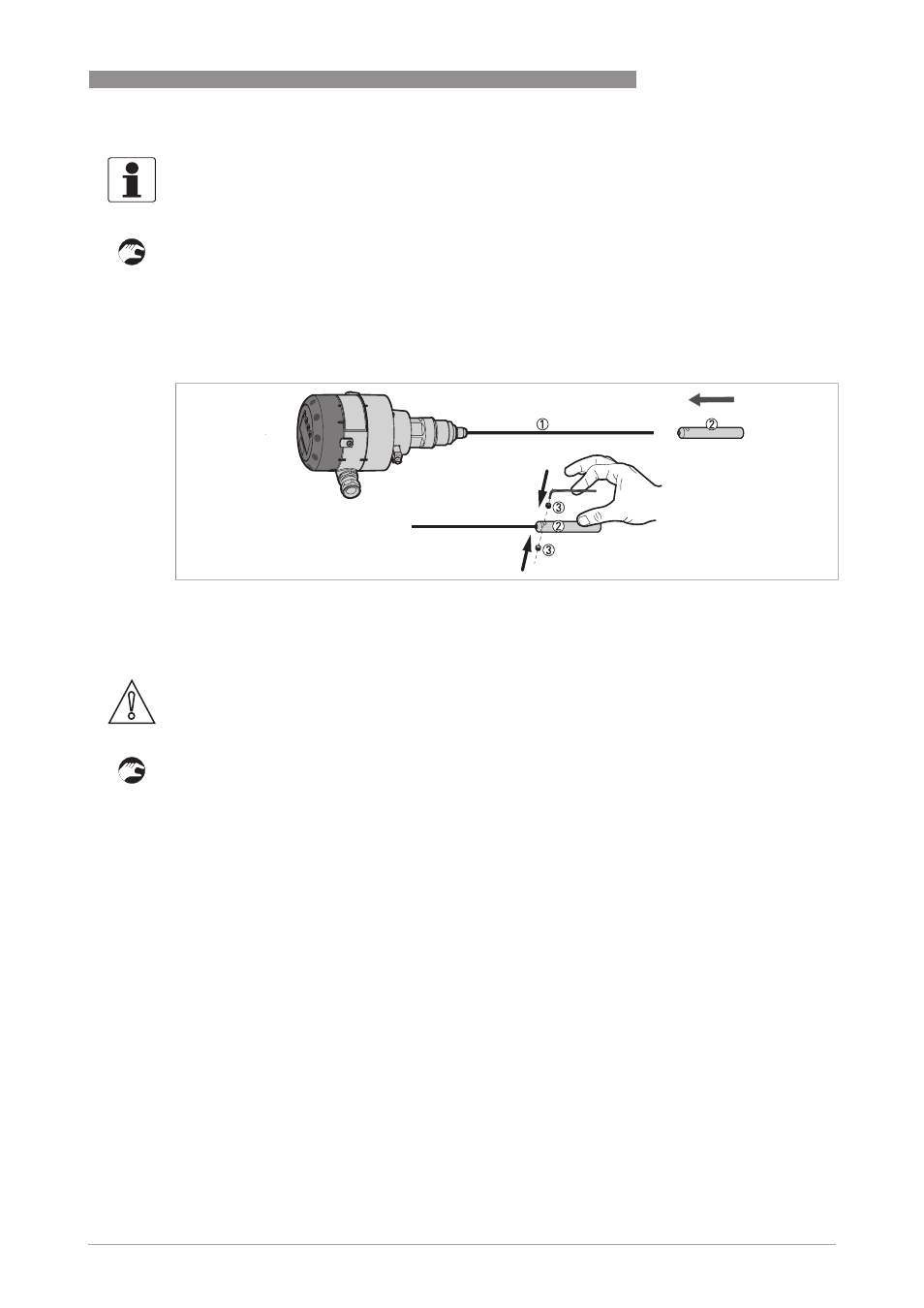

Figure 2-3: How to assemble the single cable probe: part 2
1 Single cable probe
2 Counterweight
3 2 HC M6×5 lock screws
CAUTION!
Make sure the cable is fully engaged in the probe counterweight.
