CONNECTION OF SEPARATE SYSTEMS
20
OPTISONIC 7300 / 8300
www.krohne.com 05/2012 - 7312262200 - AD EX OPTISONIC 7300/8300 R02
3.2.2 Converter

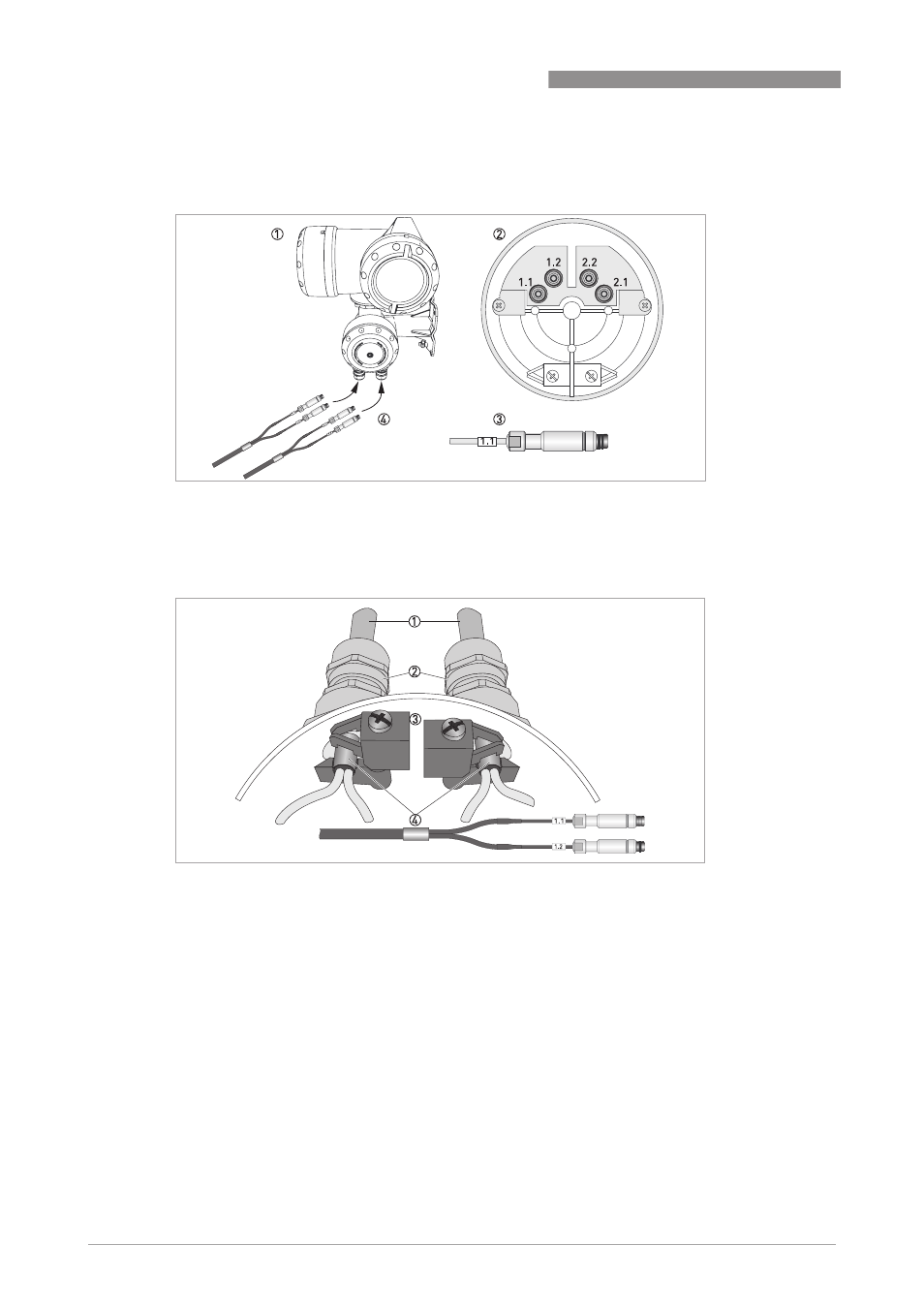

1 Converter housing.
2 Open connection box.
3 Marking on cable.
4 Insert cables through cable glands.
Figure 3-4: Clamp the cables on the shielding bush.
1 Cables.
2 Cable glands.
3 Grounding clamps.
4 Cable with metal shielding bush.
