KROHNE ALTOSONIC V Installation EN - Manual (Page 28)

28 www.krohne.com 04/2012
ALTOSONIC V
ELECTRICAL INSTALLATION
3

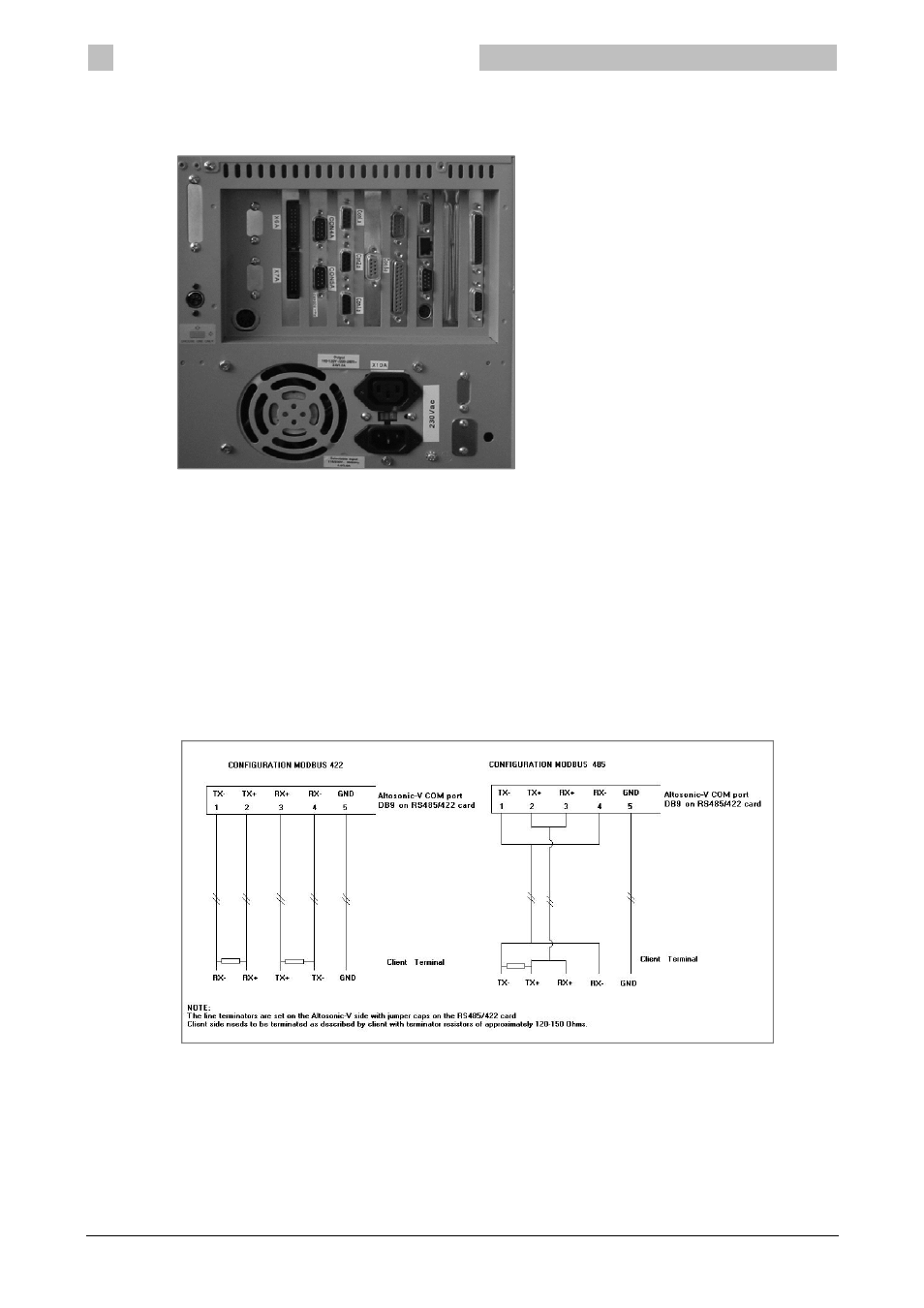

Side view Advantec Workstation AWS-842T
3.10 Modbus connection/communication to external equipment
The UFP-V Flow Processor is equipped with a RS 485/RS422 communication card which
provides two serial communication channels. The first channel is used for the communication
with the UFC-V Flow Converter unit and is factory set. The second channel is defined for
Modbus communication with external systems. Flow data and relevant auxiliary signals are
available. A user configurable Modbus I/O channel is available to interface with external host or
slave systems. For more detailed information settings and operating reference to the
ALTOSONIC V Modbus Manual. The Modbus connection terminals are available at the backside
of the I/O rack marked with numbers 1, 2, 3, 4 and 5.
External wiring UFP card PCL745 for Modbus
