ELECTRICAL INSTALLATION 3
3.6 Connecting the Flow Converter to the Flow Computer
Between the Flow Converter UFC-V and the I/O-rack (Flow Computer UFP-V ) a three wire
shielded cable (not supplied) has to be connected. This wire must also be connected with the
shield to the shield connectors on both sides. The cable has to be connected according to the
table below.
UFC-V X1 Wire
I/O-rack ( UFP-V ) connection terminal
(position number may differ)
- 1 (see connection supplied diagram for position) (-)
+ 2 (see connection supplied diagram for position) (+)
┴
3 (see connection supplied diagram for position) (┴)

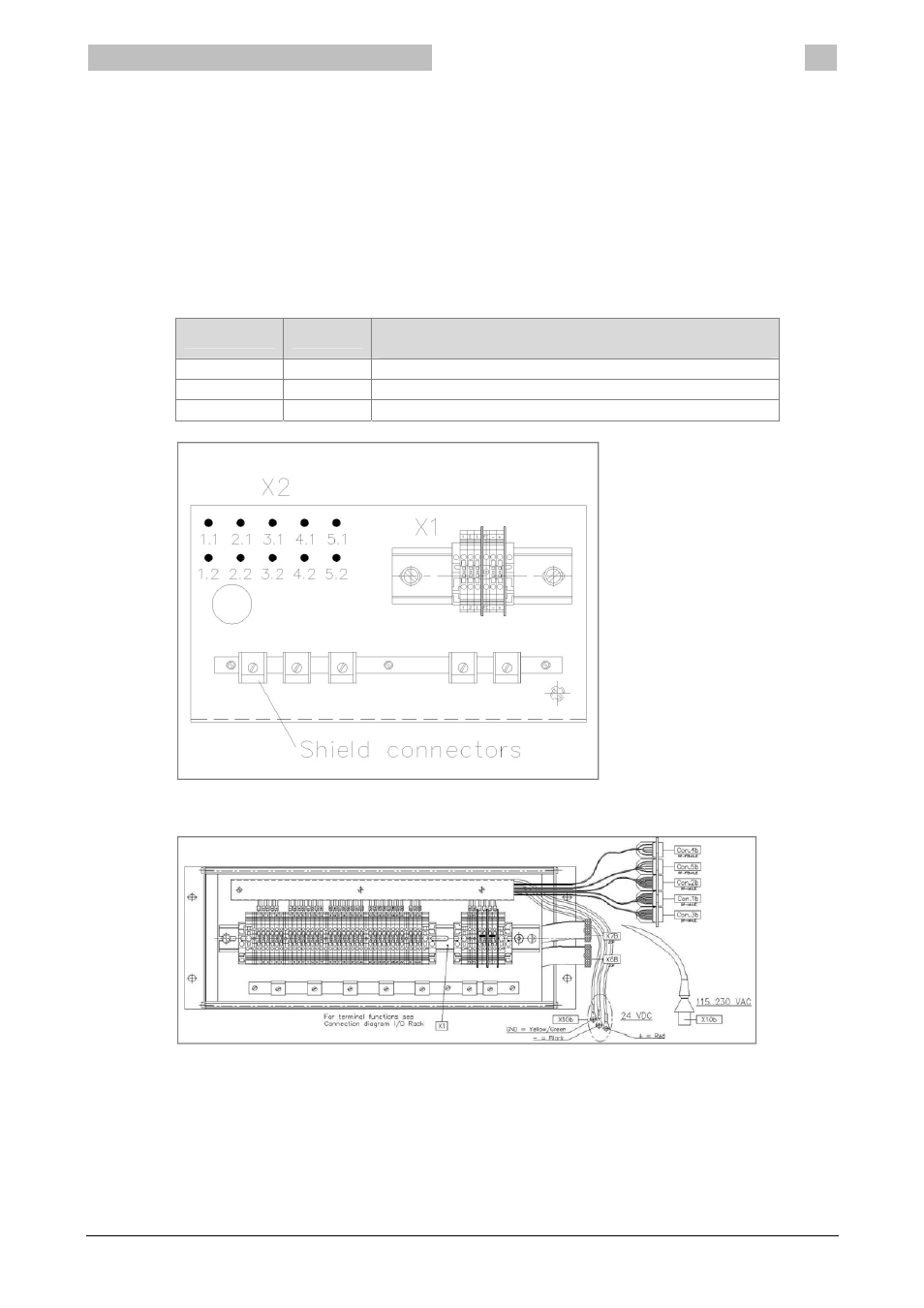

Connector X1 + X2 of Flow Converter UFC-V
I/O-rack Flow Computer UFP-V rear side (24 VDC version)
