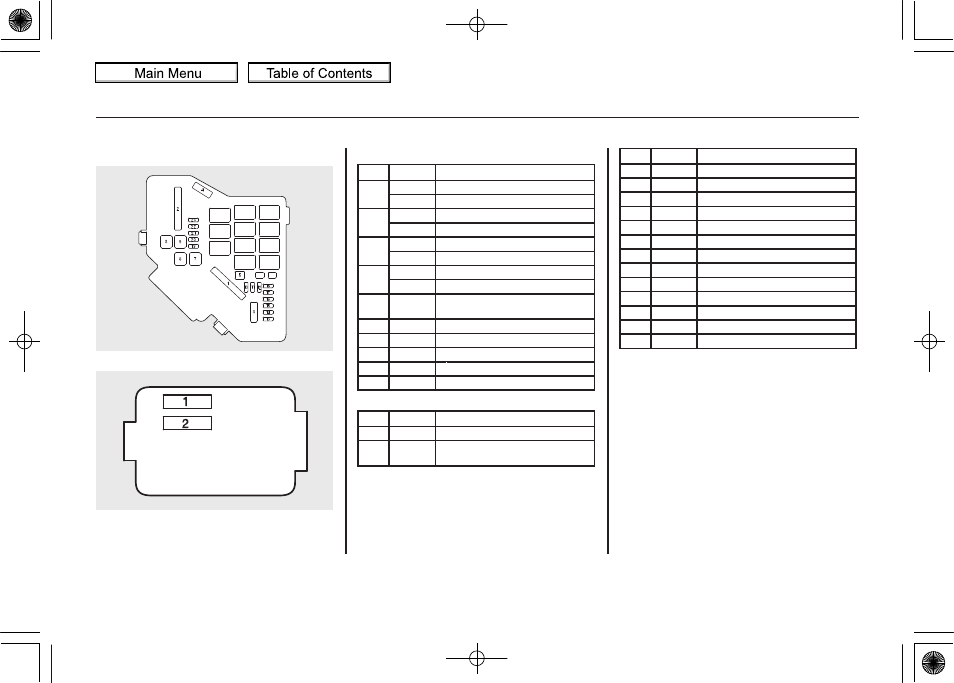

UNDER-HOOD FUSE BOXES PRIMARY
SECONDARY
Primary Fuse Box
No.
Amps.
Circuits Protected
1
100 A
Main Fuse
30 A
SH-AWD
ꭧ
2
80 A
Option Main
50 A
Ignition Switch Main
3
40 A
ABS/VSA Motor
20 A
ABS/VSA Fail Safe
4
50 A
Headlight Main
40 A
Power Window Main
5
30 A
Passenger's Power Seat
Reclining
6
30 A
Main Fan Motor
7
30 A
Sub Fan Motor
8
30 A
Rear Defogger
9
40 A
Blower
10
15 A
Hazard
Secondary Fuse Box
No.
Amps.
Circuits Protected
1
7.5 A
Electric Vacuum Pump
2
20 A
Passenger's Power seat
Reclining
No.
Amps.
Circuits Protected
11
15 A
LAF
12
15 A
Stop & Horn
13
20 A
Driver's Power Seat Reclining
14
20 A
Driver's Power Seat Sliding
15
7.5 A
IGPS Oil Level
16
20 A
Passenger's Power Seat Sliding
17
15 A
Electric Vacuum Pump
18
15 A
IG Coil
19
15 A
FI Main
20
7.5 A
MG Clutch
21
15 A
DBW
22
7.5 A
Interior Light
23
10 A
Back Up
ꭧ: On SH-AWD models only
