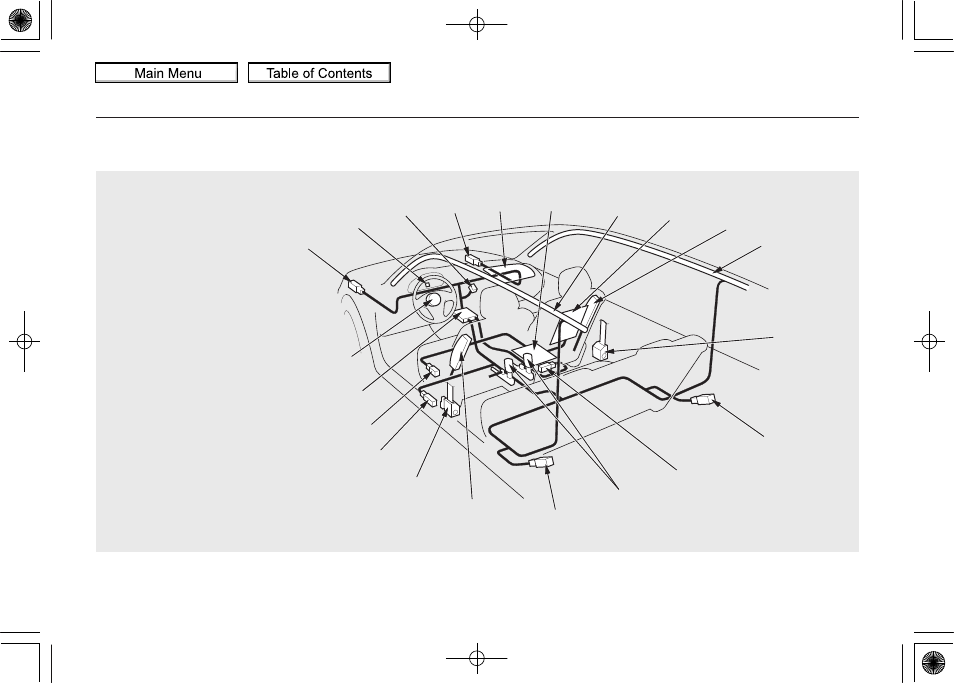

Airbag System Components
(14)
(10)
(9)
(2)
(12)
(6)
(5)
(15)
(11)
(4)
(16)
(8)(13)
(16)
(5)
(1) Driver's Front Airbag
(2) Passenger's Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Side Curtain Airbags
(7) Driver's Seat Position Sensor
(8) Front Passenger's Weight Sensors
(9) Front Impact Sensors
(10) Passenger Airbag Off Indicator
(11) Side Impact Sensors (First)
(12) Occupant Position Detection
System (OPDS) Sensors
(13) Front Passenger's Weight Sensors/
OPDS Sensors Control Unit
(14) Supplemental Restraint System
(SRS) Indicator
(15) Rollover Sensor
(16) Side Impact Sensors (Second)
(1)
(3)
(6)
(7)
(4)
(9)
(4)
Additional Information About Your Airbags
