The front panel (Figure 3) is equipped with a 7.5A Input power circuit breaker that can be used to enable input power
to the FAW power supplies. Three front panel pilot lights can be wired to indicate whether the associated FAW power
supply is on. Front panel Test Points (+ and –) can also be wired so that the DC output voltages are accessible for
monitoring from the front panel.

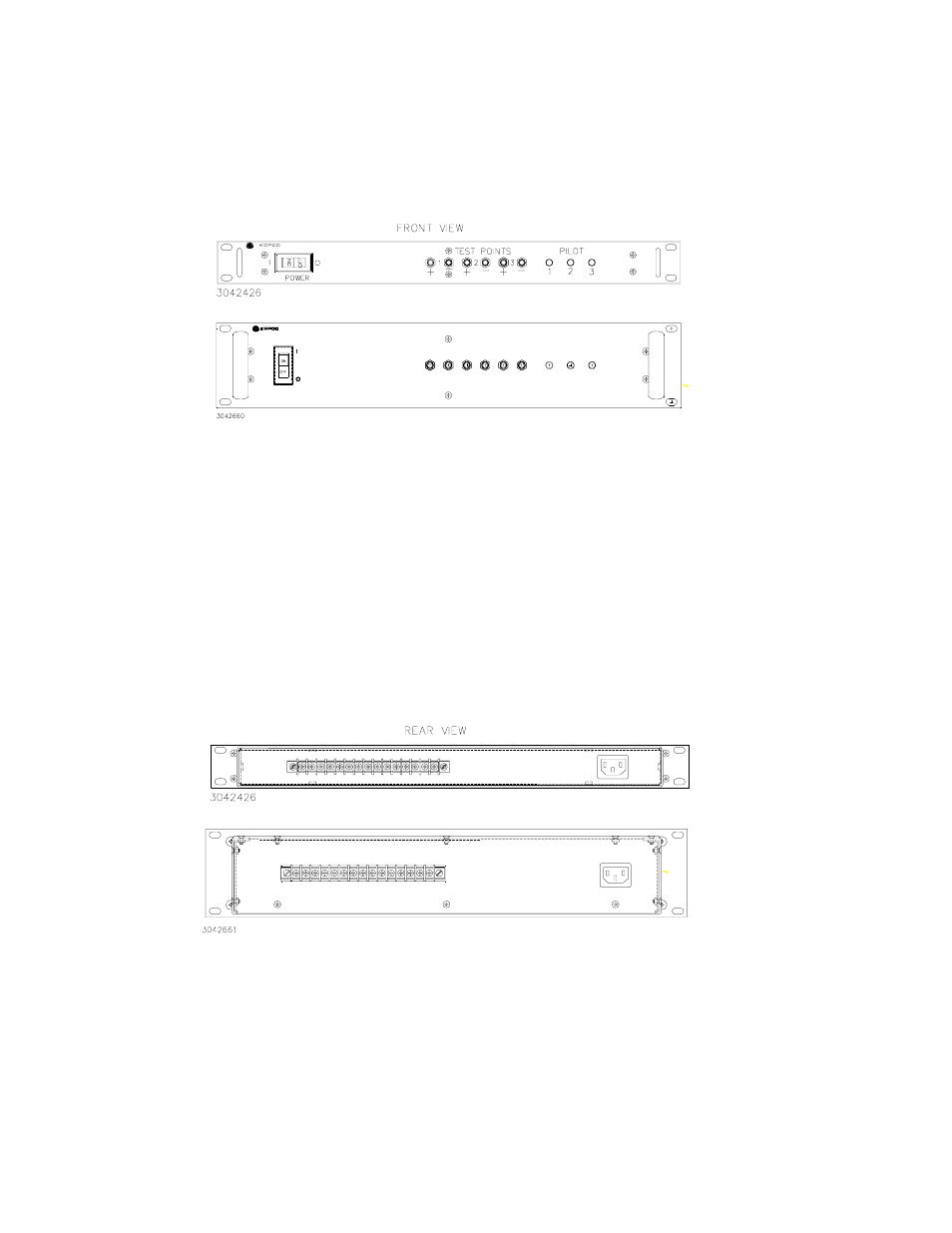

FIGURE 3. FRONT PANEL
The rear panel (Figure 4) includes a 15-terminal terminal block that can be used to make the FAW power supply out-
puts accessible and an a-c inlet connector. A separate 115V a-c line cord is included with the rack adapter.
FIGURE 4. REAR PANEL
RA 75
RA 76
3 2
PILOT TEST POINTS
3
1 − + −
2 1
+ − +
POWER
RA 75
RA 76
