I — INTRODUCTION
SCOPE OF MANUAL. This Quick Start Guide covers
installation and operation of the Kepco RA 19-1U Rack
Adapter for two common configurations. For the full capa-
bilities and specifications of the RA 19-1U, and to take
advantage of the many choices and features not covered in
this Quick Start Guide, the user is urged to download the
complete Operator’s Manual from the Kepco web site at
www.kepcopower.com/support/opmanls.htm#ra19-1u.
DESCRIPTION. Kepco RA 19-1U rack adapters are
specifically designed for any combination of up to four 50W,
100W or 150W HSF 1U power supplies.
The rack adapter is user-configurable for parallel, series, or
independent power supply operation. Forced current shar-
ing and OR’ing diodes for N+1 redundancy are built into the
HSF power supplies. Redundant a-c inputs are provided to
deliver independent source power to each power supply in
a redundant pair. User-configurable keying can ensure that
only the correct power supply can be installed in a keyed
slot. Input/output connections between RA 19-1U and HSF
power supply are via HSF connectors that plug into corre-
sponding connectors of the RA 19-1U. All connections are
made at the rear panel (see Figure 1).

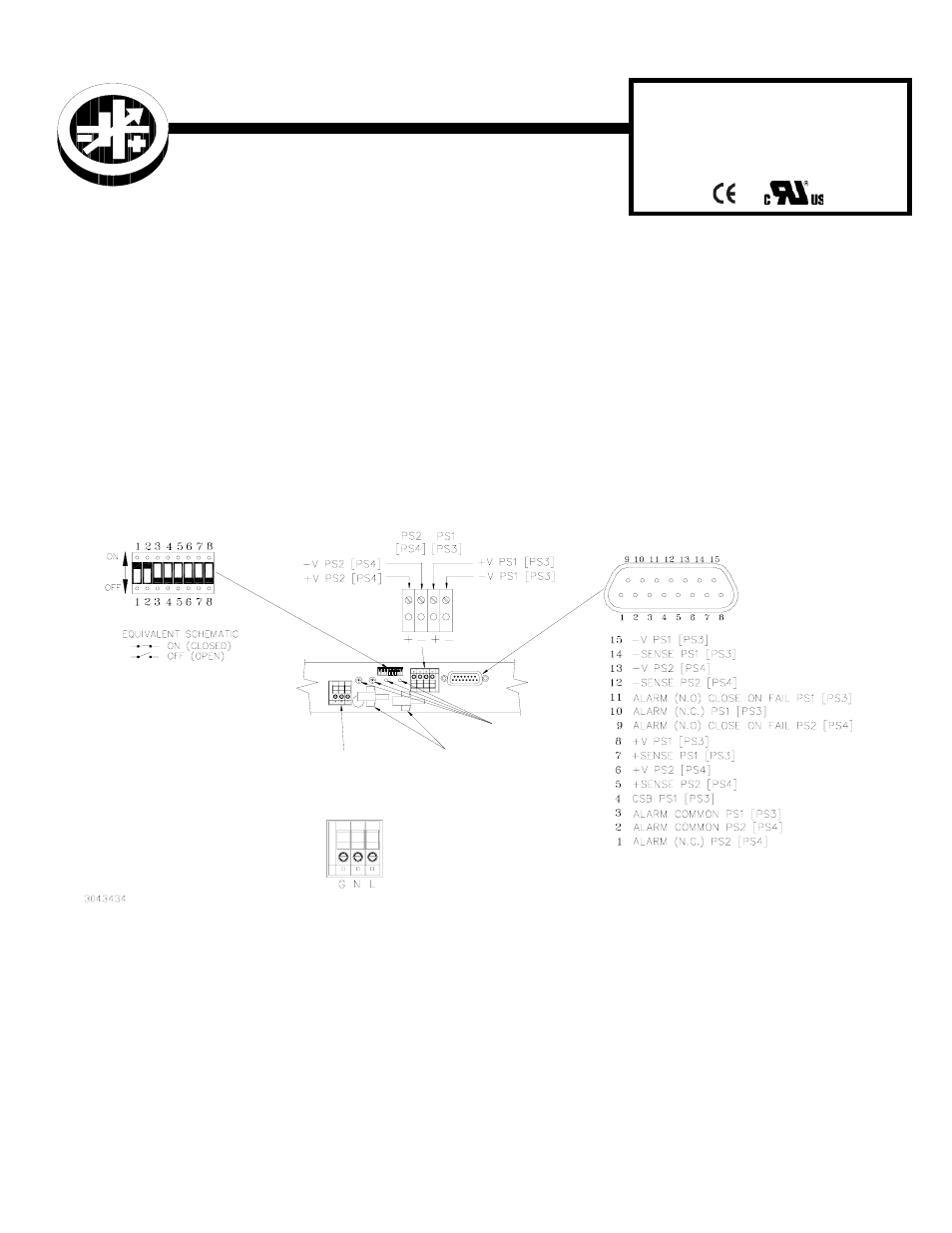

FIGURE 1. REAR PANEL CONNECTIONS, TYPICAL
II — PRE-INSTALLATION
NOTE: Either local or remote sensing MUST
be used.
DIP SWITCHES. The DIP switches (Figure 1) are
arranged as follows: DIP 1 is for PS1 sense lines; DIP 2 is
for PS2 sense lines and for paralleling PS1 and PS2. DIP 3
is for PS3 sense lines and for paralleling PS2 and PS3. DIP
4 is for PS4 sense lines and for paralleling PS3 and PS4.
Table 1 describes the function of each DIP switch position.
INDEPENDENT OPERATION. The RA 19-1U rack
adapter is shipped with the DIP switches of all slots config-
ured for independent operation (see Figure 1) and local
sensing. Refer to RA 19-1U manual for remote sensing.
KEYING
INPUT POWER
(2 CONNECTORS)
PS2 AND PS4
[PS1 AND PS3]
DIP SWITCH
(ONE PER SLOT)
DC OUTPUT
(2 CONNECTORS)
I/O CONNECTOR
(2 CONNECTORS)
PS1, PS2
[PS3, PS4]
CABLE CLAMP
FOR DC OUTPUT
(USER INSTALLED)
DIP SWITCH FUNCTIONS
1 +S TO +V
2 -S TO -V
3 +S TO ADJACENT +S
4 -S TO ADJACENT -S
5. CB TO ADJACENT CB
6. ALARM (N.O) TO ADJACENT ALARM (N.O.)
7. ALARM (COM) TO ADJACENT ALARM (COM)
8. ALARM (N.C) TO ADJACENT ALARM (N.C.)
NOTE:
PIN FUNCTIONS SHOWN ABOVE DIFFER SLIGHTLY FOR
HSF-1UR C, X AND Y MODELS. FOR DETAILS CONSULT
RA19-1U OPERATOR MANUAL AT WWW.KEPCOPOWER.COM.
