III — SPECIFICATIONS (STANDARD) - CONTINUED
HOLDUP TIME:
37 ms. typ., 20 ms. min. (100V a-c)
45 ms. typ., 25 ms. min. (240V a-c)
DIELECTRIC STRENGTH:
Between input and output:
2KV a-c for one minute.
Between input and case (ground):
2KV a-c for one minute.
Between output and case (ground):
[500V a-c for one minute.]
INSULATION RESISTANCE: Between input and
ground, output and ground, input and output:
100 Megohms min. (500V d-c).
LEAKAGE CURRENT
0.23mA typical, 0.35 mA maximum
(per IEC 950 and UL1950,120V a-c)
0.45mA typical, 0.70 mA maximum
(per IEC 950 and UL1950, 240V a-c)
SAFETY: Units are designed to meet UL60950 3rd Edi-
tion, CSA 22.2 No. 60950 [60950-1], and EN60950 and are
CE marked per the Low Voltage Directive (LVD), 73/23/
EEC and 93/68/EEC. The standards do not apply with DC
input operation.
EMI: Designed to meet FCC Class B (100-120V a-c) and
VDE 0871 Class B (220-240V a-c).
VIBRATION: (non-operating, one hour on each one of
the three axes):
5-10 Hz, 10 mm amplitude.
10-55 Hz, 2g acceleration.
SHOCK: (non-operating, one-half sinusoidal pulse, three
shocks to each axis):
Acceleration: 60g
Duration: 11ms +5ms
OPERATING TEMPERATURE: See Figure 4.

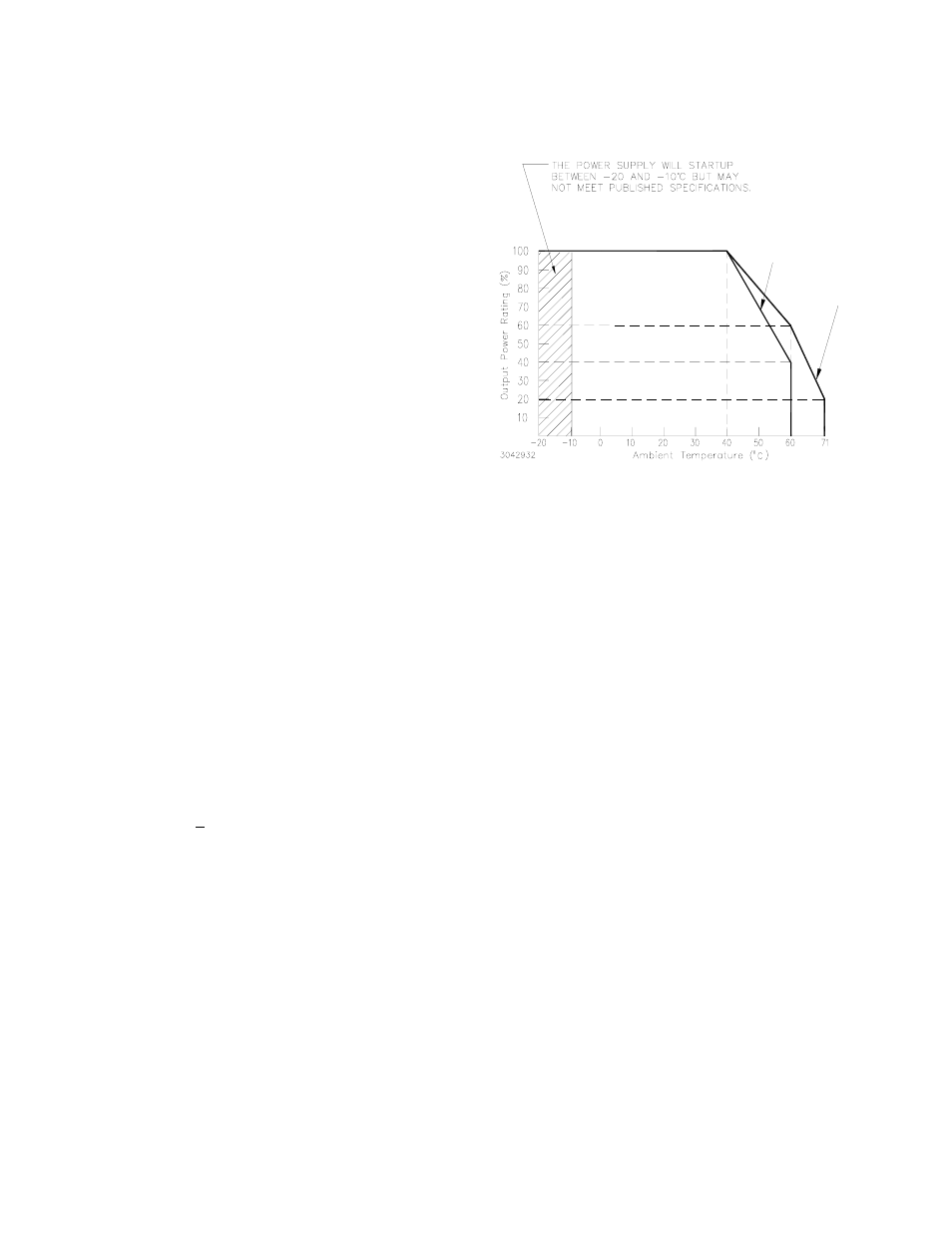

FIGURE 4. % OUTPUT POWER RATING VS.
AMBIENT TEMPERATURE
STORAGE TEMPERATURE: -30 o
C to +75
o
C.
RELATIVE HUMIDITY: Operating and storage: up to
95% (wet bulb temp. <35
o
C non-condensing).
FUSE: Slow Blow, 3.15A, 250V; (5 x 20 mm),
Littelfuse, P/N 2153.15PF;
Kepco P/N 541-0135.
DIMENSIONS: See Figure 6.
WARRANTY: 5 years.
Standard models
(no suffix)
Options
C, T, X and Y
