Figure 10. output alarm circuit optically isolated, 8 local/remote sensing, 9 retaining latches – KEPCO HSF 600W Series (no suffix, suffix C) Operator Manuals User Manual

Page 15: Output alarm circuit optically isolated, Pf power failure optocoupler timing diagram, Re 10). the, Re 11

Text mode
Original mode

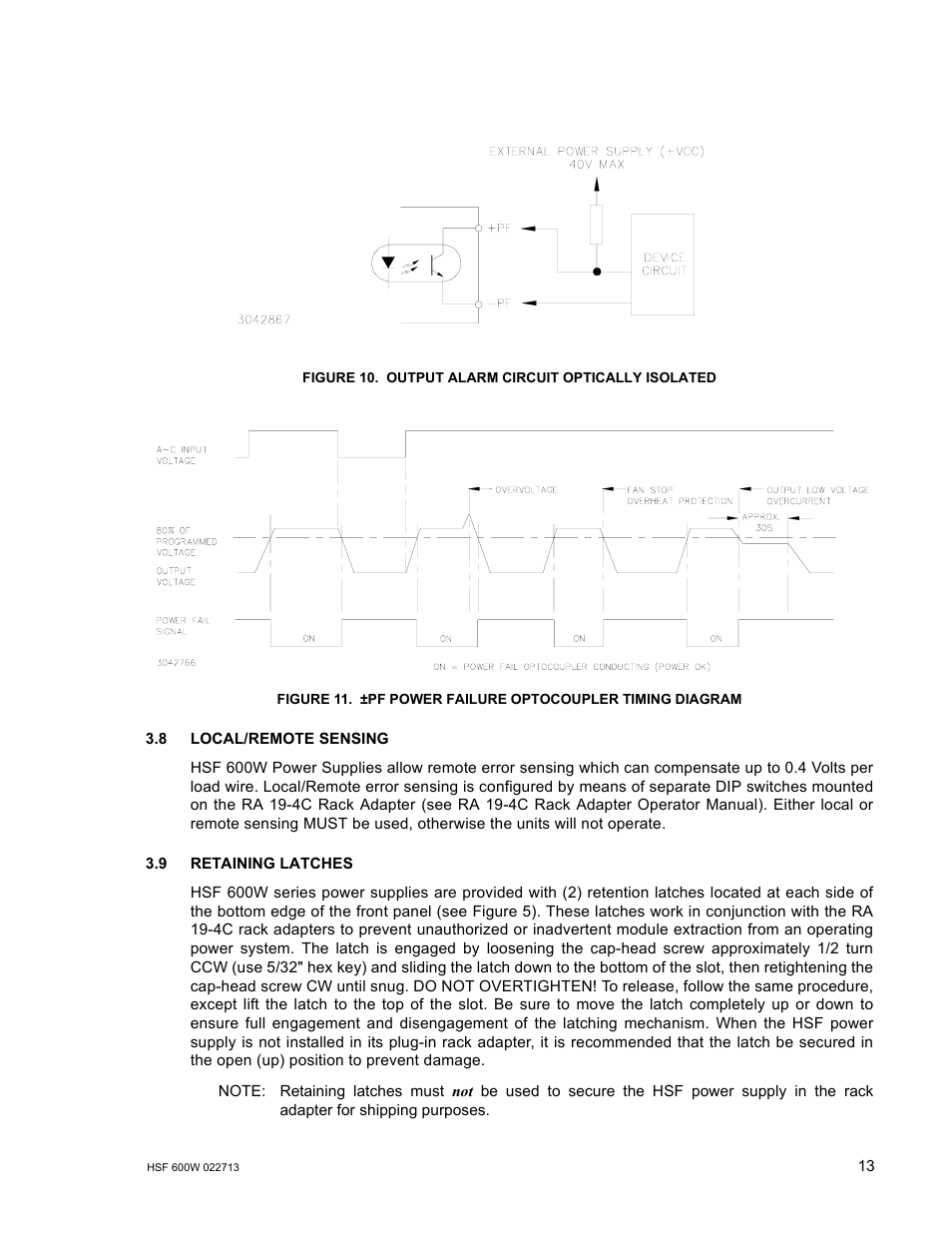

Figure 10. output alarm circuit optically isolated, 8 local/remote sensing, 9 retaining latches | Output alarm circuit optically isolated, Pf power failure optocoupler timing diagram, Re 10). the, Re 11 | KEPCO HSF 600W Series (no suffix, suffix C) Operator Manuals User Manual | Page 15 / 16
