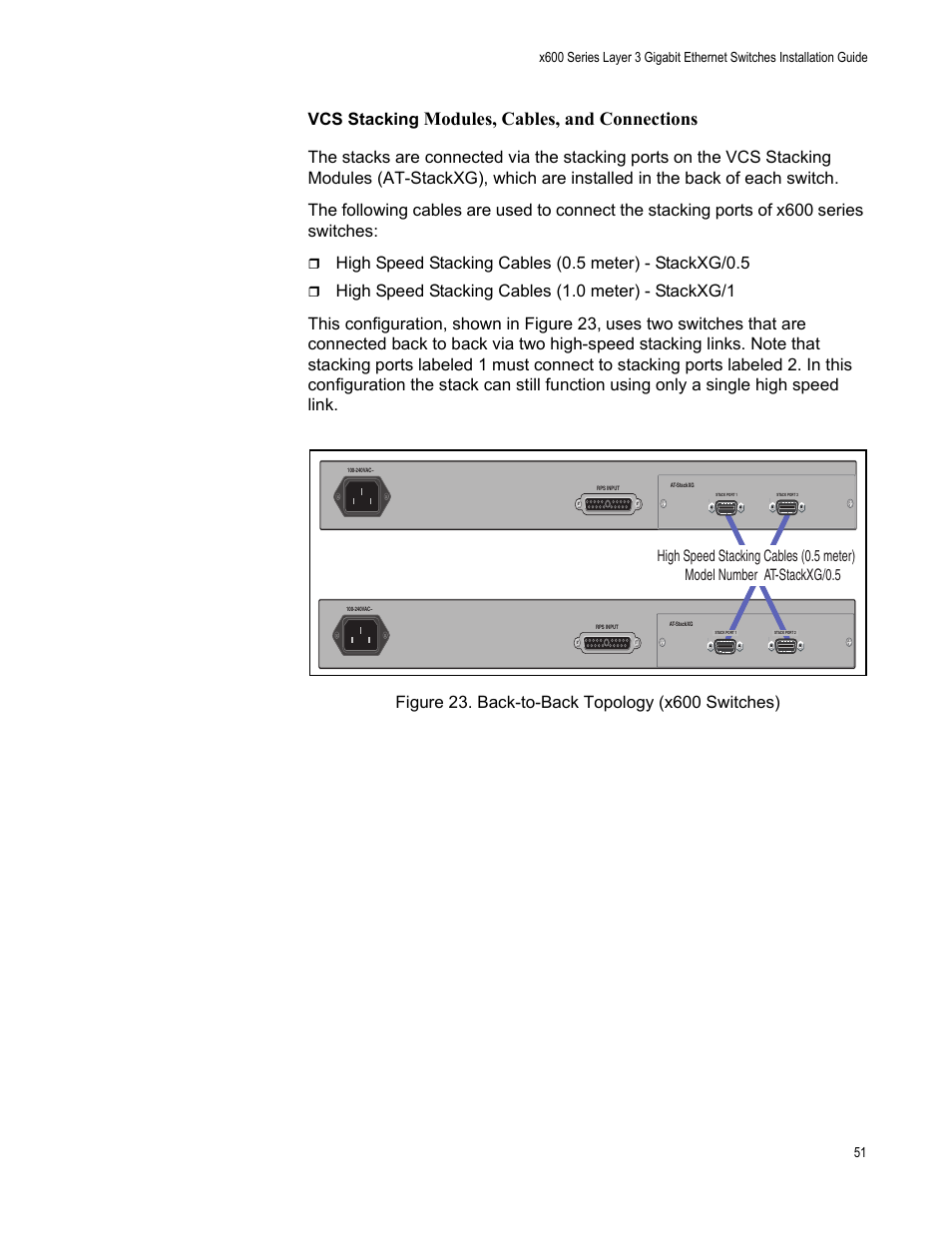

Figure 23. back-to-back topology (x600 switches), Modules, cables, and connections, Vcs stacking – Allied Telesis Layer 3 Gigabit Ethernet Switch x600-24Ts-POE User Manual

Page 51

Figure 23. back-to-back topology (x600 switches), Modules, cables, and connections, Vcs stacking | Allied Telesis Layer 3 Gigabit Ethernet Switch x600-24Ts-POE User Manual | Page 51 / 110 Figure 23. back-to-back topology (x600 switches), Modules, cables, and connections, Vcs stacking | Allied Telesis Layer 3 Gigabit Ethernet Switch x600-24Ts-POE User Manual | Page 51 / 110
