880R-N4X
880R-N4X Instruction Manual Rev. 0.0 Page 5 of 16
O
I
1A
G
roun
d
VAC
(L
1)
NEU
(L2
)

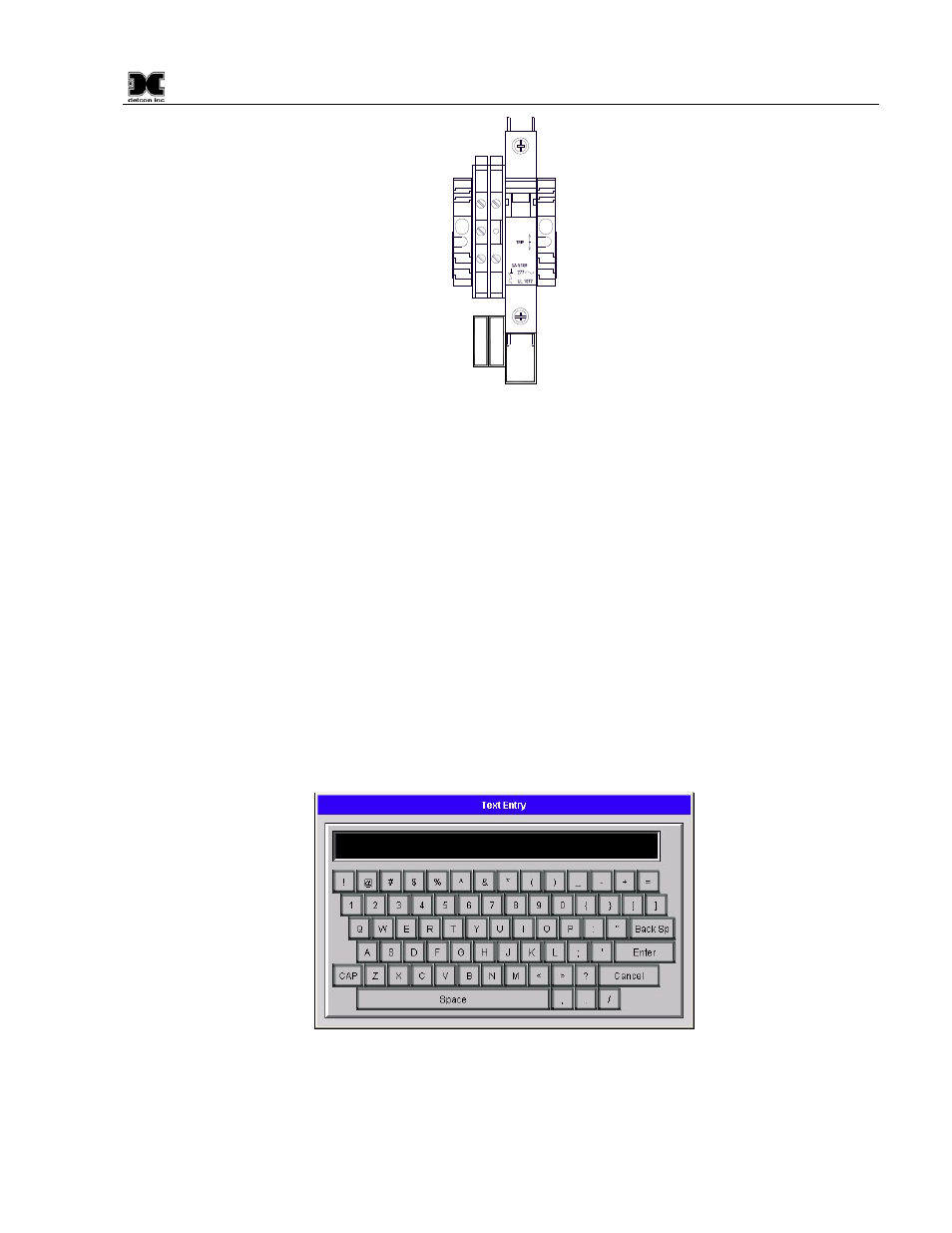

Figure 7 Typical Input Power connections
Upon completion of all field wiring, apply power to the Main 880 and the 880 Remote Display. The unit will
go through a brief initialization and display the “Main Screen” (Figure 15). The “AC” box on the display
should be green to show that AC is attached to the unit. The “USB” box gray to indicate no USB drive is
attached.
4.0 Setup
4.1 User interface
When an alphanumeric or text string is called for, the unit will display an alphanumeric keyboard for the user
to input information (Figure 8). Information typed by the user will be displayed in the box just above the
keyboard. The keyboard is fully functional allowing the user to input spaces, special characters (‘*’, ‘&’, etc.),
and make changes between lowercase characters and capitals by using the CAP key. Once the user has input
the correct information, the ‘Enter’ key will transfer the complete string to the appropriate ‘Box’ on the screen
and the alphanumeric keyboard will disappear.
Figure 8 Input Keyboard
When a number is called for, the unit will display a keypad for the user to input the appropriate numeric
response (Figure 9). Information entered by the user will be displayed in the box to the left of the keypad.
Once the user has input the correct information, the ‘Enter’ key will transfer the numeric value to the
appropriate ‘Box’ on the screen and the keypad will disappear. Many keypad entries display a minimum,
