880R-N4X
880R-N4X Instruction Manual Rev. 0.0 Page 2 of 16
PWR
CPU
TxD
RxD
+
Used
NOT
24V . . . .
Dedicated power supply recommended
L1
P1
F1
N
J1
3 +
5
4
6
2 +
1
J2
O
I
1A
TX
D +
TX
D -
RX
D+
TERMINAL
INPUT
RX
D- 0V
Gr
o u n d
VA
C (L
1 )
NE
U (
L 2)

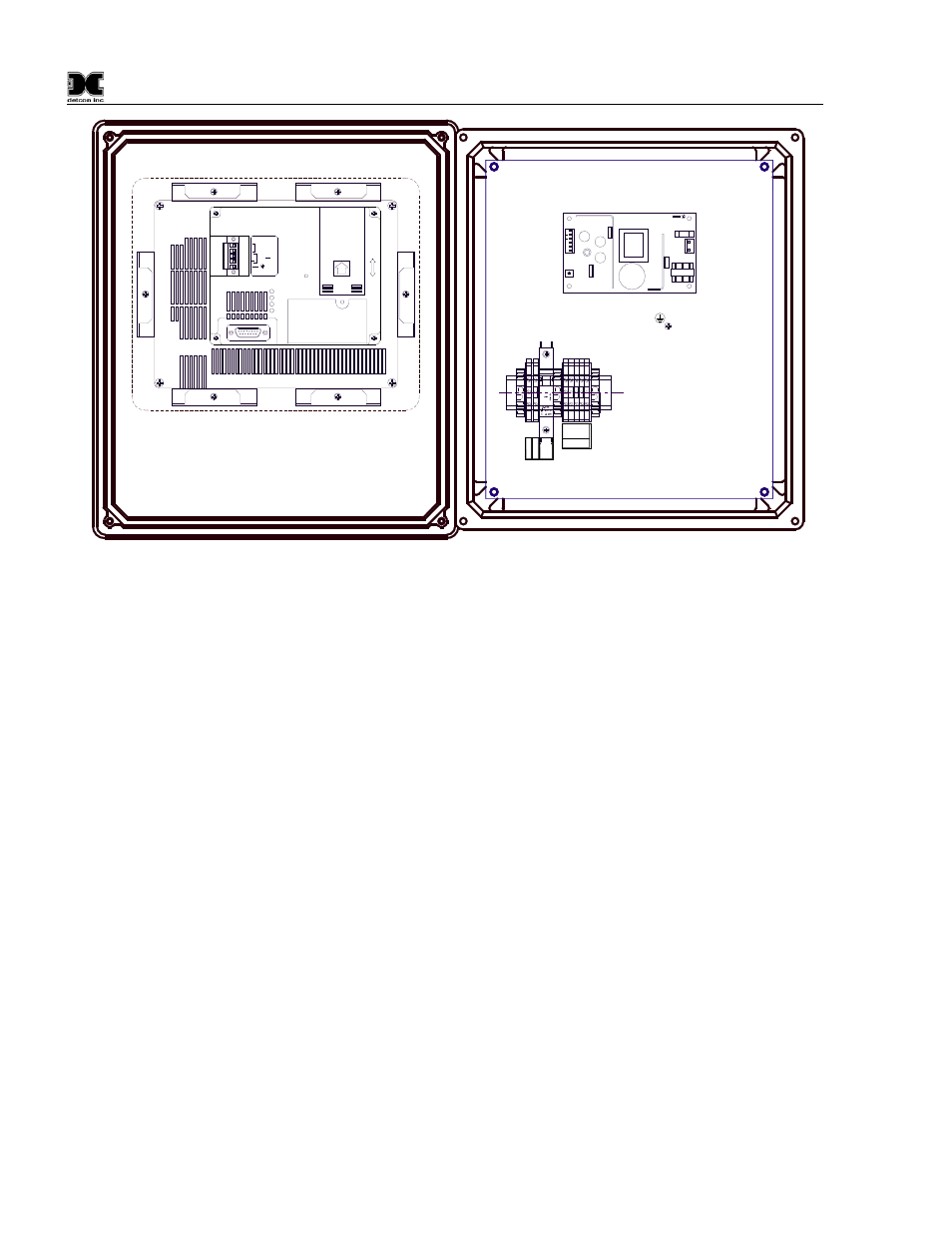

Figure 2 Unit overview
2.2 Specifications
Inputs
RS-422
Outputs
None
Power Input
100-240VAC
50~60Hz
Power Consumption
24W
Display
8” inch diagonal Graphic Backlit LCD Touch screen display
Electrical Classification
NEMA 4 Enclosure
Dimensions
14''W x 16''H x 7''D
Operating Temperature Range
0°C to +45°C
Warranty
One
year
