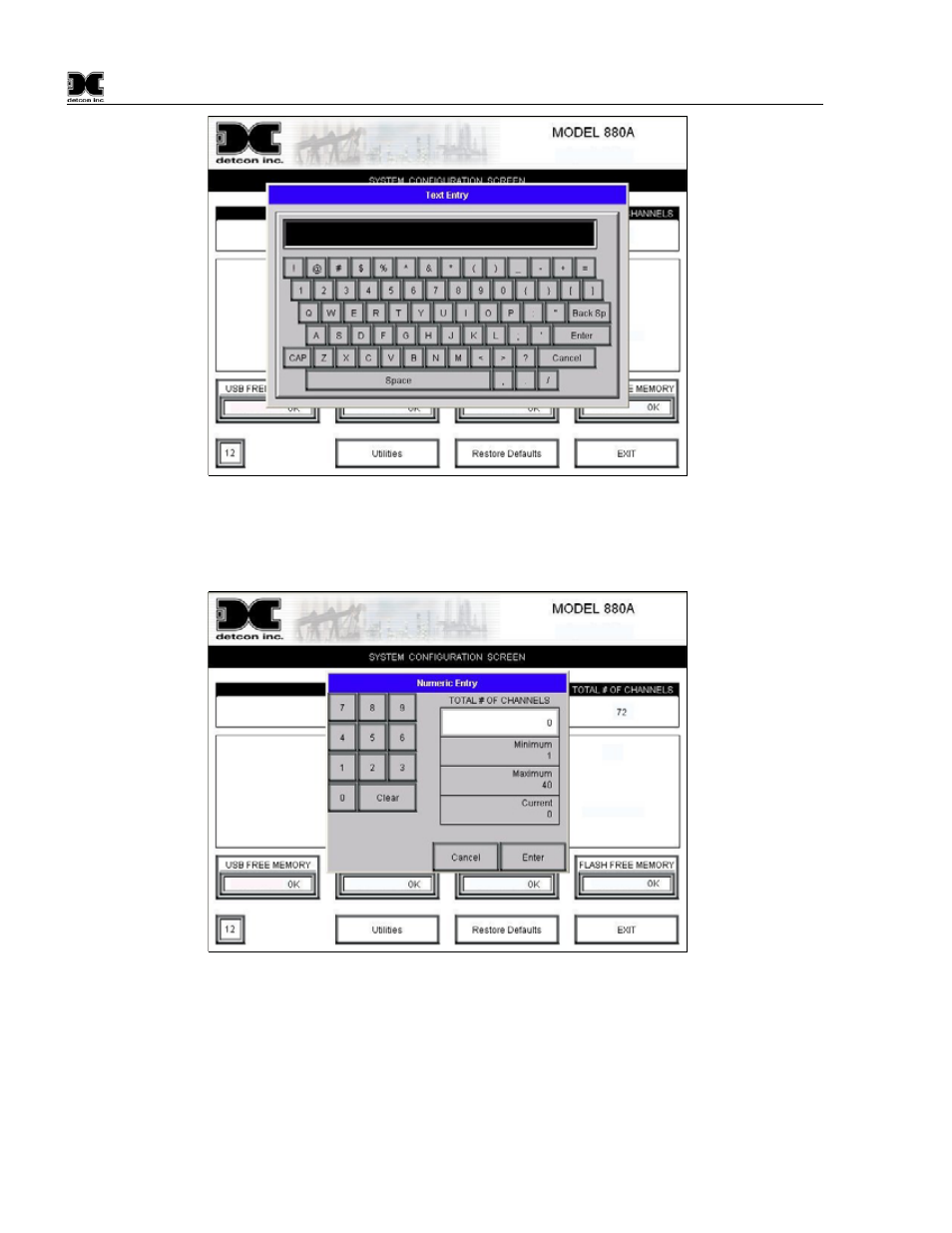

Figure 18 Inputting the Facility Name
4) Select the “TOTAL # OF CHANNELS” Box and input the number of channels that are attached to the
Main 880. This number must match the number entered in the Main 880.
Figure 19 Inputting the number of channels
5) Select the “EXIT” box to exit the “System Configuration Screen” and return to the “Main Screen”.
6) The “Channel Description”, “Gas Type”, and the range decimal point must be setup in the Remote Display
to match the information used to setup the Main 880. Sensor Range and Alarm information should not be
altered at the Remote Display. (This information is transferred over from the Main 880). Using the wand
to select a channel from the “Main Screen” will open that channels corresponding “Channel X Details
Screen” (Figure 20).
