880R-N4X
880R-N4X Instruction Manual Rev. 0.0 Page 7 of 16

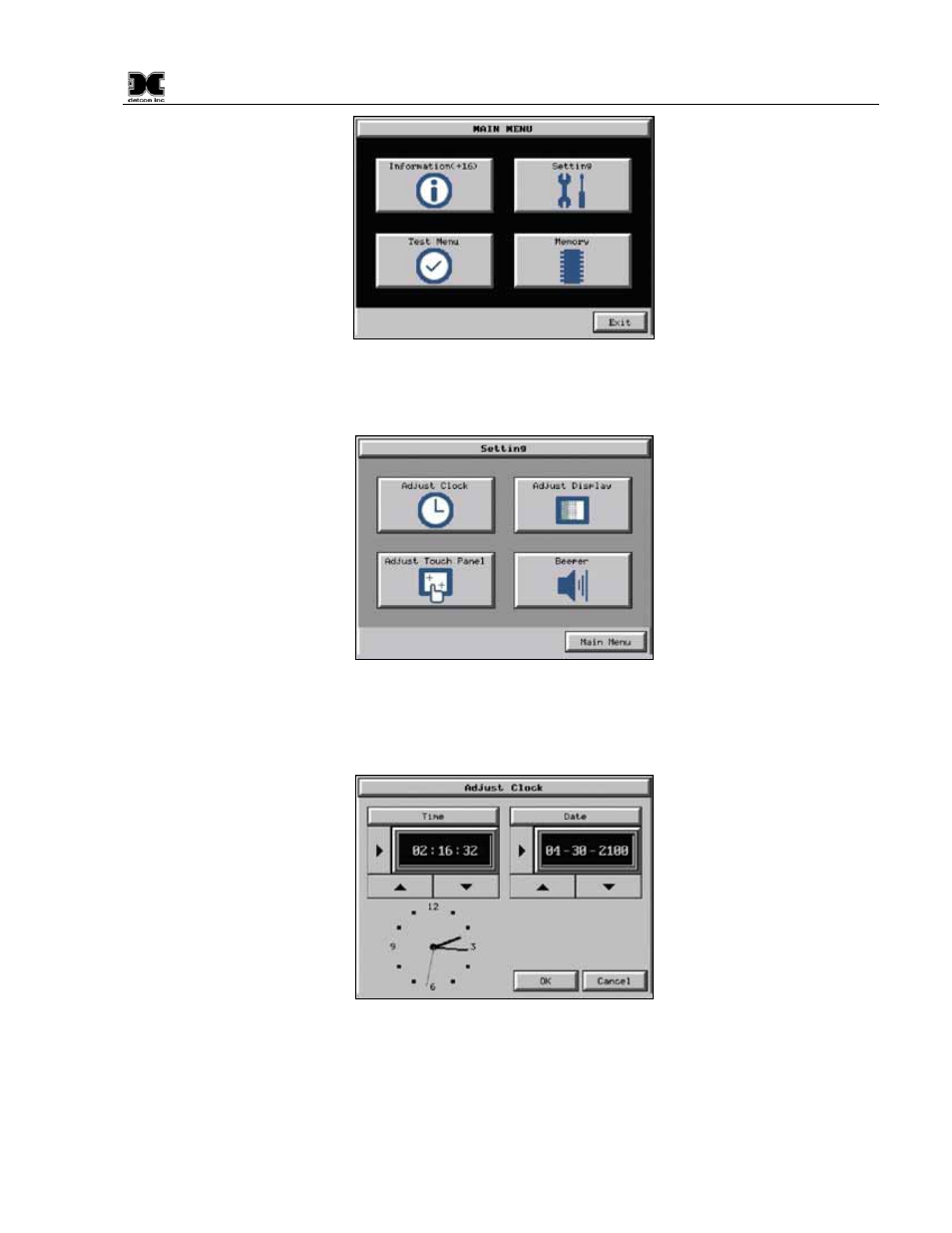

Figure 11 Main Menu
From the Main Menu select the “Setting” button to enter the “Setting” Screen (Figure 12).
Figure 12 Screen Settings
From the “Setting” Screen, select the “Adjust Clock” button to adjust the clock (Figure 13) or the “Adjust
Display” button to adjust the Display Screen (Figure 14).
Figure 13 Clock Adjust Screen
To adjust the Time and Date use the arrow keys. Once the correct time and date have been set, select “OK” to
close the screen. Select “Main Menu” to exit the “Setting” screen, and select “Exit” to exit the Setup screens.
To adjust the display use the arrow keys. Once the display has been adjusted, select “OK” to close the screen.
Select “Main Menu” to exit the “Setting” screen, and select “Exit” to exit the Setup screens.
