Model 1000 H2S Echem
Model 1000 H2S Echem Instruction Manual Rev. 2.8 Page 25 of 30
Spare Parts DM-624 H
2
S Sensor
Part# Description
942-010212-XXX Calibration Span Gas (XXXppm H
2
S, balance nitrogen)
(Where XXX denotes the gas level – 010 = 10ppm, 025 = 25ppm, 050 = 50ppm)
942-010213-XXX Calibration Span Gas (XXX% H
2
S, balance nitrogen)
(Where XXX denotes the gas level – 001 = 1%, 1X5 = 1.5%, 2X5 = 2.5%)
926-245502-XXX Transmitter Module XXXppm Range (for H
2
S Alcohol Free gas sensor)
(Where XXX denotes the Range – i.e.: 005 = 0-5ppm, 010 = 0-10ppm,
020 = 0-20ppm, etc)
4040-H2S32-NXX Sensor Housing Assembly
(Where XX denotes Range – i.e.: N05 = 0-5ppm, N10 = 0-10ppm,
N20 = 0-20ppm, etc.)
404-0H2S3H-NXX Sensor Housing Assembly for High Range
(Where XX denotes Range – i.e.: N1K = 0-1000ppm, N5K = 0-5000ppm,
N1P = 0-1%, etc.)
017-501500-574 O-Ring 1.5”ID X 1.6”OD X 0.05”W
017-26530H-000 O-Ring 1 3/16”ID X 1 3/8”OD X 0.103”W
370-323200-000 Alcohol Free Replacement H
2
S Cell (used for ranges <1000ppm)
370-3H3H00-000 High Range H2S Cell (Used for ranges ≥1000ppm)

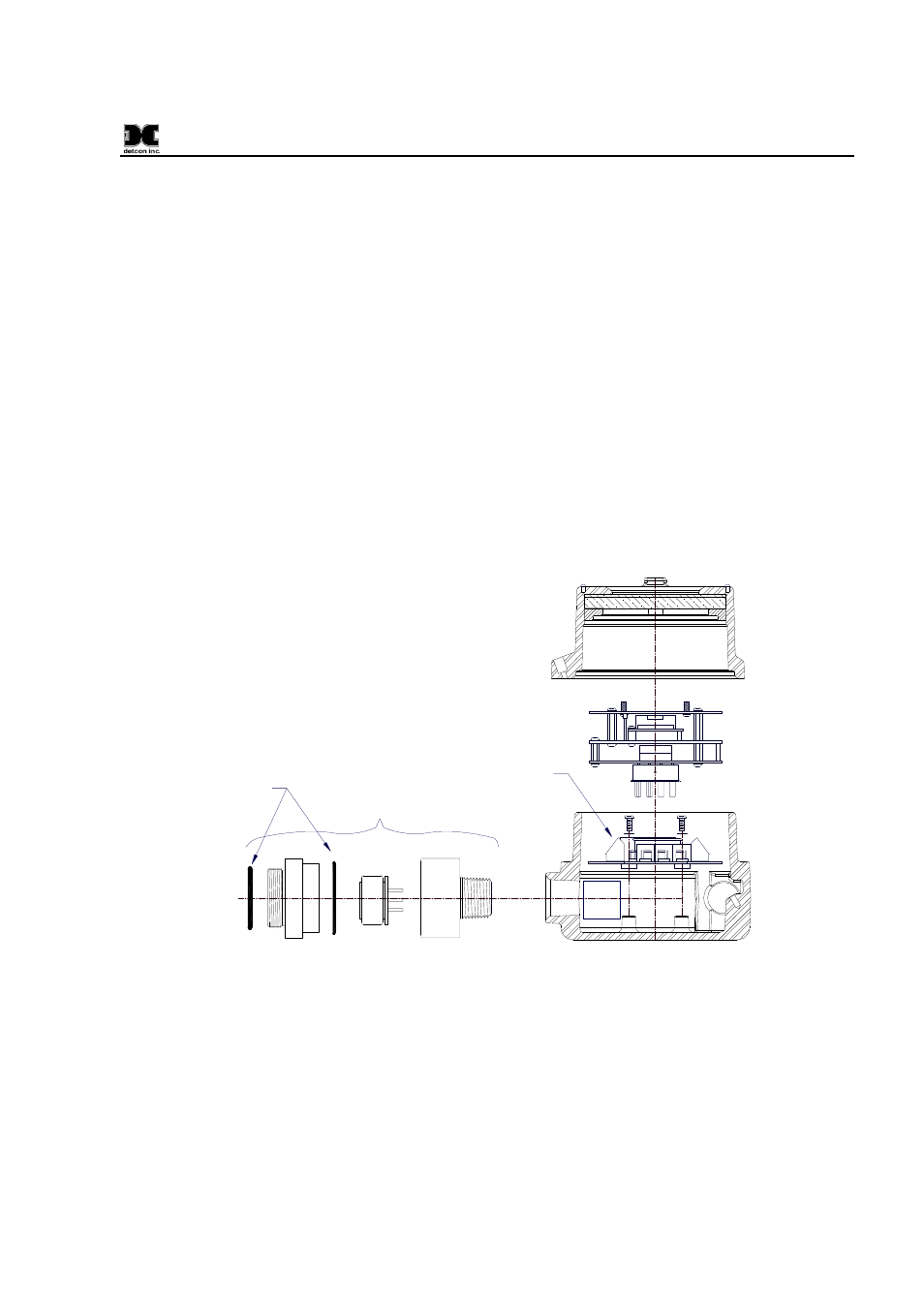

Condulet Cover with
Window
Plug in Transmitter Module
Connector Board
Condulet
Base
Sensor Housing Assembly
Replacement
Cell
O-Rings
Figure 16 DM-624 Replacement Parts
