SW-V1-DV2
SW-V1-DV2 Instruction Manual Rev. 0.0 Page 1 of 7
1.0 Description
The Detcon V1-DV2 Alarm Station is wireless, battery powered alarm station with a 5 Joule. . The unit is
designed for installation and use in Hazardous duty, corrosive work environments rated at Class 1, Division 2,
Groups E, F, and G.

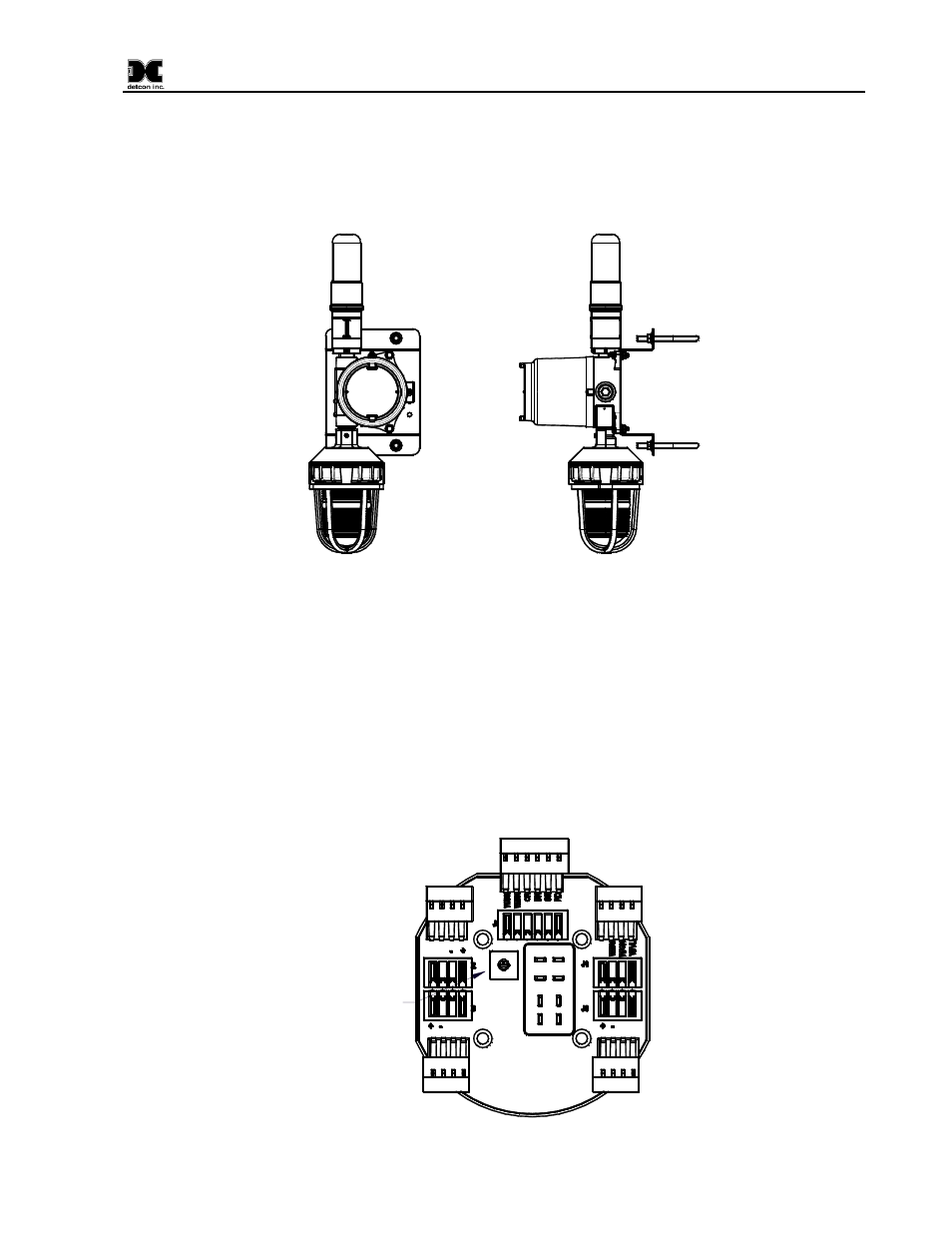

Figure 1 Basic C1D2 Wireless Alarm Stations
The alarm station can be positioned almost anywhere, since the wireless ability of the unit means that there is
no need for running conduit or outside connections. The alarm station is powered by its internal 12V battery
pack. Communication is performed via the Detcon RXT-300 or RXT-320 series of transceivers. Access to the
unit is only necessary for battery maintenance or exchange. With the addition of a solar panel, access can be
kept to periodic functional tests and checks.
Internal wiring between components runs through the Wireless Alarm Interconnect PCA. This PCA controls
the state of the alarm via communication with the Wireless Transceiver. When an alarm is triggered, the
wireless transceiver will provide the interconnect PCA with the signal(s) necessary to activate the alarm.
Alarm
wiring
wiring to/from
Transciever
wiring to/from
Transciever
External
24VDC
connections
Rotary Switch
for Modbus
Address
012 3 4 5 678 9A B C D EF
Figure 2 Wireless Interconnect PCA
