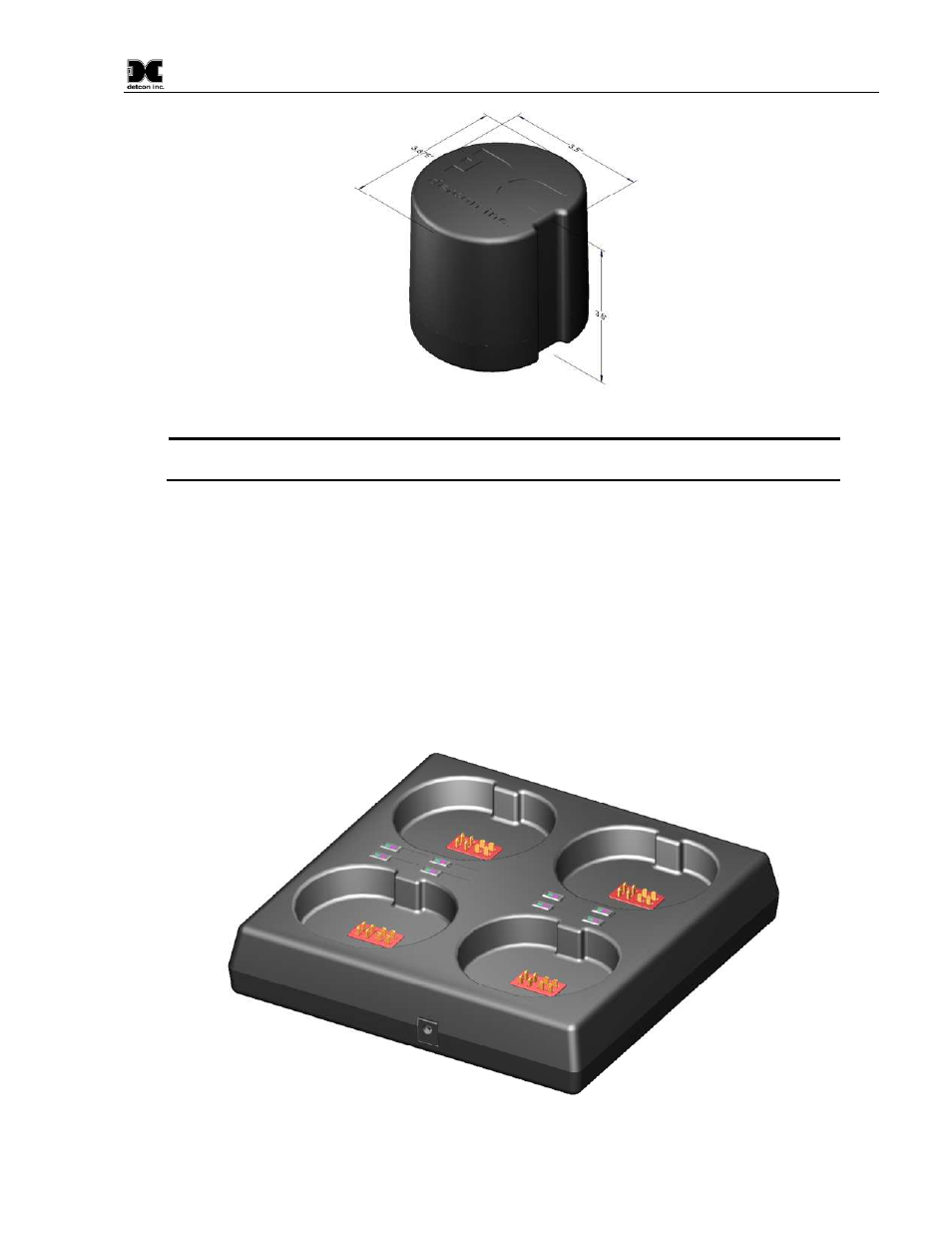

Figure 4 Smart Battery Pack
NOTE: The Wireless Alarm Station can also be powered by a customer provided external DC
power source. Refer to section 2.
1.3 Quad Battery Charger (Optional)
Detcon’s Smart Battery Pack can be charged as needed using Detcon’s optional Quad Battery Charger which
can charge up to four battery packs at one time. The Quad Battery Charger comes with a plug-in AC/DC
adapter that plugs into a standard 120VAC outlet for power. The DC end of the adapter plugs into the DC
power jack of the charger providing 24VDC. The Quad Battery Charger has four charging ports, each with 8-
pin Beau connectors for battery pack connection. The ports and connectors are keyed to prevent incorrect
positioning and connection. Each port has its own “FAULT” LED indicator and “CHARGE” LED indicator
and will display either a red light or green light depending on the status of each battery being
charged. Charging times will vary depending on the charge state of each battery pack, but a full charge of a
depleted battery pack can take up to 24 hours.
Figure 5 Quad Battery Charger
