SW-AV2-DV1
SW-AV2-DV1 Instruction Manual Rev.0.0 Page 6 of 8
3.0 Operation
The Wireless AV2 C1D1 Alarm Stations provide two strobes and a horn. The wireless alarm station is set to
respond to alarms from the controlling unit. The controller has independent control over the strobes and the
Horn, and they will be activated when the appropriate alarm is activated.
All strobes have a flash rate of 1 Hz, one flash per second. The horn has up to 32 possible settings, for use in
different configurations. The default settings of the horn are factory set. The default setting for the Horn is 21
(SW1 and SW2 set to 11010). To change the setting of the horn, remove the horn side of the alarm enclosure,
and set the dip-switches according to the Sound Signals Table. SW1 and SW2 are used to set the horn sound
signal. SW1 and SW2 should be set the same, to insure the correct sound signal.
1 2 3 4 5 SW2
ON
1 2 3 4 5
SW1
ON
LK2
LK1
switches
Strobe/Horn
Combo Alarm PCA
Power and control
wiring on other side of
board

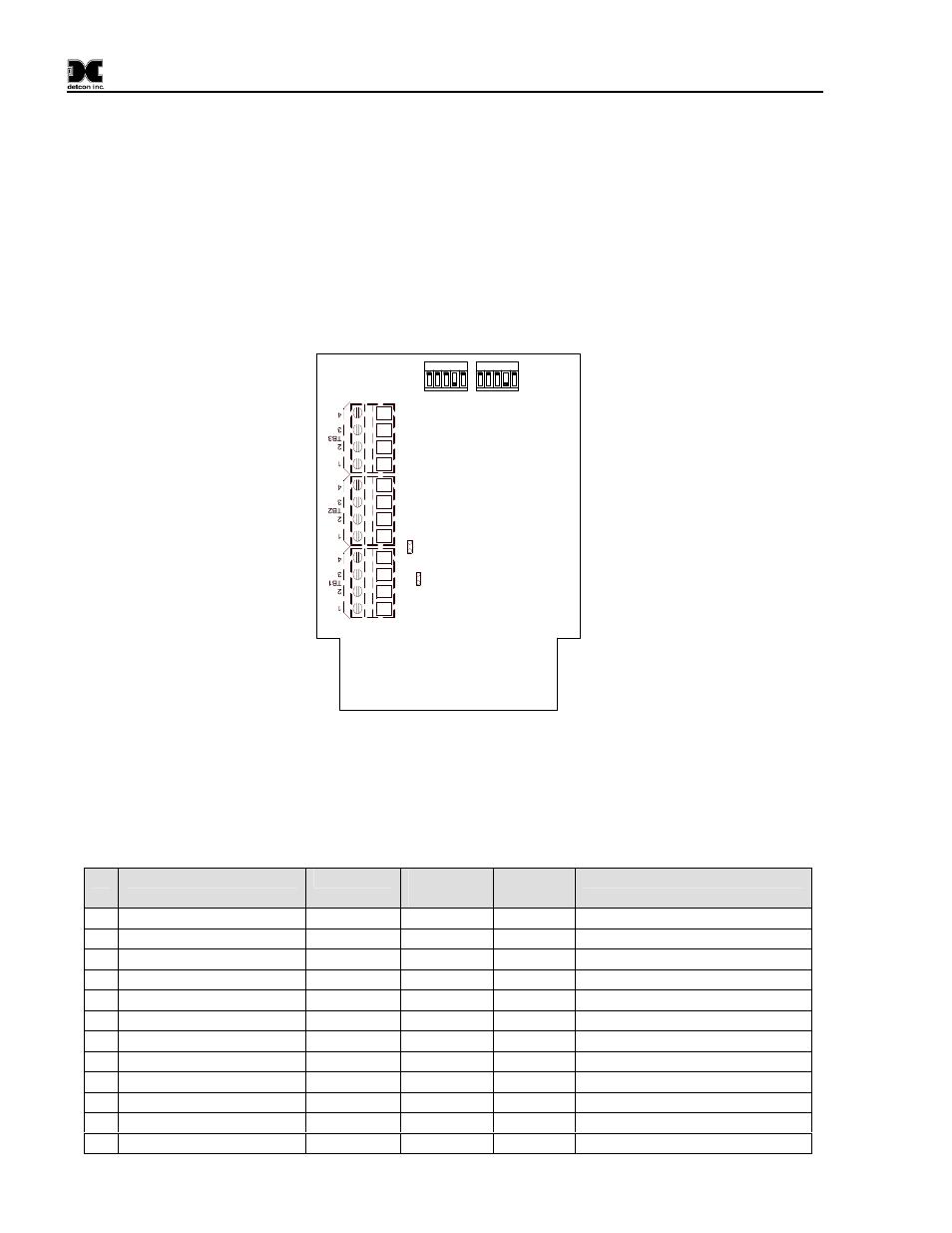

Figure 7 Alarm switch location
To gain access to the switches remove the shroud over the horn by removing the three Philips head screws.
Remove the 4 Allen screws from the horn side of the enclosure, and carefully slide the horn out of the
enclosure. Set the switches as desired and reverse the process to re-assemble the horn.
Table 1 Sound Signals
Sound Signal Frequency Repetition
Rate
Switches
SW1, SW2
Special Applications
1 Alternate two-tone 800-1000 0.5 1 1 1 1 1 Fire Alarms
2 Alternate two-tone 2500-3100 0.5 0 1 1 1 1 Security Alarms
3 Alternate fast two-tone 800-1000 0.25 1 0 1 1 1 Increased Urgency
4 Alternate fast two-tone 2500-3100 0.25 0 0 1 1 1 Security Deterrent
5 Alternate two-tone 440-554 0.4/0.1 1 1 0 1 1 Evacuation Alarm, France
6 Alternate two-tone 430-470 1.0 0 1 0 1 1
7 Alternate v.fast two-tone 800-1000 0.13 1 0 0 1 1
8 Alternate v.fast two-tone 2500-3200 0.07 0 0 0 1 1
9 Alternate two-tone 440-554 2.0 1 1 1 0 1 Turn-out, SWEDEN
10 Continuous note 700 - 0 1 1 0 1 All Clear, SWEDEN
11 Continuous note 1000 - 1 0 1 0 1
12 Continuous note 1000 - 0 0 1 0 1
