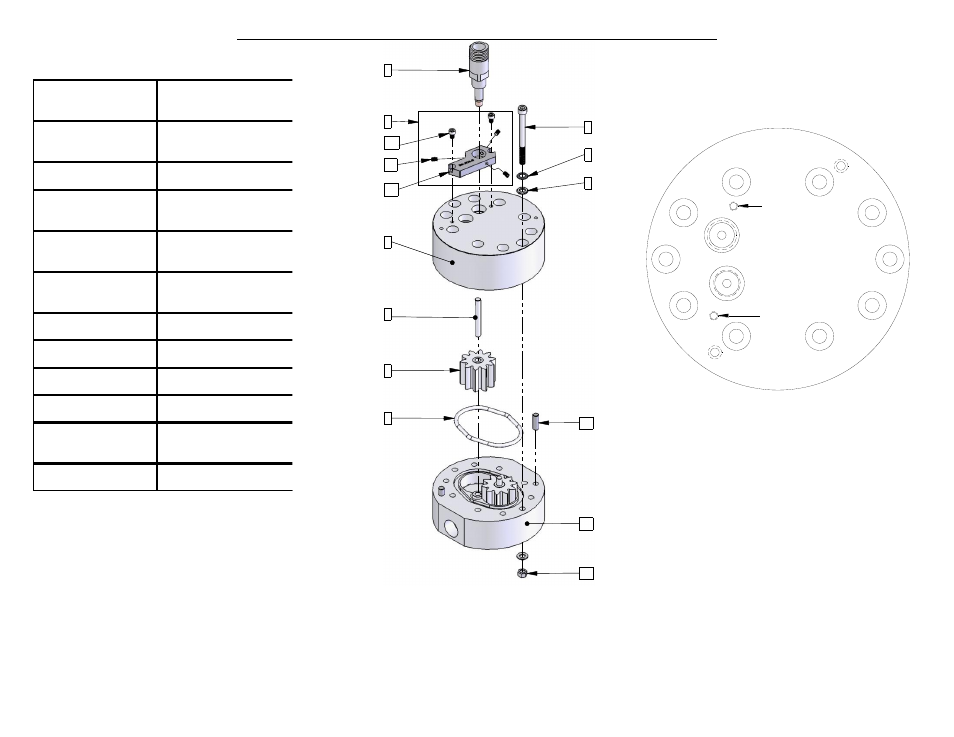

CROSS REFERENCE GUIDE FOR JVK-60 SERIES SPARE PARTS
M4x0.7 x 8mm Screw - 2
[2b]
Included w/ Sensor Adapter
Not sold individually
8-32 x 1/4" Set Screw - 3
[2c]
Included w/ Sensor Adapter
Not sold individually
Bolts - 10
[3] BZ05325
M6 x 1.0 x 70mm
Spring Washers - 10
[4]
SR90350
Stainless Steel
Belleville Spring Washer
Washers - 20
[5]
SR90290
Stainless Steel M6 Flat
Washer
Upper Housing - 1
[6]
BH70010
JUK-60 Kynar Upper
Housing
Shafts - 2
[7] BS21075
JST-60 Ceramic Shaft
PTFE Gears - 2
[8] BG23077
JGR-60 Teflon Gear
PTFE O-Ring - 1
[9] BO20040
COT-04 Teflon O-Ring
Locating Pins - 2
[10] BZ25260
JV-60KL Locating Pin
Lower Housing - 1
[11]
BH70015
JLK-60 Kynar Lower
Housing
Nuts - 10
[12] SR90295
Stainless Steel M6 Nut
1
2
2a
2b
2c
3
4
5
6
7
8
9
10
11
12
ENGLISH
. XXXX +/- .0005
.XXX +/- .001
.XX +/- .005
FRAC. +/- 1/64
ANG. +/- 1/2 DEG
SURFACE FINISH: 64 MAX
TOLERANCES UNLESS NOTED
THIS PRINT, INCLUDING THE INFORMATION
CONTAINED IN IT IS THE PROPERTY OF AW COMPANY.
IT IS CONSIDERED PROPRIETARY IN NATURE AND
MAY NOT BE USED OR DISCLOSED OUTSIDE OF
AW COMPANY, EXCEPT UNDER PRIOR WRITEN
AGREEMENT. ANY MODIFICATIONS MADE TO OR
COMMENTS WRITTEN ON THIS DRAWING
BY UNAUTHORIZED PERSONNEL WILL VOID
THIS DRAWING. ALL DIMENSIONS SHOWN
ARE SUBJECT TO CHANGE WITOUT NOTICE.
AW COMPANY USE ONLY
TITLE: --
PART NUMBER: --
DRAWING NUMBER: Exploded - 120407
DRAWN BY: -- REV:
DATE: 12/4/2007
CHECKED BY: -- PAGE: 1 OF 1 SCALE: 1:10
AW COMPANY
8809 INDUSTRIAL DR.
FRANKSVILLE, WI 53126
TEL. # (262) 884-9800
FAX. # (262) 884-9810 PURCHASED PART
NOTES:
MATERIAL: -- 1.
BREAK EDGES MAX .005" 2.
ALL PARTS MUST BE CLEAN AND FREE OF PARTICLES. 3.
REV. DESCRIPTION DATE BY
Recommended Bolt Torque Pattern
#s 1-10
2
3
4
1
HT
HT
5
HT
6
HT
A
B
Holes Labeled “HT” = Hand Tight
Holes labeled “A” & “B” are sensor bracket
mounting holes.
