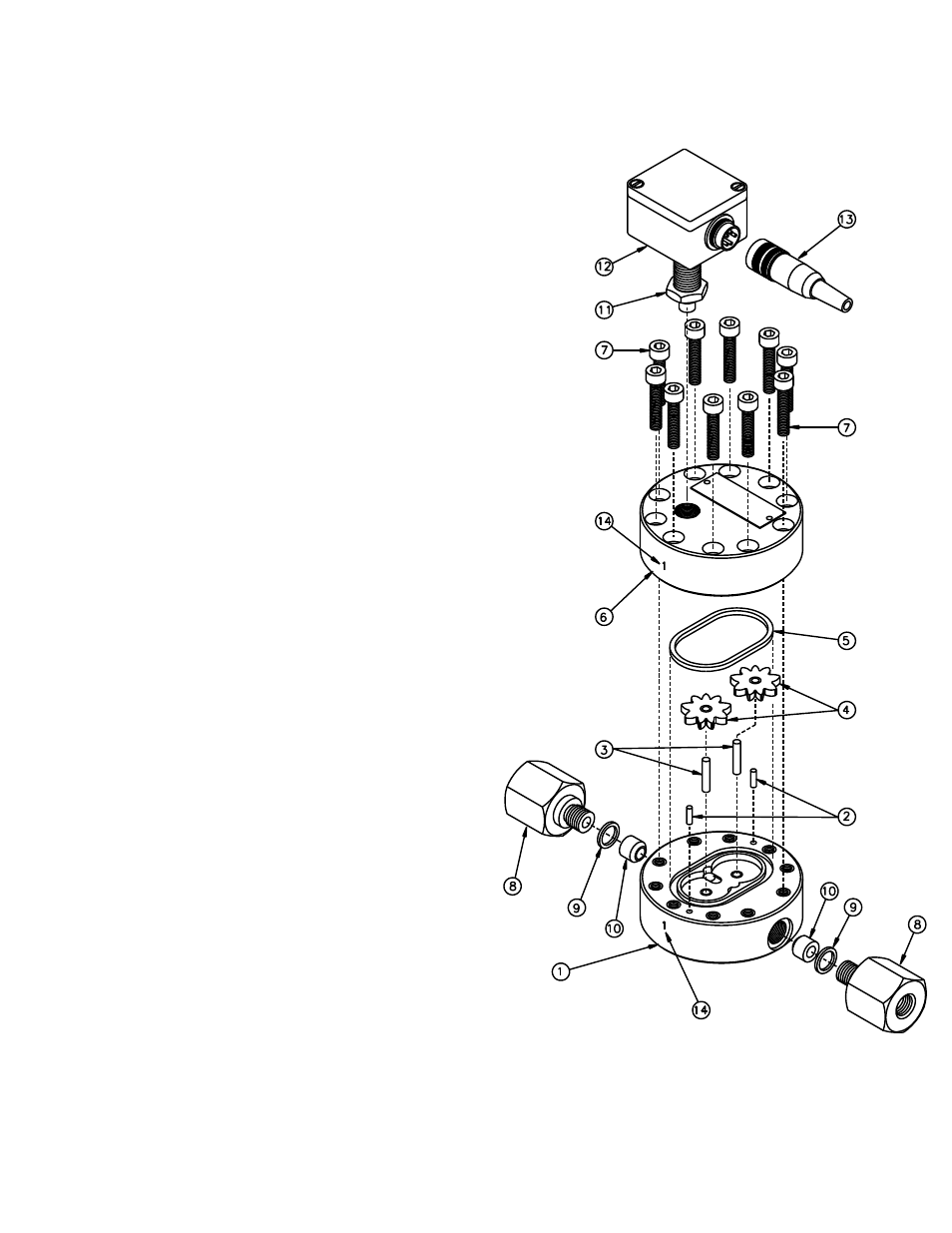

Cross Reference Guide for ZHM Series Spare Parts for ZHM Meters
1 - Lower Housing (303 Stainless Steel)* Pt.# LH-**
2 - Stainless Steel Locating Pins Pt.# LP
3 - Tungsten Carbide Shafts Pt.# ST-**
4 - Stainless Steel Gear* Pt.# GR-**
5 - O-ring
Pt.# COV-** Black FKM O-ring
COT-** White PTFE O-ring
6 - Upper Housing (303 Stainless Steel)*
Pt.# UH-**
7 - HEX Socket Cap Screw* Pt.# SC-**
8 - Port Adaptor/Conversion Fitting
Pt.# NPT-ZHM 01-03 12mm to 1/4" NPT
GRA-ZHM 01-03 12mm to 3/8" NPT
HEC-ZHM 01-03 12mm to 1/2" NPT
SAE-01-03 12mm to 3/4" SAE
NPT-ZHM 04 20mm to 3/4" NPT
NPT-ZHM 05 33mm to 1.0" NPT
9 - Crushable Aluminum Washer
Pt.# WAL-ZHM
10 - Teflon Space Filler
Pt.# SF-ZHM 01
SF-ZHM 02/1-03
11 - Lock Nut for Hall Sensor Pickup Pt.# LN
12 - Hall Sensor Pickup
Pt.# HESKS1 (For ZHM 01-04)
HESLS1 (For ZHM 04 & up)
HDSXS1 (Double Effect Sensor)
13 - 5 Pin Connector for HES & HD Sensors
Pt.# AMP-HES
14 - Index Marks that appear on the Upper and Lower
Housings. This is not a spare part.
* Standard material is 303 stainless steel. A special 316TI
alloy is available and is indicated after the part number as
follows: ZHM 02TI or GR 02TI.
** Indicates ZHM Series Flow Meter Size
