Van Air Systems Dew Point Meter 46-2529 2-02 - Manual (Page 2)

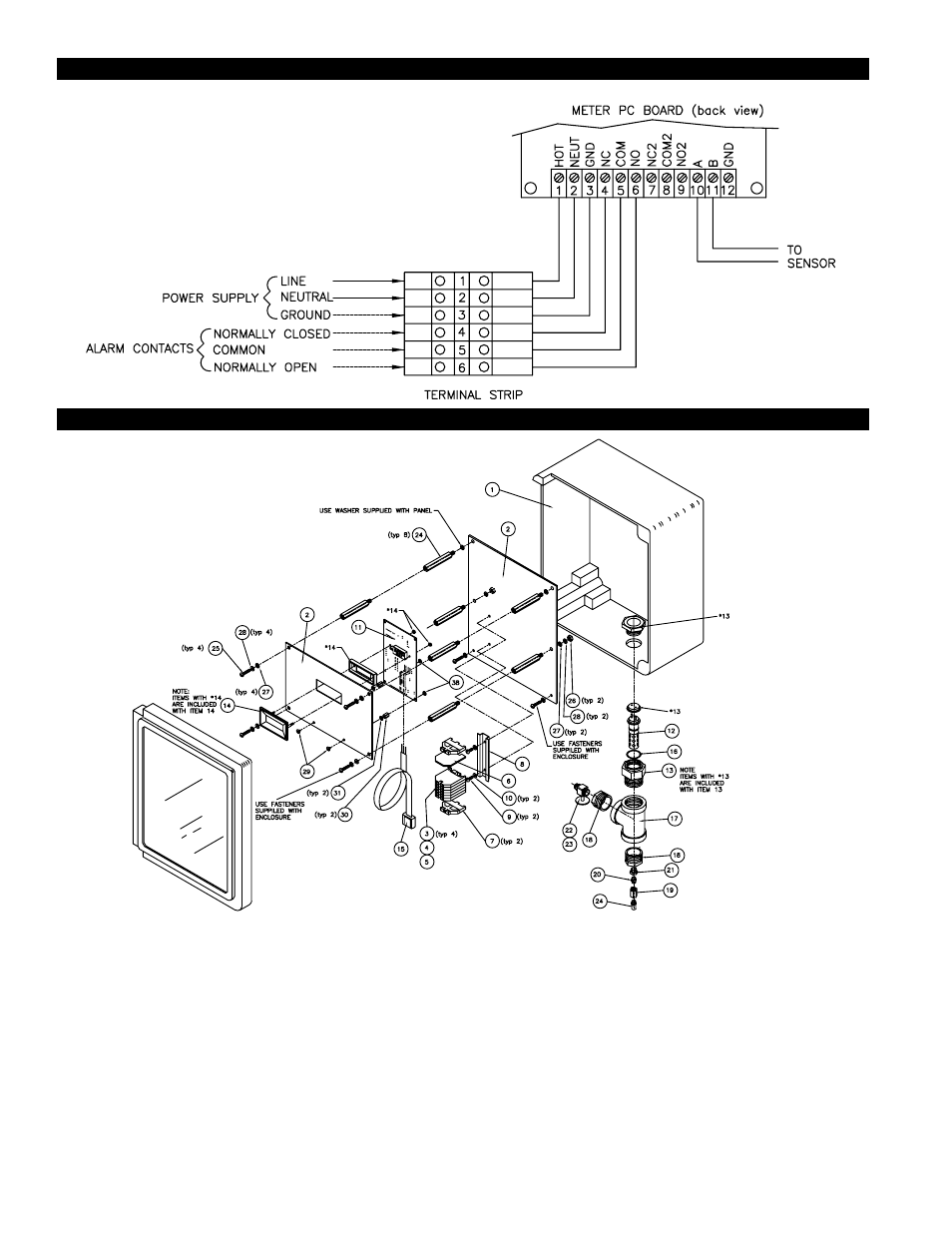

WIRING DIAGRAM SECTION 3
REPLACEMENT PARTS SECTION 4
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
QTY
1
2
4
1
1
1
2
.5'
2
2
1
1
1
1
1
1
DESCRIPTION
Enclosure
Panel
Terminal, Grey
Terminal, Blue
Terminal, Ground
End piece
End clamp
Channel
Screw, 8-32UNF x 1/2"lg
Lockwasher, #8 nom
Meter, (humistat)
Sensor
Sensor mount
Meter bezel
Cable
O-Ring
PART NO.
27-1114
27-1082
26-0380
26-1391
26-1392
26-2053
26-0388
26-0389
28-0204
28-0314
26-5977
26-5978
26-0816
26-5979
46-2185
18-0249
ITEM
17
18
19
20
21
22
23
24
33
34
35
36
37
38
39
40
QTY
1
2
1
1
1
1
1
1
4
4
2
6
6
4
2
2
DESCRIPTION
Tee 1" NPT
Bushing 1" x 1/4" NPT
Choke fitting
Short coupling 10-32
Reducing fitting 1/4" x 10-32
Needle valve
Fitting nut & sleeve assy
Sintered filter
Standoff
Screw, 10-32UNF x 1/2"lg
Nut, 10-32UNF
Washer flat, #10 nom
Lockwasher, #10UNF nom
Screw, 6-32UNF x 1/4"lg
Standoff
Lockwasher, #6 nom
PART NO.
14-1807
14-1808
26-0490
26-0657
26-0296
14-1306
26-3043
26-0623
26-6805
28-0203
28-1062
28-0323
28-0312
28-1321
26-6006
28-0324
