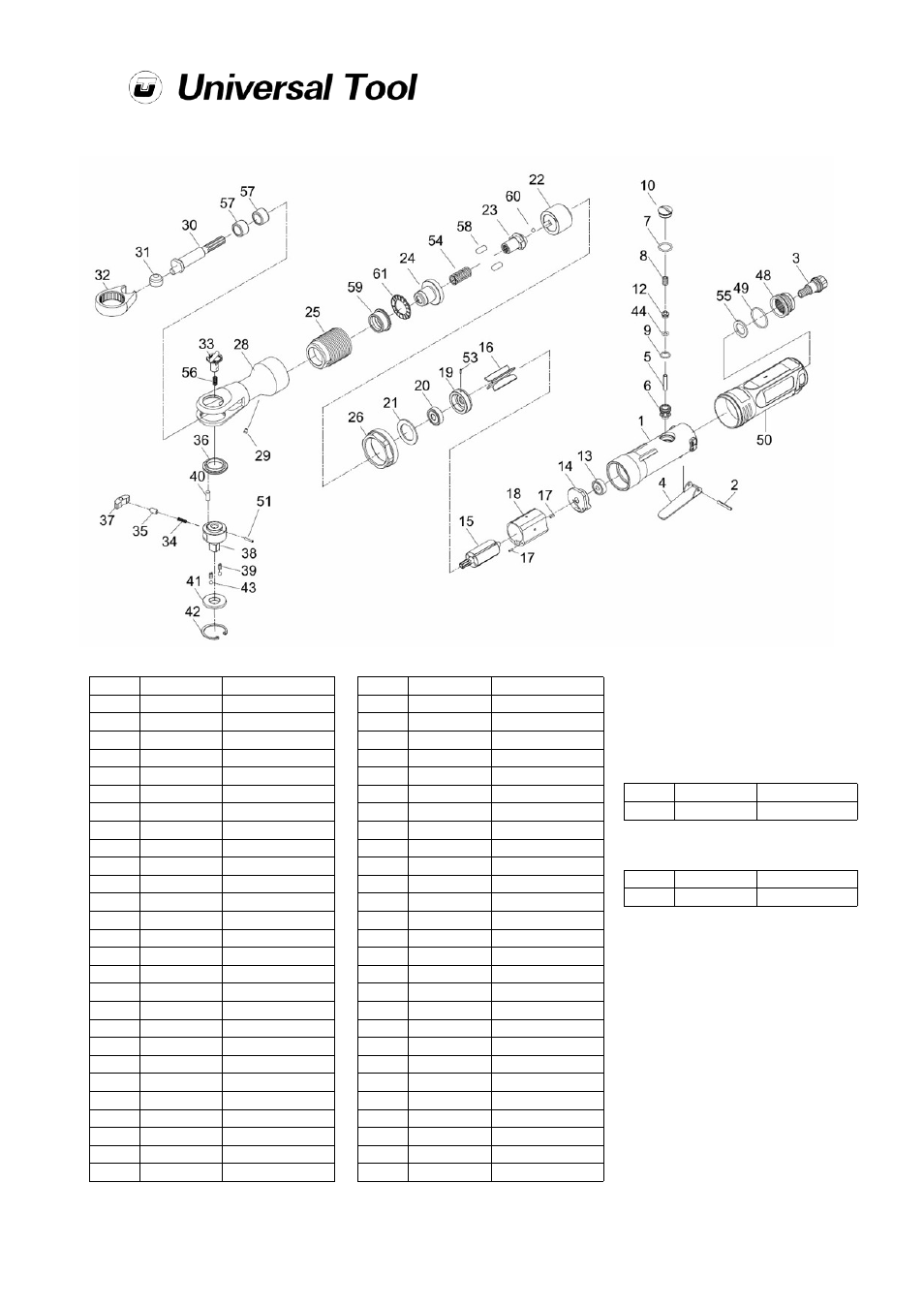

UT8001R 3/8" Ratchet Wrench
UT8011R 1/2" Ratchet Wrench
Page No 3 Apr 2012 Ver 1.00
Ref No Part No Description
1 8001R-01 Housing
2 8001R-02 Spring Pin
3 8001R-03 Air Inlet
4 8001R-04 Throttle Lever
5 8001R-05 Throttle Shaft
6 8001R-06 Bushing
7 8001R-07 O-Ring
8 8001R-08 Spring
9 8001R-09 O-Ring
10 8001R-10 Valve Plug
12 8001R-12 Throttle Valve
13 8001R-13 Ball Bearing
14 8001R-14 Rear End Plate
15 8001R-15 Rotor
16 8001R-16 Rotor Blade (4)
17 8001R-17 Spring Pin (2)
18 8001R-18 Cylinder
19 8001R-19 Front End Plate
20 8001R-20 Ball Bearing
21 8001R-21 Washer
22 8001R-22 Mechanism Housing
23 8001R-23 Mechanism Anvil
24 8001R-24 Mechanism Cover
25 8001R-25 Coupling Sleeve
26 8001R-26 Coupling Nut
28 8001R-28 Ratchet Housing
29 8001R-29 Oil Cap
Common spare parts
Ref No Part No Description
30 8001R-30 Crank Shaft
31 8001R-31 Drive Bushing
32 8001R-32 Yoke
33 8001R-33 Reverse Button
34 8001R-34 Spring
35 8001R-35 Lock Pin
36 8001R-36 Washer
37 8001R-37 Ratchet Pawl
39 8001R-39 Spring (2)
40 8001R-40 Pin
41 8001R-41 Thrust Washer
42 8001R-42 Retainer Ring
43 8001R-43 Steel Ball (2)
44 8001R-44 O-Ring
48 8001R-48 Deflector
49 8001R-49 O-Ring
50 8001R-50 Grip
51 8001R-51 Pin
53 8001R-53 Spring Pin
54 8001R-54 Spring
55 8001R-55 Damping Material
56 8001R-56 Spring
57 8001R-57 Needle Bearing (2)
58 8001R-58 Pin
59 8001R-59 Bushing
60 8001R-60 Steel Ball
61 8001R-61 Thrust Bearing
For 3/8” UT8001R
Ref No Part No Description
38 8001R-38 3/8" Ratchet Anvil
Ref No Part No Description
38 8011R-38 1/2" Ratchet Anvil
For 1/2” UT8011R
