Universal Air Tools HP180LI - Manual (Page 3)

HP180LI
Page No 3 Dec 2013 Ver 1.00

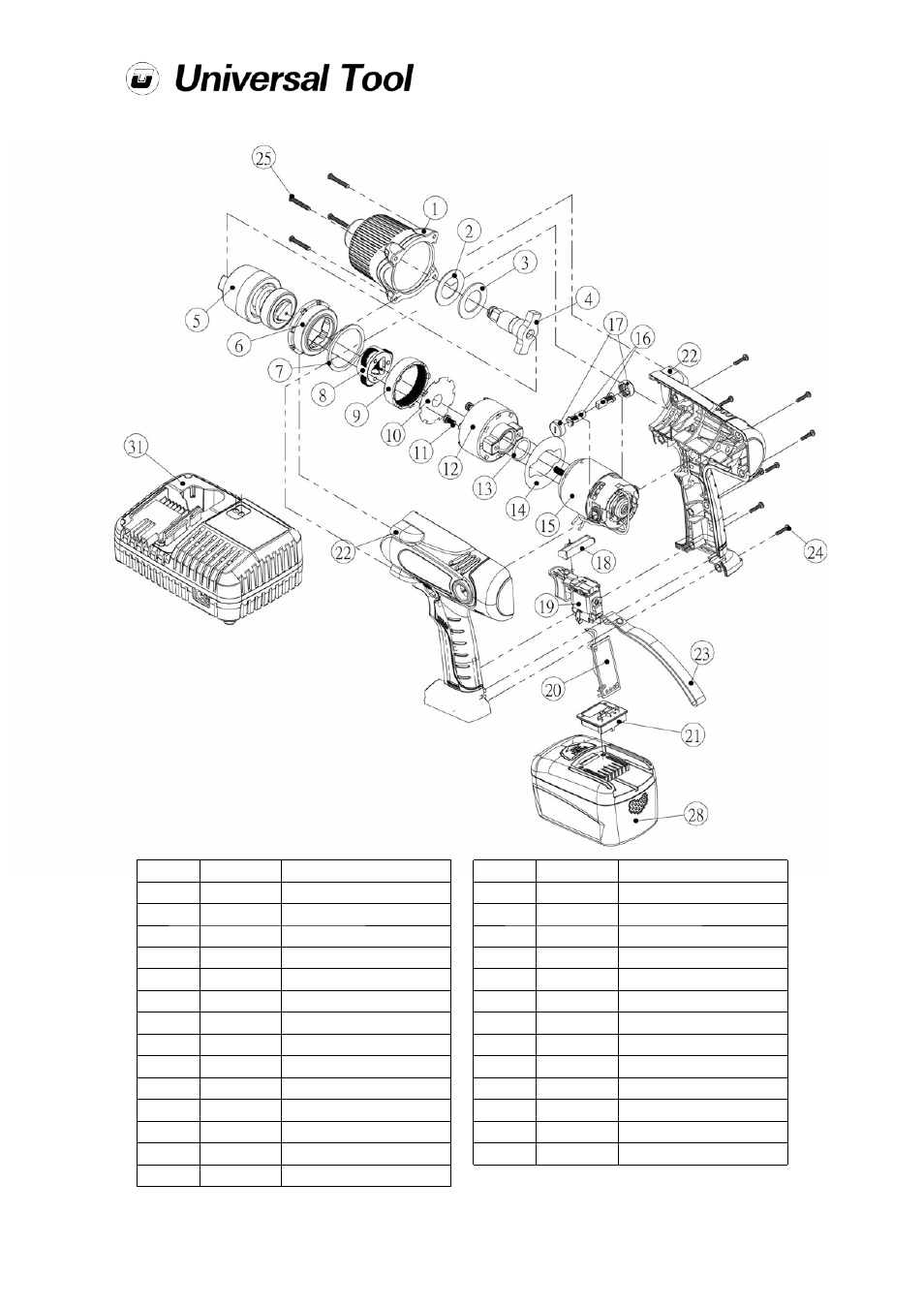

18V Lithium-Ion Cordless 1/2” Impact Wrench
Ref No Part No Description
15 HP180-15 Motor Assy
16 HP180-16 Carbon Brush (2)
17 HP180-17 Carbon Brush Nut (2)
18 HP180-18 Forward/Reverse Rod
19 HP180-19 Main Switch
20 HP180-20 Discharge Protector
21 HP180-21 Battery Connector
22 HP180-22 Main Housing L&R
23 HP180-23 Belt
24 HP180-24 Body Screw (8)
25 HP180-25 Front Cover Screw (4)
28 HP180BAT Battery Pack
31 HP180BC Charger
Ref No Part No Description
1 HP180-01 Front Cover Assy
2 HP180-02 Rubber Washer
3 HP180-03 Washer
4 HP180-04 Front Impact Assy
5 HP180-05 Rear Impact Assy
6 HP180-06 Bearing Holder
7 HP180-07 Rubber Washer
8 HP180-08 Planetary Gears Assy
9 HP180-09 Ring Gear
10 HP180-10 Washer
11 HP180-11 Screw (2)
12 HP180-12 Gear Box Cover
13 HP180-13 O-Ring
14 HP180-14 Pad
