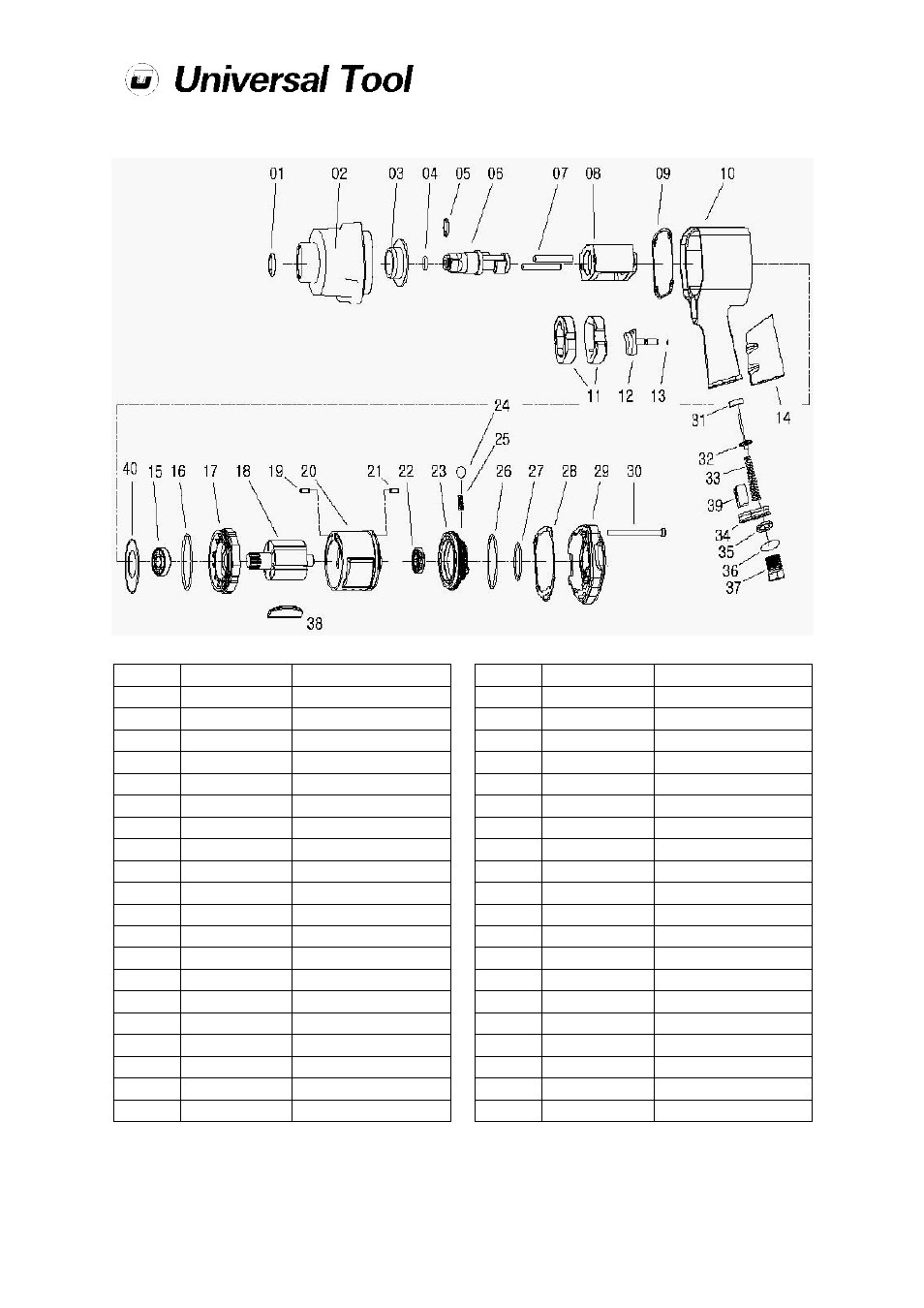

UT8327 3/4” High Power Pistol Grip Impact Wrench
Page No 3 Sep 2009 Ver 1.00
Ref No Part No Description
1 1982TA01 Oil Seal
2 1982TA02 Hammer Case
3 1982TA03 Bushing
4 1982TA04 O-Ring
5 1982TA05 Anvil Collar
6 1982TA06 Anvil
7 1982TA07 Hammer Pin (2)
8 1982TA08 Hammer Cage
9 1982TA09 Front Gasket
10 1982TA10 Motor Housing
11 1982TA11 Hammer Dog (2)
12 1982TA12 Trigger
13 1982TA13 O-Ring
14 1982TA14 Rubber
15 1982TA15 Ball Bearing
16 1982TA16 O-Ring
17 1982TA17 Front Plate
18 1982TA18 Rotor
19 1982TA19 Spring Pin
20 1982TA20 Cylinder
Ref No Part No Description
21 1982TA21 Spring Pin
22 1982TA22 Ball Bearing
23 1982TA23 Reverse Lever
24 1982TA24 Pin
25 1982TA25 Spring
26 1982TA26 O-Ring
27 1982TA27 O-Ring
28 1982TA28 Rear Gasket
29 1982TA29 Rear Cover
30 1982TA30 Screw (4)
31 1982TA31 Retainer
32 1982TA32 Valve Stem
33 1982TA33 Spring
34 1982TA34 Exhaust Deflector
35 1982TA35 Washer
36 1982TA36 O-Ring
37 1982TA37 Hose Adaptor
38 1982TA38 Rotor Blade (6)
39 1982TA39 Muffler
40 1982TA40 Washer
