Universal Air Tools UT8419 - Manual (Page 3)

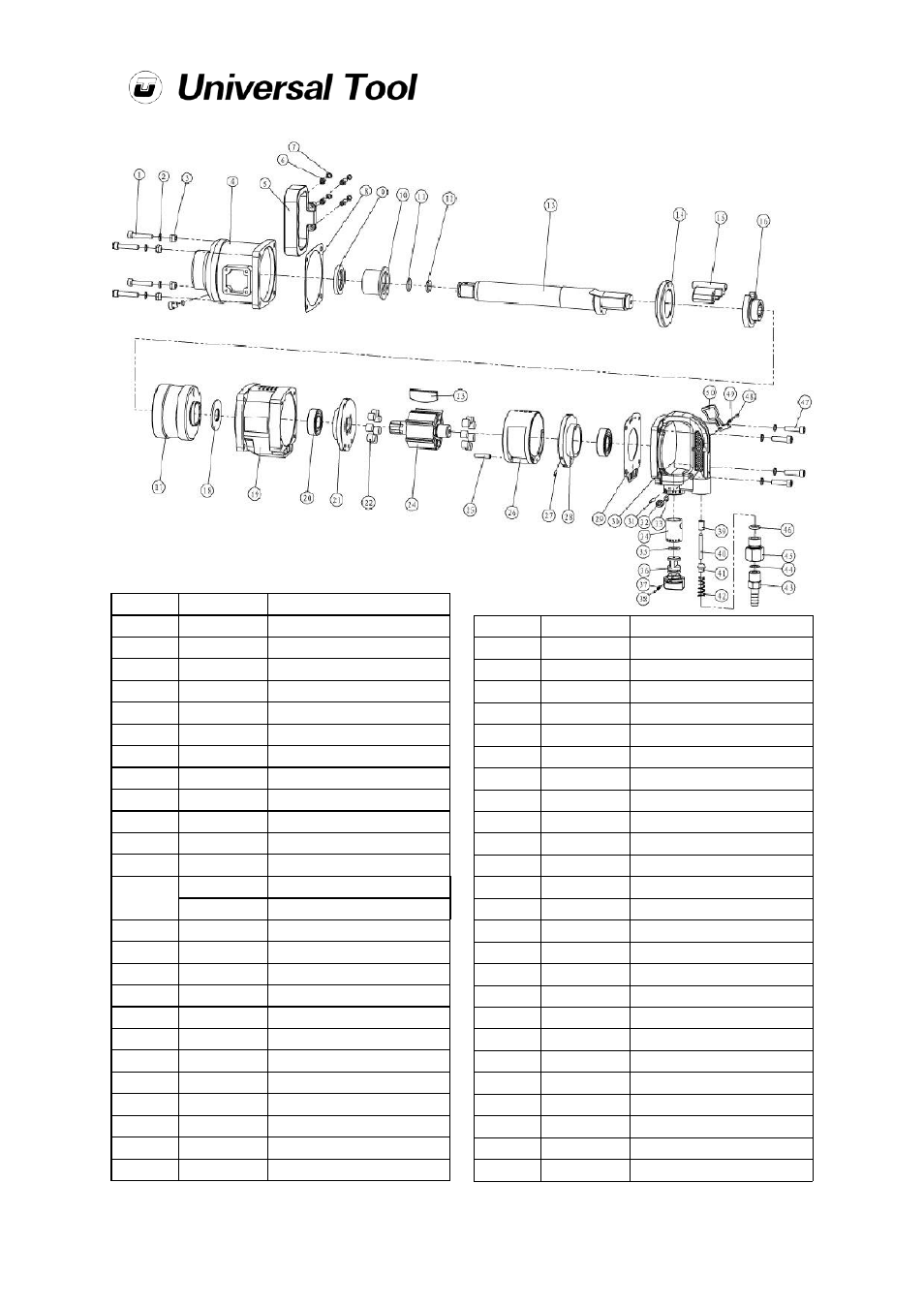

UT8419 1" Impact Wrench with 8” Extended Anvil
Page No 3 May 2011 Ver 1.10
Ref No Part No Description
26 979326 Cylinder
27 979327 Spring Pin
28 979328 Rear End Plate
29 979329 Gasket
30 979330 Back Handle
31 979331 Spring Pin
32 979332 Screw (2)
33 979333 O Ring (2)
34 979334 Valve Bushing
35 979335 O Ring
36 979336 Direction Pole
37 979337 Spring
38 979338 Steel Ball
39 979339 Throttle Bushing
40 979340 Trigger Pin
41 979341 Plug
42 979342 Spring
43 979343 Hose Connector
44 979344 Inlet Screen
45 979345 Air Inlet
46 979346 O Ring
47 979347 Screw
48 979348 Spring Pin
49 979349 Spring Pin
50 979350 Trigger
Ref No Part No Description
1 979301 Screw (4)
2 979302 Spring Washer (8)
3 979303 Lock Nut (4)
4 979304 Hammer Case
5 979305 Side Handle
6 979306 Screw (4)
7 979307 Spring Washer (4)
8 979308 Gasket
9 979309 Oil Seal
10 979310 Anvil Bushing
11 979311 Circlip
12 979312 O-Ring
13
979313 Anvil
979313S Anvil (Short)
14 979314 Hammer Bushing
15 979315 Hammer Dog
16 979316 Cam
17 979317 Hammer Cage
18 979318 Washer
19 979319 Motor Housing
20 979320 Bearing
21 979321 Front End Plate
22 979322 Plastic Plug (14)
23 979323 Rotor Blade (7)
24 979324 Rotor
25 979325 Spring Pin (2)
