Universal Air Tools UT8138 - Manual (Page 3)

UT8138 1/2" Impact Wrench
Page No 3 Sep 2013 Ver 1.00

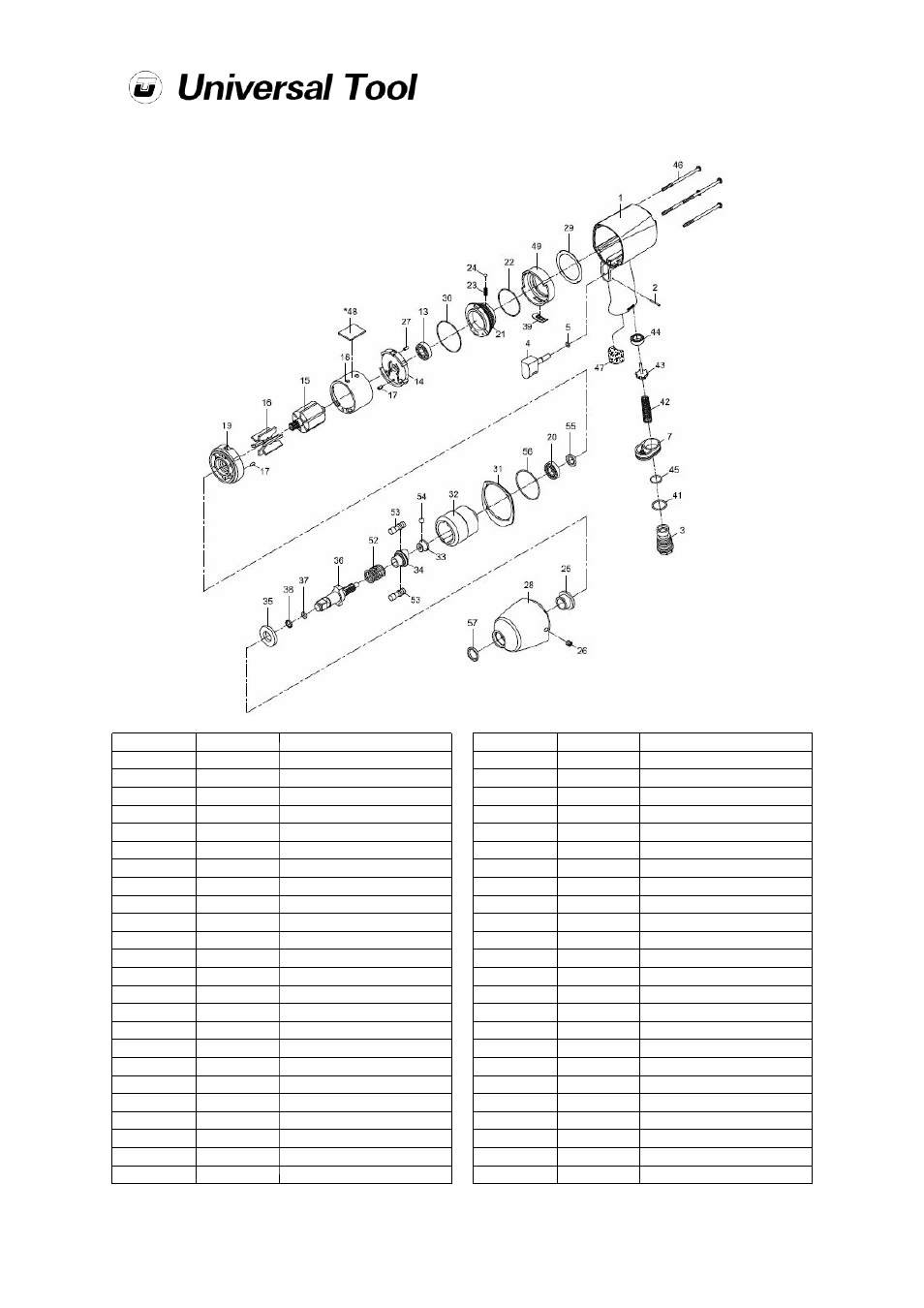

Ref No Part No Description
1 8138-01 Motor Housing
2 8138-02 Spring Pin
3 8138-03 Air Inlet
4 8138-04 Trigger
5 8138-05 O-Ring
7 8138-07 Exhaust Diffuser
13 8138-13 Ball Bearing
14 8138-14 Rear End Plate
15 8138-15 Rotor
16 8138-16 Rotor Blade (6)
17 8138-17 Spring Pin (2)
18 8138-18 Cylinder
19 8138-19 Front End Plate
20 8138-20 Ball Bearing
21 8138-21 Air Regulator
22 8138-22 O-Ring
23 8138-23 Spring
24 8138-24 Steel Ball
25 8138-25 Anvil Bushing
26 8138-26 Set Screw
27 8138-27 Spring Pin
28 8138-28 Hammer Case
29 8138-29 Gasket
30 8138-30 O-Ring
Ref No Part No Description
31 8138-31 Gasket
32 8138-32 Hammer Cage
33 8138-33 Cam Ball Pilot
34 8138-34 Cam
35 8138-35 Washer
36 8138-36 Anvil
37 8138-37 O-Ring
38 8138-38 Retaining Ring
39 8138-39 Gasket
41 8138-41 O-Ring
42 8138-42 Valve Spring
43 8138-43 Valve Stem
44 8138-44 Rubber Spacer
45 8138-45 O-Ring
46 8138-46 Screw (4)
47 8138-47 Muffler Material
48 8138-48 Muffler Material
49 8138-49 Inlet Guide
52 8138-52 Spring
53 8138-53 Hammer Pin (2)
54 8138-54 Stell Ball
55 8138-55 Oil Seal
56 8138-56 O-Ring
57 8138-57 Oil Seal
