Universal Air Tools HP17RD - Manual

Manufacturer/Supplier Product Type RPM
Cycles Per Min
Tel No Fax No (01494) 883300 (01494) 883237
Model No/Nos Serial No (if any)
Product Nett Weight Recommended Use Of
Balancer Or Support
Recommended Hose Bore
Size - Minimum
Recommended Max.
Hose Length
Ins M/M Ft M
Foreseen Use Of Tool
This drill is designed for the purpose of drilling holes in all types of
materials, i.e. metals, wood, stone, plastics etc. using drilling bits
designed for this purpose. It may be used with other forms of cutting
tools, polishing devices or for sanding using coated abrasive products.
Before using any such products first check with the manufacturer their
suitability for use with this type of drill. Do not use bonded abrasive
products (i.e. grinding wheels) or saw blades or any device which has a
permitted safe working speed less than the free speed of the drill.
Do not use this drill for any other purpose than that specified without
consulting the manufacturer or the manufacturer's authorised supplier.
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the trigger
fully depressed. Use recommended hose size and length. It is

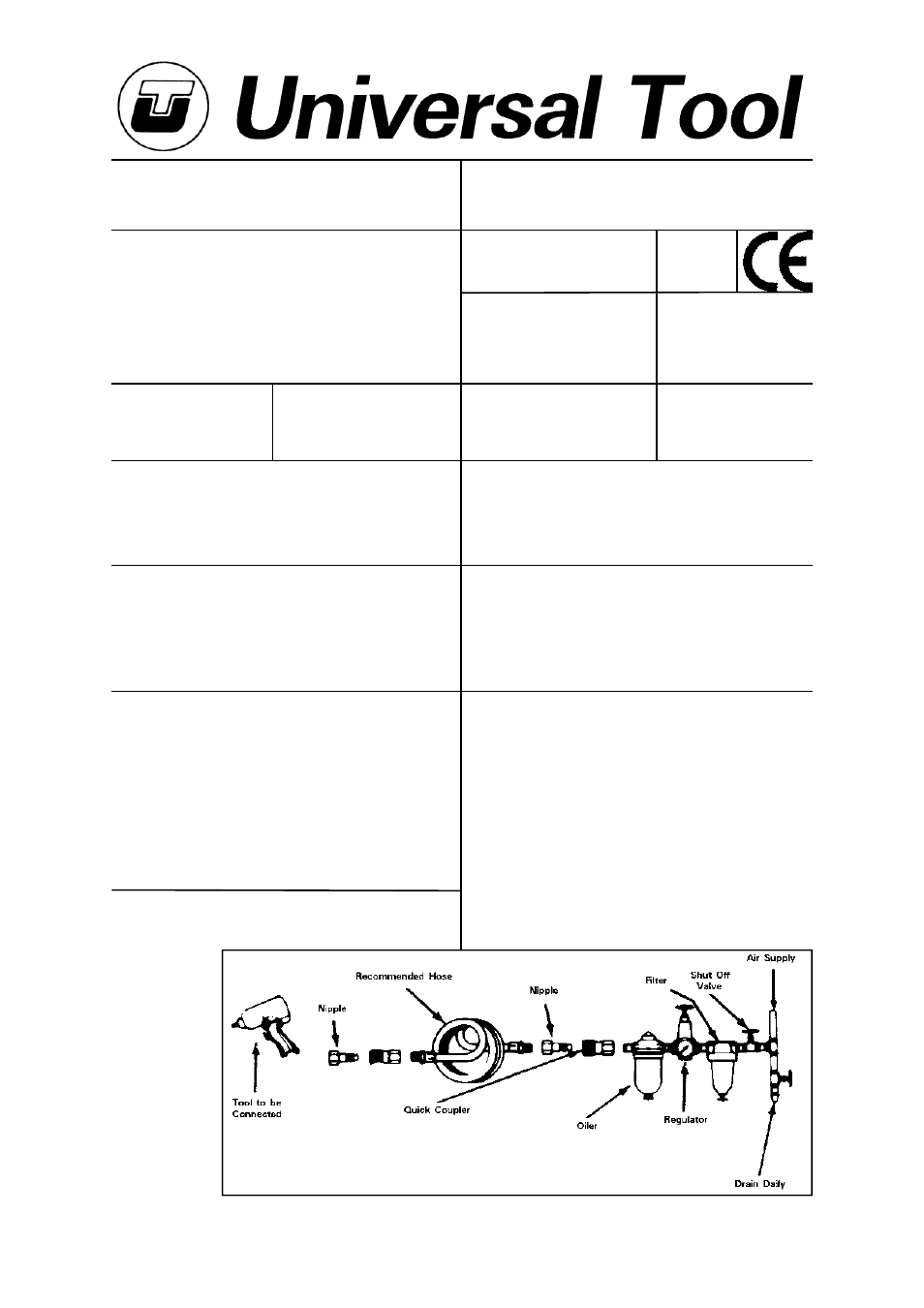

recommended that the tool is connected to the air supply as shown in
figure 1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve. The air
supply should be lubricated. It is strongly recommended that an air filter,
regulator, lubricator (FRL) is used as shown in Figure 1 as this will supply
clean, lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equipment is not
used then the tool should be lubricated by shutting off the air supply to
the tool, depressurising the line by pressing the trigger on the tool.
Disconnect the air line and pour into the intake bushing a teaspoonful
Work Stations
The tool should only be used as a handheld hand operated tool. It is
always
recom-
mended that the
tool is used when
standing on the solid
floor. It can be used
in other positions
but before any such
use, the operator
must be in a secure
position having a
firm grip and footing
and be aware that
the drill can develop
a torque reaction
see
section
"Operating".
No
Page No 1
5/8” Reversible Straight
Drill
3/8 10 30 10
1,000
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Operator Instructions Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
lbs
Kg 10.14
4.6
Noise Level Sound Pressure Level 90.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standard 8662/1
12.0 Metres / Sec²
Personal Safety Equipment
Use - Safety Glasses Yes
Use - Safety Gloves Yes
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Yes
Air Pressure
Recommended Working 6.3 bar 90 PSI
Recommended Minimum n/a bar n/a PSI
Maximum 7.0 bar 10.0 PSI
HP17RD
