Universal Air Tools UT8807B-1/2 - Manual (Page 3)

UT8807B

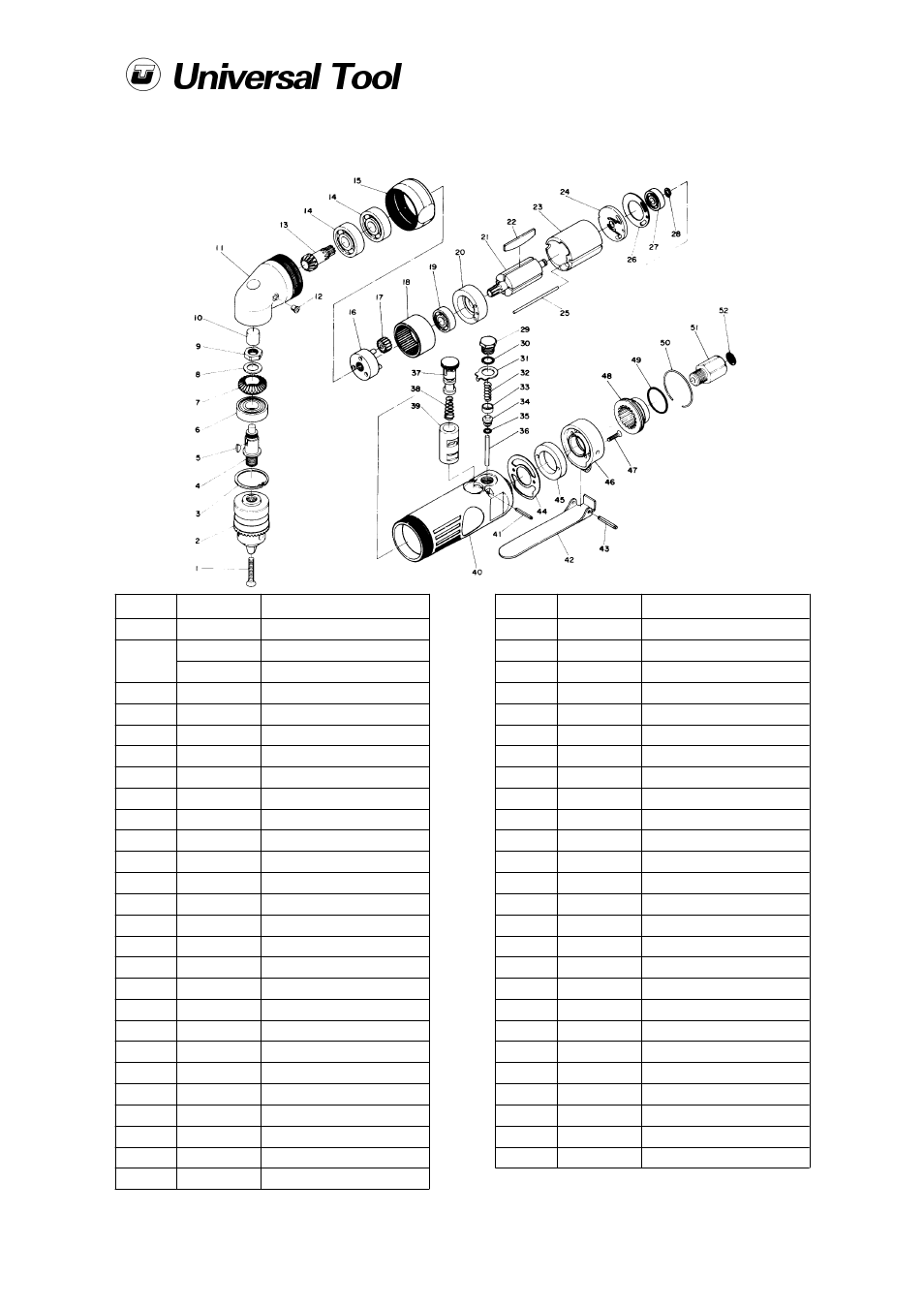

UT8807B-1/2 3/8" Capacity Angle Drill
1/2" Capacity Angle Drill
Page No 3 Apr 1999 Ver 1.2
Ref No Part No Description
1 900418 Chuck Screw
2
H0019 Chuck 3/8" Capacity
H0020 Chuck 1/2" Capacity
3 722001 Retaining Ring
4 900419 Spindle
5 900420 Key
6 732229 Ball Bearing
7 900421 Bevel Gear
8 900422 Washer
9 900423 Nut
10 731956 Needle Bearing
11 900424 Angle Head
12 900390 Grease Plug
13 900425 Pinion Gear
14 732191 Ball Bearing (2)
15 900426 Lock Ring
16 732446 Planet Gear w/Pin
17 731038 Idler Gear (3)
18 900427 Internal Gear
19 729188 Ball Bearing
20 900428 Front Plate
21 900429 Rotor
22 729709 Rotor Blade (4)
23 900104 Cylinder
24 900102 Rear End Plate
25 900105 Cylinder Pin
26 900113 Motor Gasket
Ref No Part No Description
27 729012 Ball Bearing
28 729180 Retaining Ring
29 900208 Valve Screw
30 729088 O-Ring
31 900200 Reverse Retainer
32 729063 Valve Spring
33 729043 O-Ring Retainer
34 731998 Valve
35 1008173 O-Ring
36 900193 Valve Pin
37 900194 Reverse Valve
38 900199 Reverse Spring
39 900195 Reverse Bush
40 900430 Motor Housing
41 731930 Roll Pin
42 900192 Throttle Lever
43 729167 Lever Pin
44 900198 Gasket
45 900209 Muffler
46 900197 Body Cap
47 900206 Screw (2)
48 729702 Deflector
49 1012371 O-Ring
50 729703 Deflector Retainer
51 900196 Inlet Bushing
