UT5825

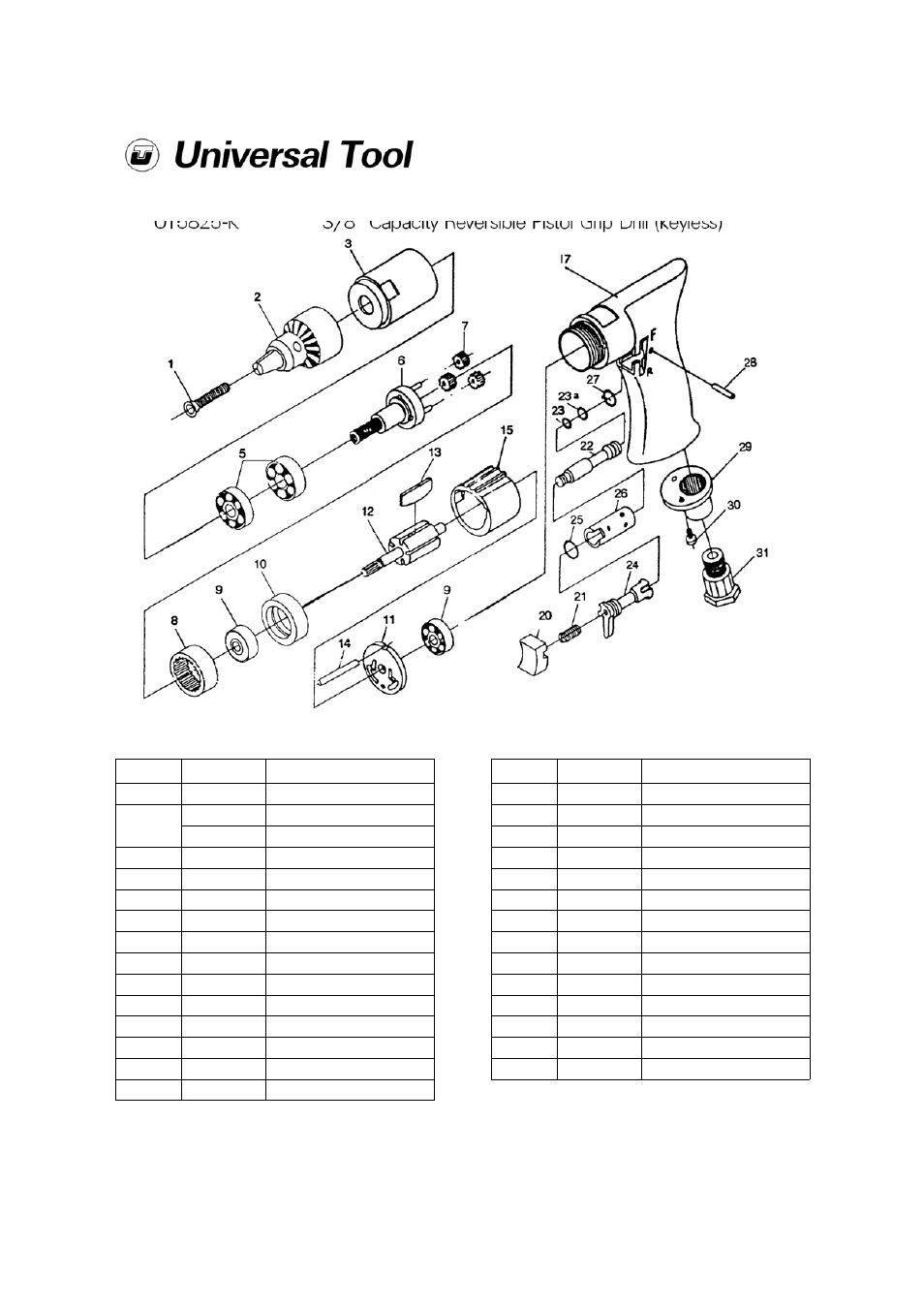

UT5825-K 3/8” Capacity Reversible Pistol Grip Drill
3/8” Capacity Reversible Pistol Grip Drill (keyless)
Page No 3 Dec 2006 Ver 1.40
Ref No Part No Description
1 6120001 Screw
2
H0019 Drill Chuck
H0019K Keyless Drill Chuck
3 6120003 Gear Housing
5 6120005 Ball Bearing (2)
6 6120006 Planet Carrier
7 6120007 Planet Gear (3)
8 6120008 Internal Gear
9 6120009 Ball Bearing (2)
10 6120010 Bearing Case
11 6120011 End Plate (2)
12 6120012 Rotor
13 6120013 Rotor Blade (4)
14 6120014 Motor pin
15 6120015 Cylinder
Ref No Part No Description
17 6120017 Motor Housing
20 6120020 Trigger
21 6120021 Valve Spring
22 6120022 Throttle Valve
23 6120023 O-Ring
23A 6120023A O-Ring
24 6120024 Reverse Valve
25 6120025 O-Ring
26 6120026 Reverse Valve Bush
27 6120027 O-Ring
28 6120028 Pin
29 6120029 Exhaust Deflector
30 6120030 Screw (2)
31 6120031 Air Inlet
